Backup Lamp

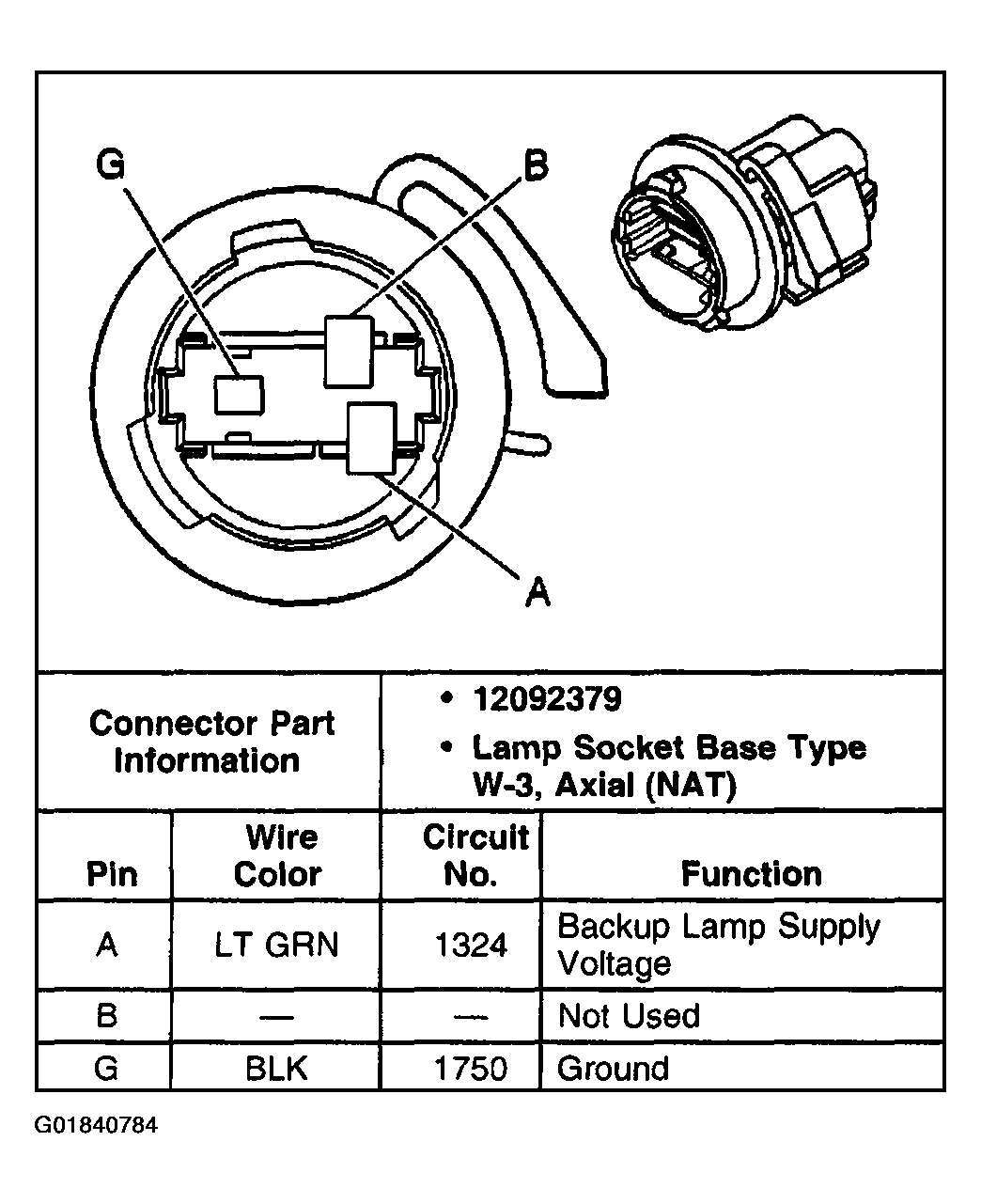

Fig 1: Backup Lamp - Left (Pickup)
G01840784Courtesy of GENERAL MOTORS CORP.
Fig 2: Backup Lamp - Right (Pickup)
G01840785Courtesy of GENERAL MOTORS CORP.

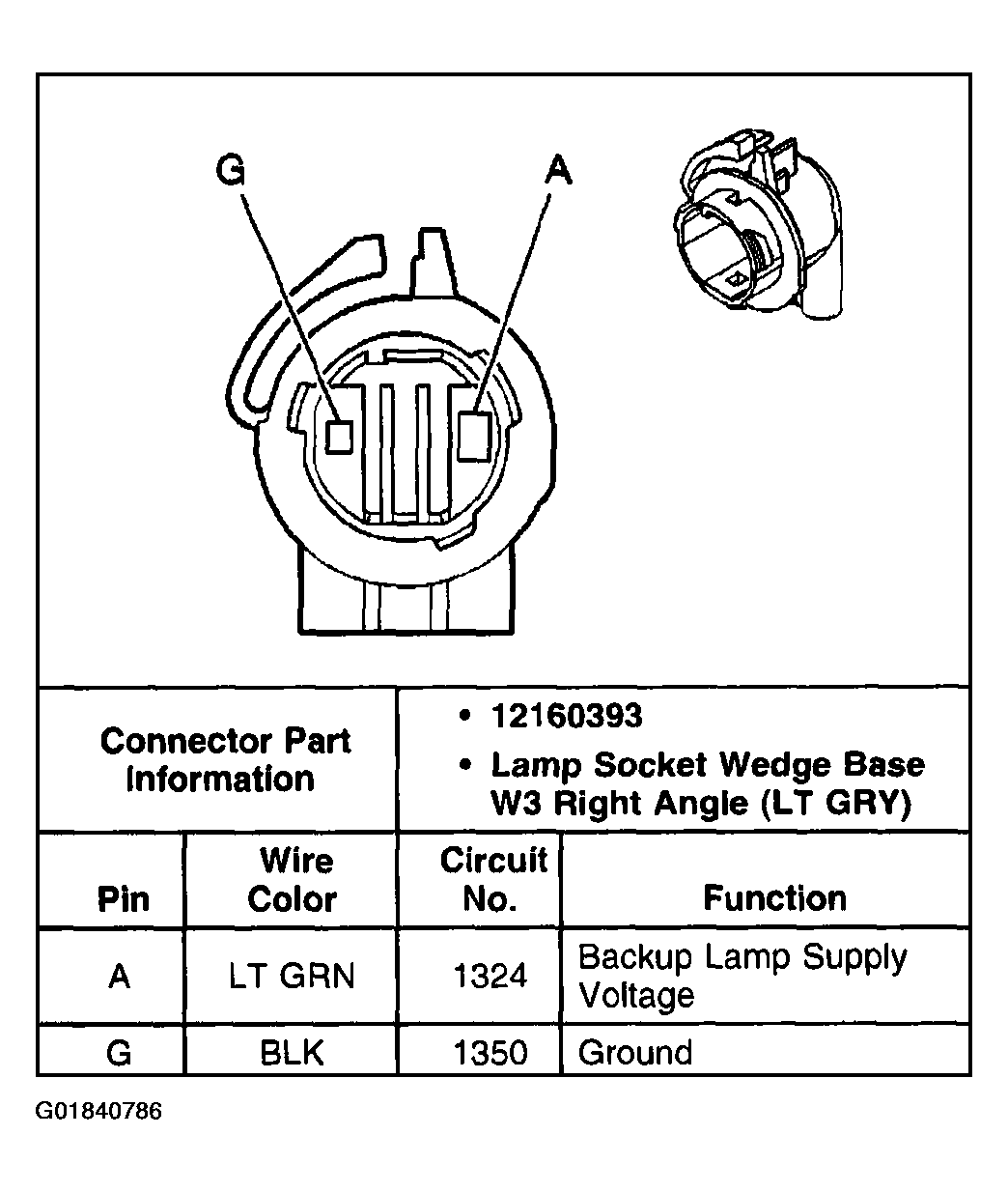

Fig 3: Backup Lamp - Left/Right (Utility)
G01840786Courtesy of GENERAL MOTORS CORP.
