Rear Lamps

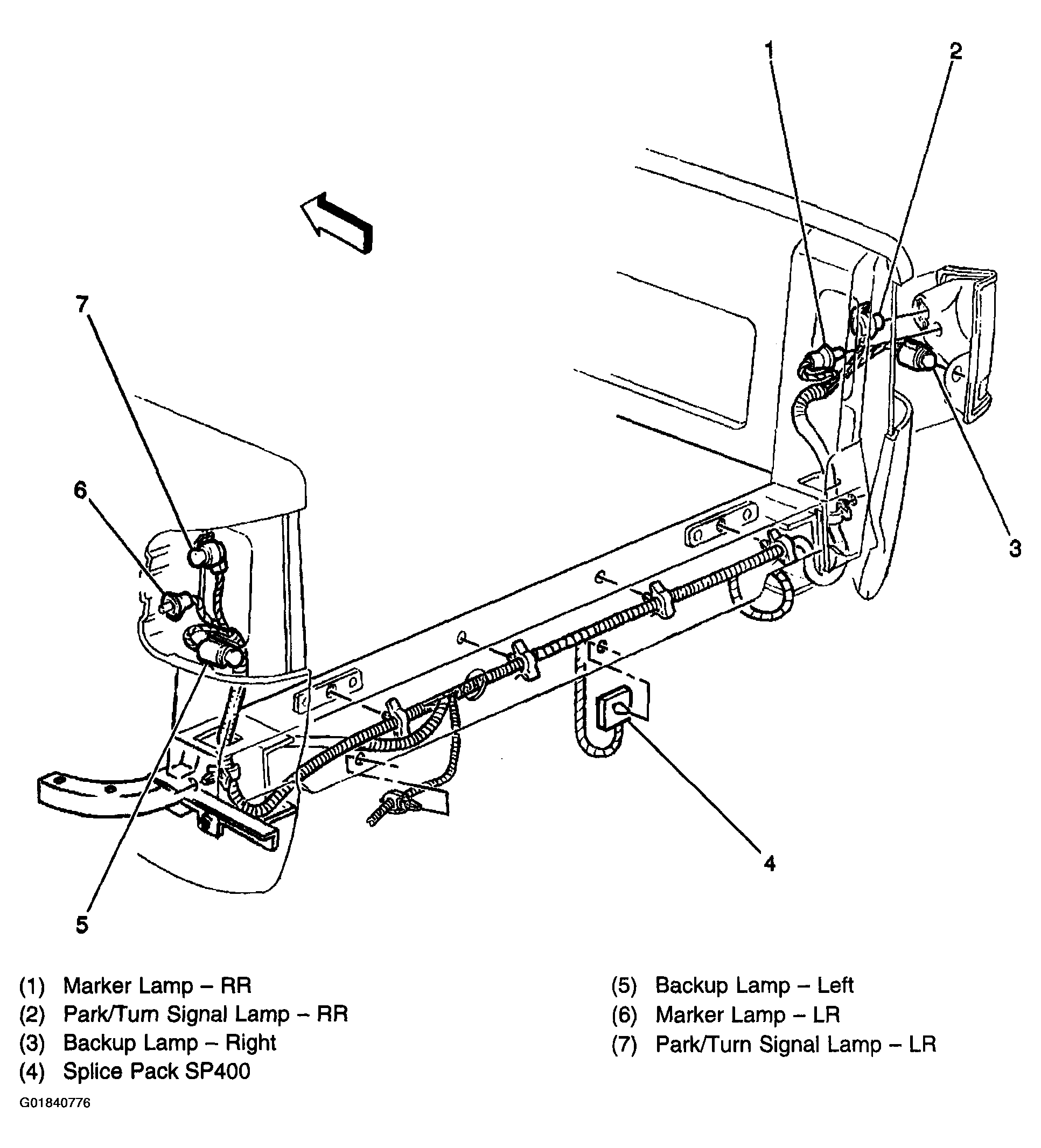

Fig 1: Rear Lamps Connection (Pickup)
G01840776Courtesy of GENERAL MOTORS CORP.

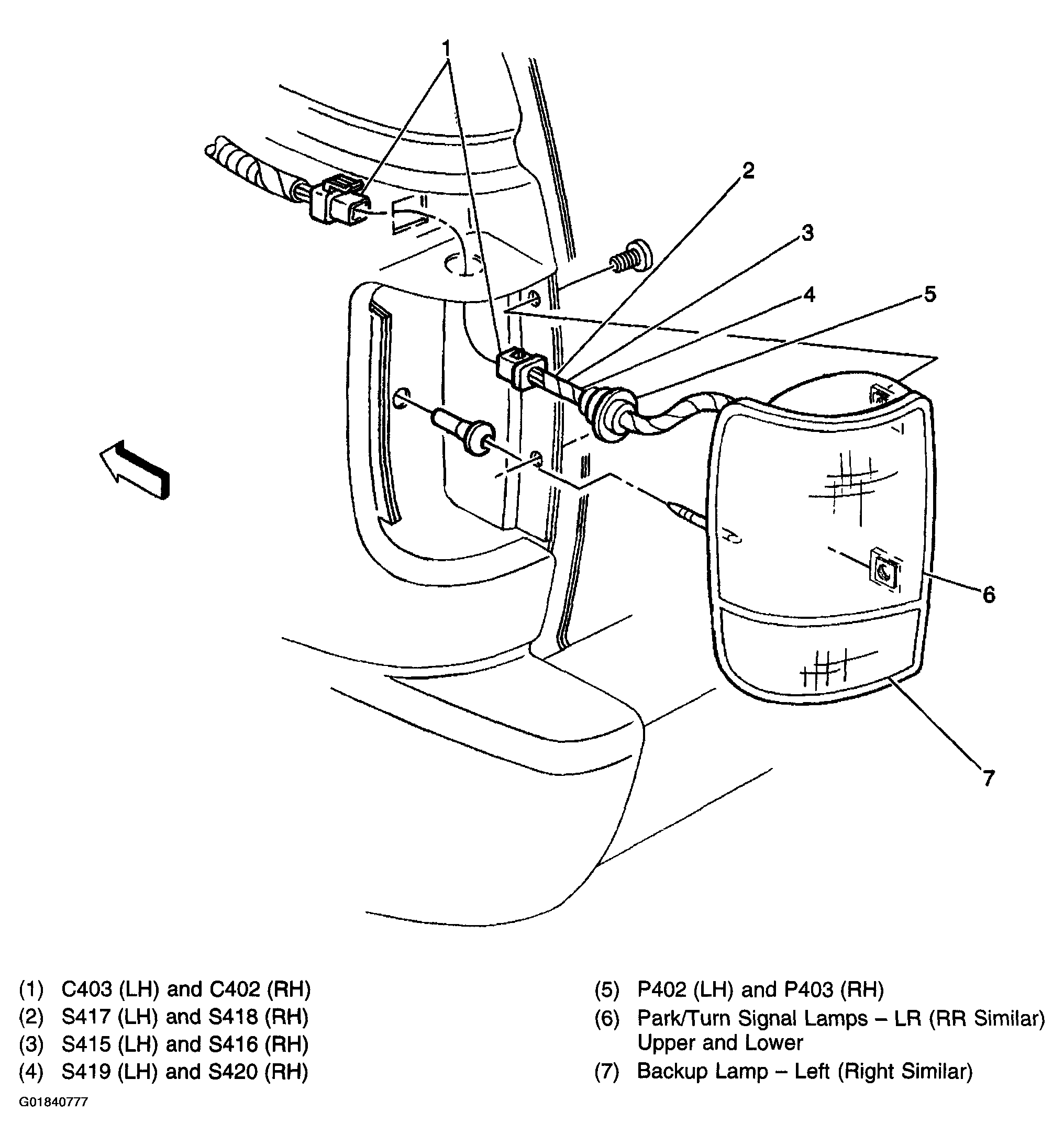

Fig 2: Rear Lamps Connection - Left Side Shown; Right Side Similar (Utility)
G01840777Courtesy of GENERAL MOTORS CORP.

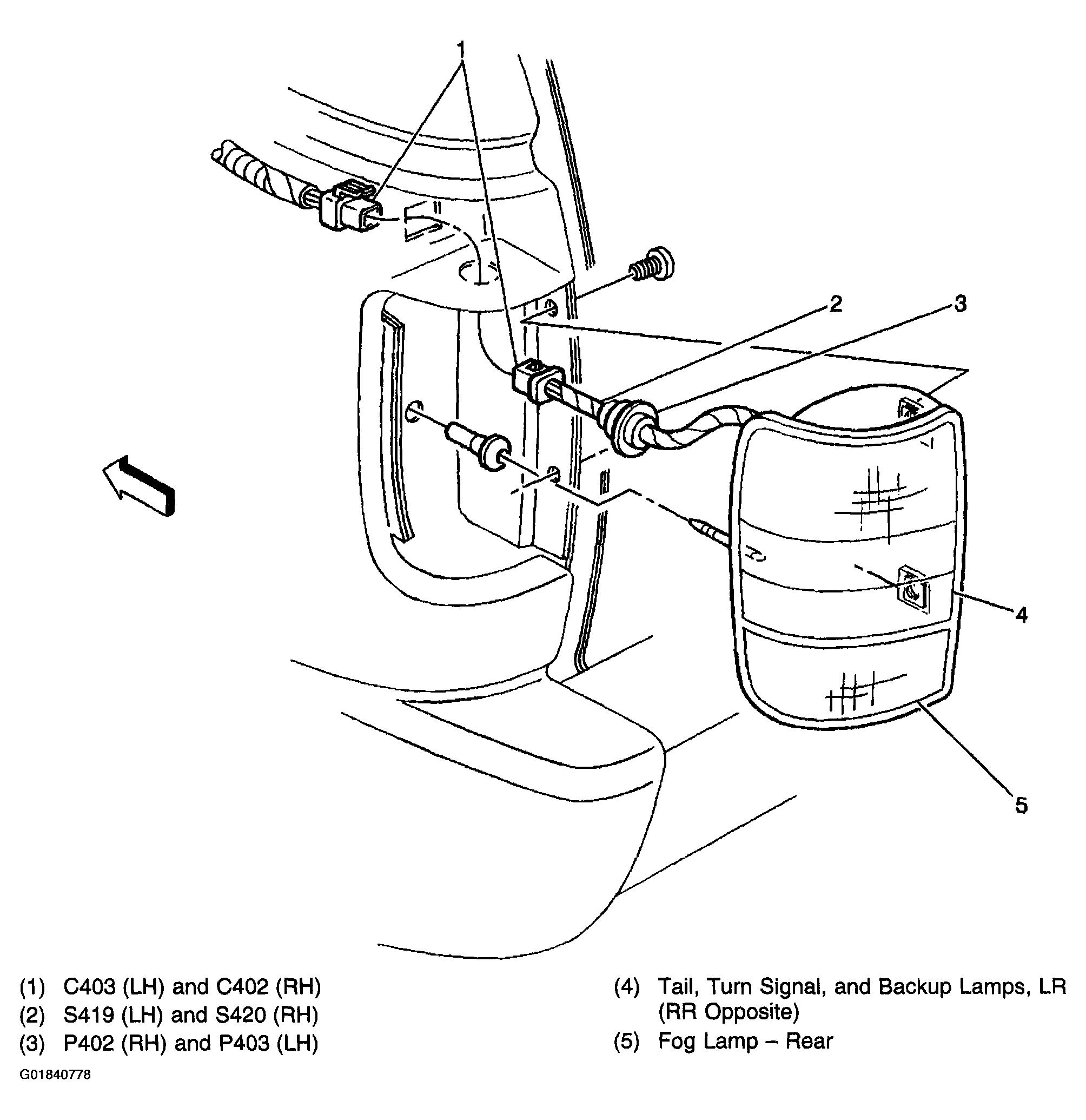

Fig 3: Rear Lamp Connections (Export)
G01840778Courtesy of GENERAL MOTORS CORP.
