License Lamp Wiring

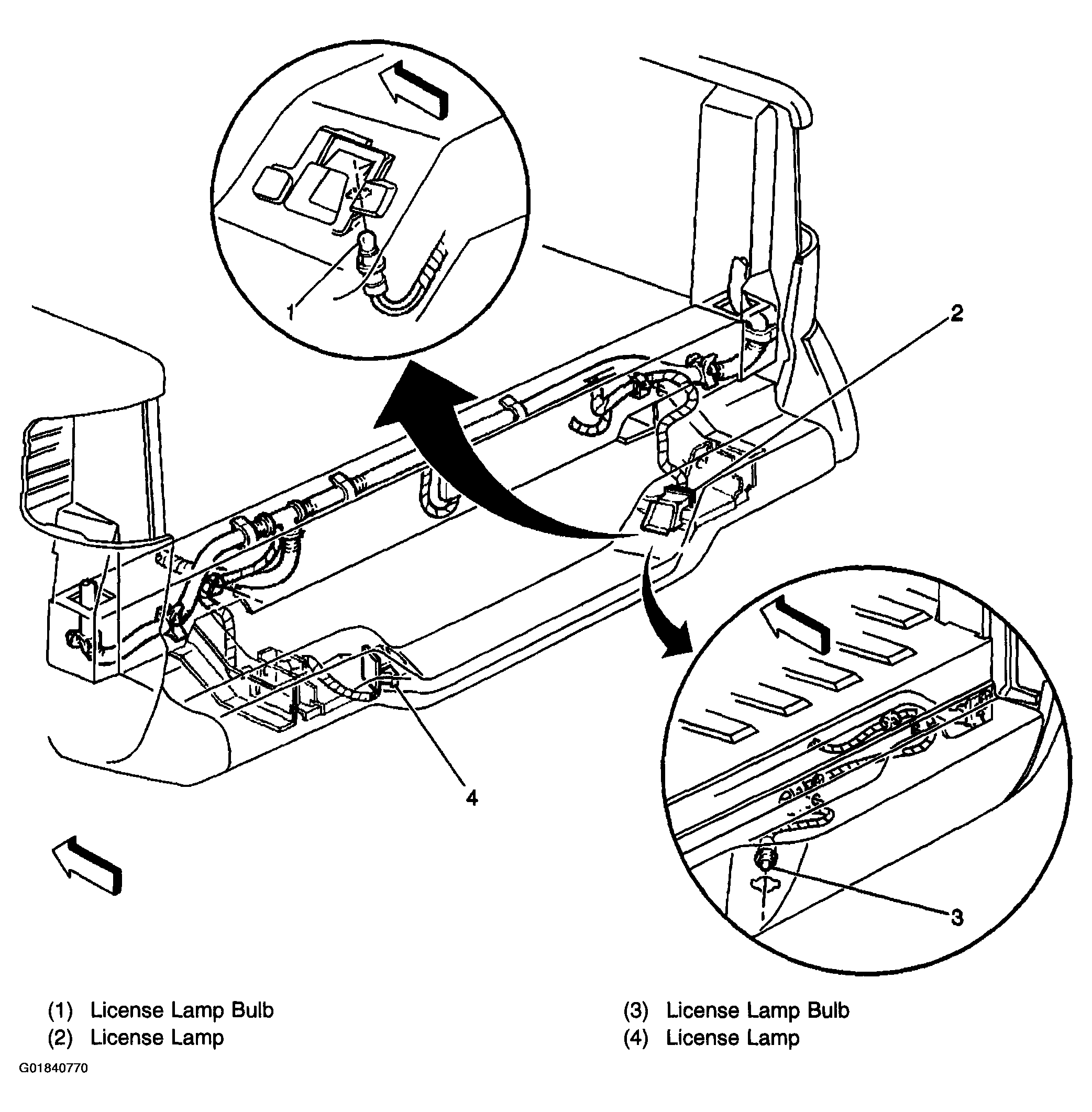

Fig 1: License Lamp Wiring (Fleetside Pickup)
G01840770Courtesy of GENERAL MOTORS CORP.

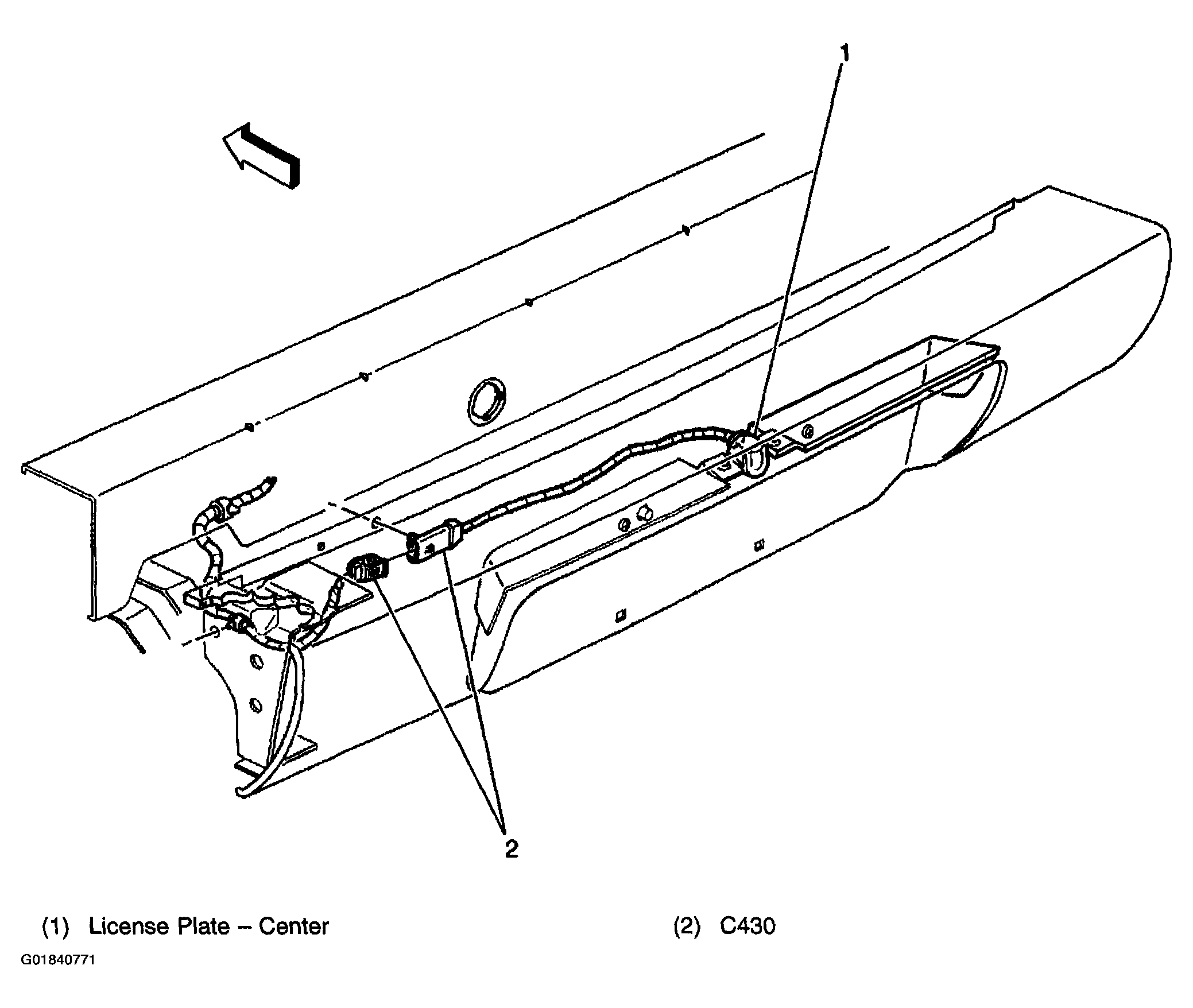

Fig 2: License Lamp Wiring (Sportside Pickup)
G01840771Courtesy of GENERAL MOTORS CORP.

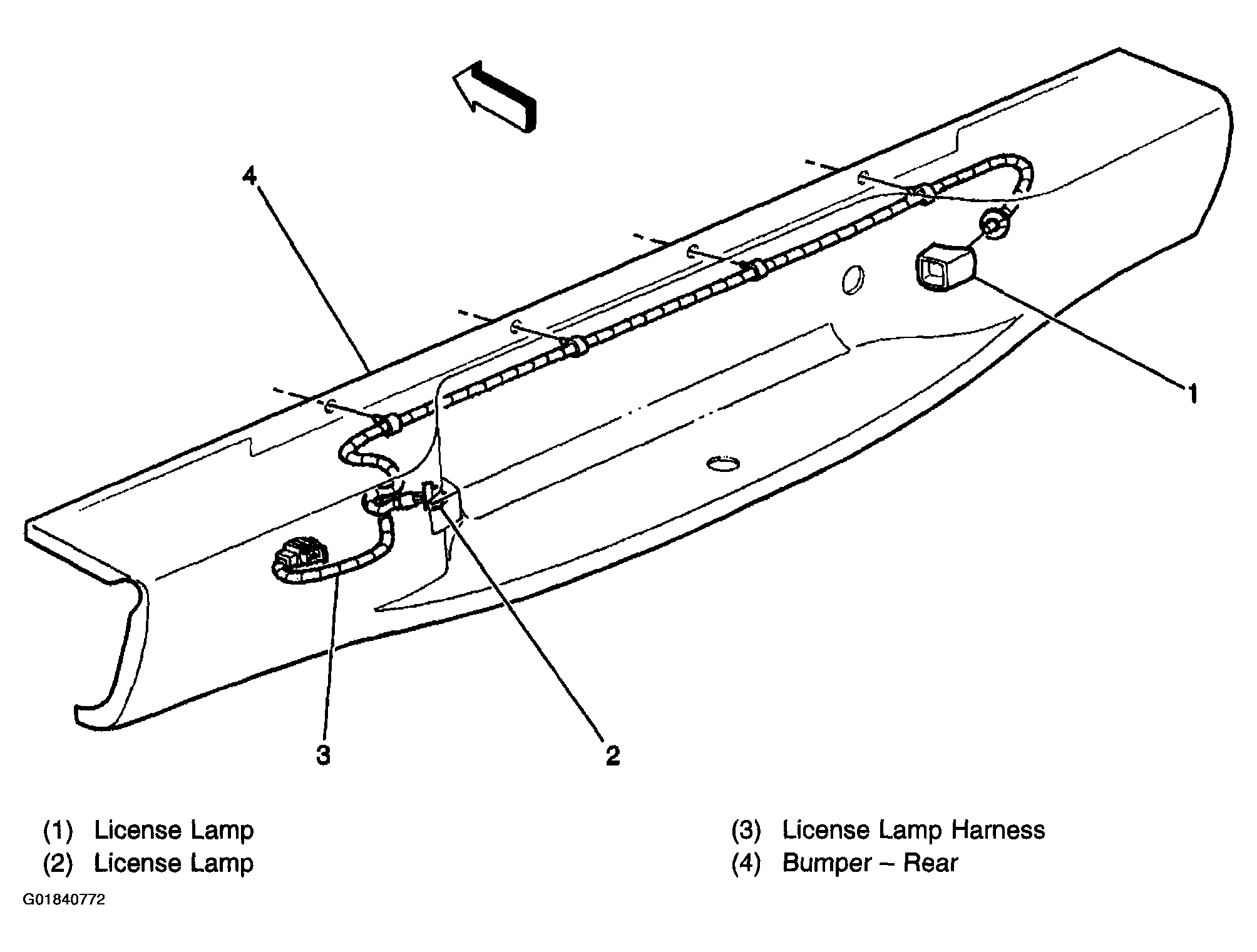

Fig 3: License Lamp Wiring (Utility)
G01840772Courtesy of GENERAL MOTORS CORP.

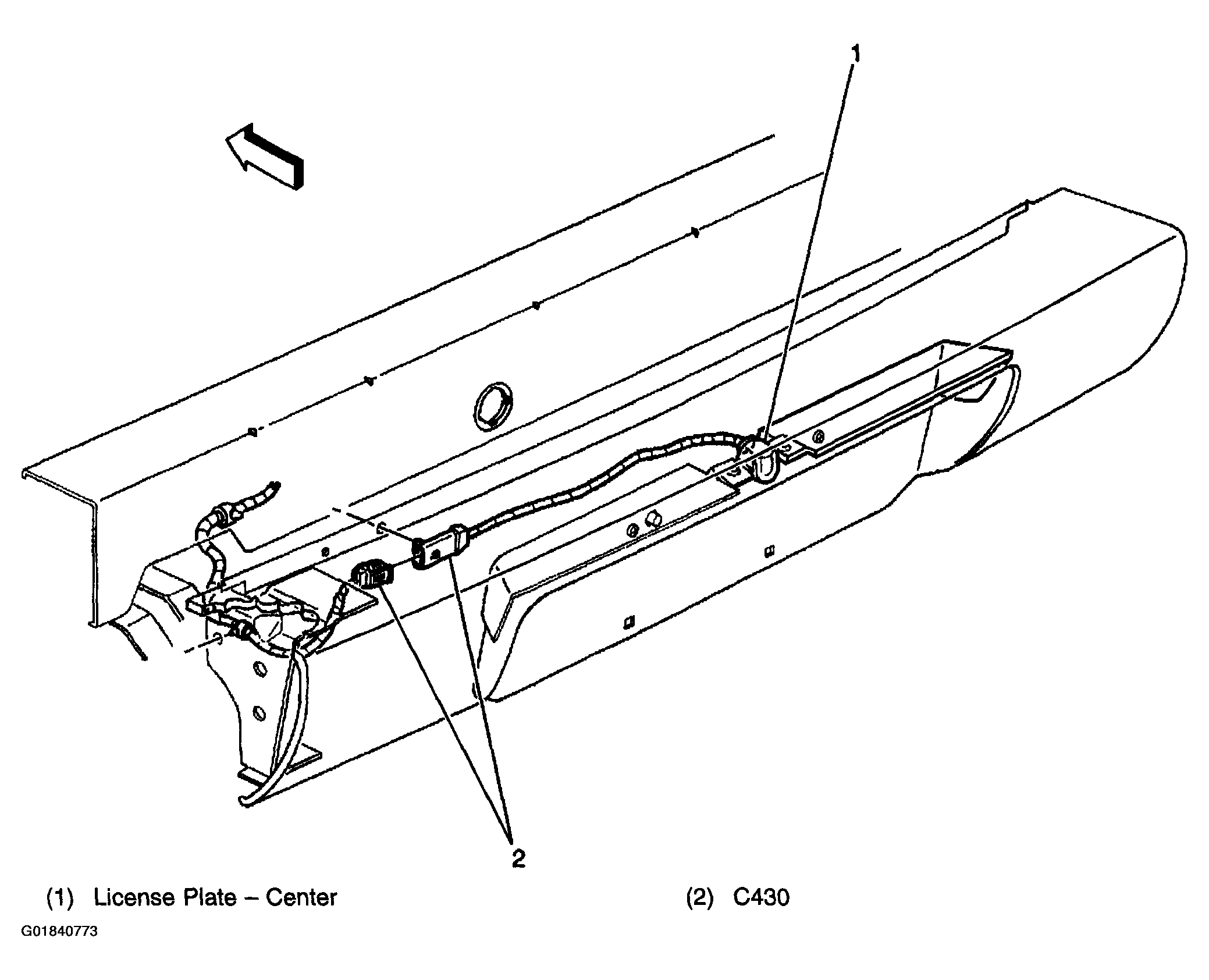

Fig 4: License Lamp Wiring (Sportside Pickup)
G01840773Courtesy of GENERAL MOTORS CORP.
