Lighting Systems Component Views
>>
Instrument Panel
Instrument Panel

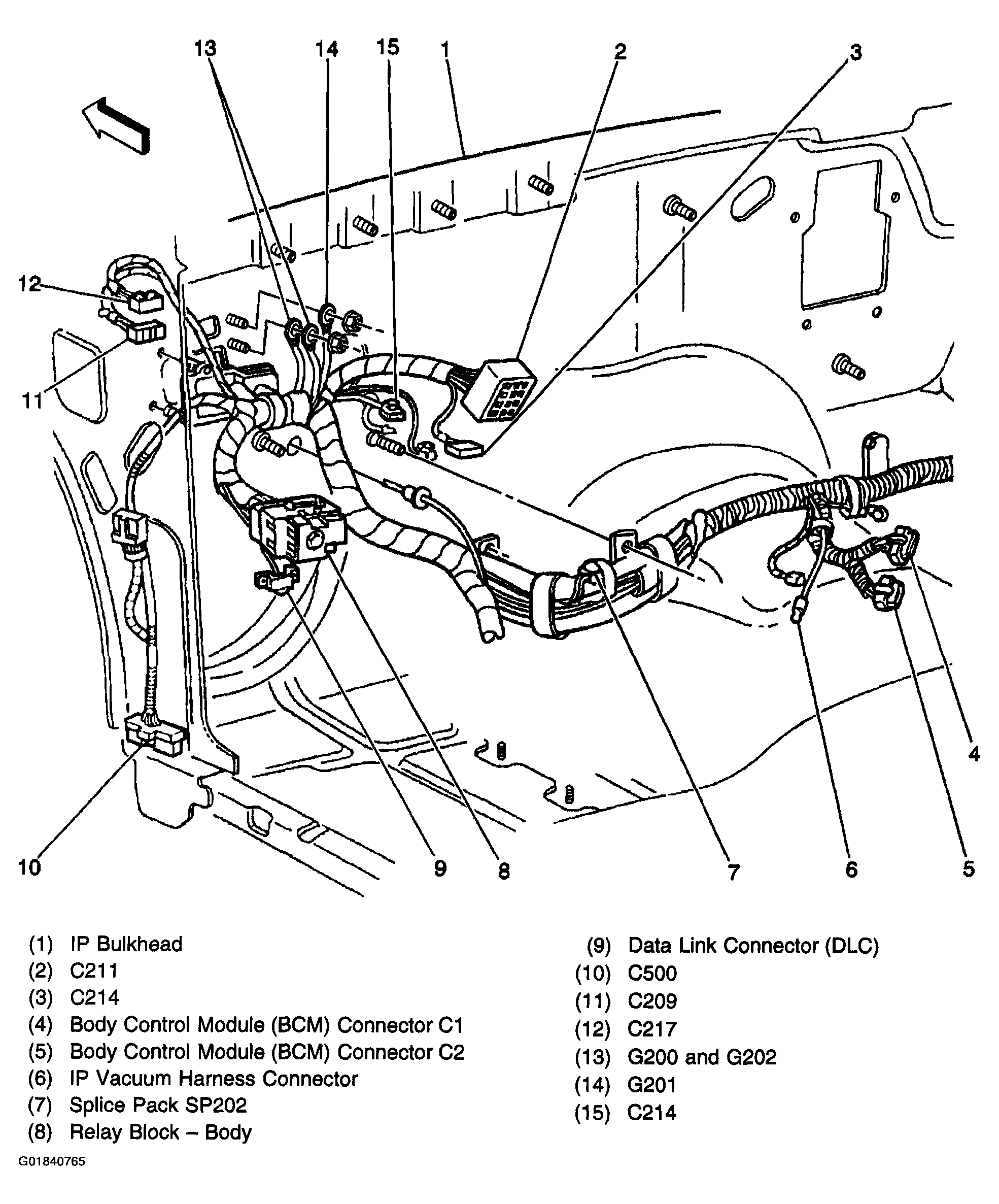

Fig 1: Instrument Panel (Left Front)
Courtesy of GENERAL MOTORS CORP.

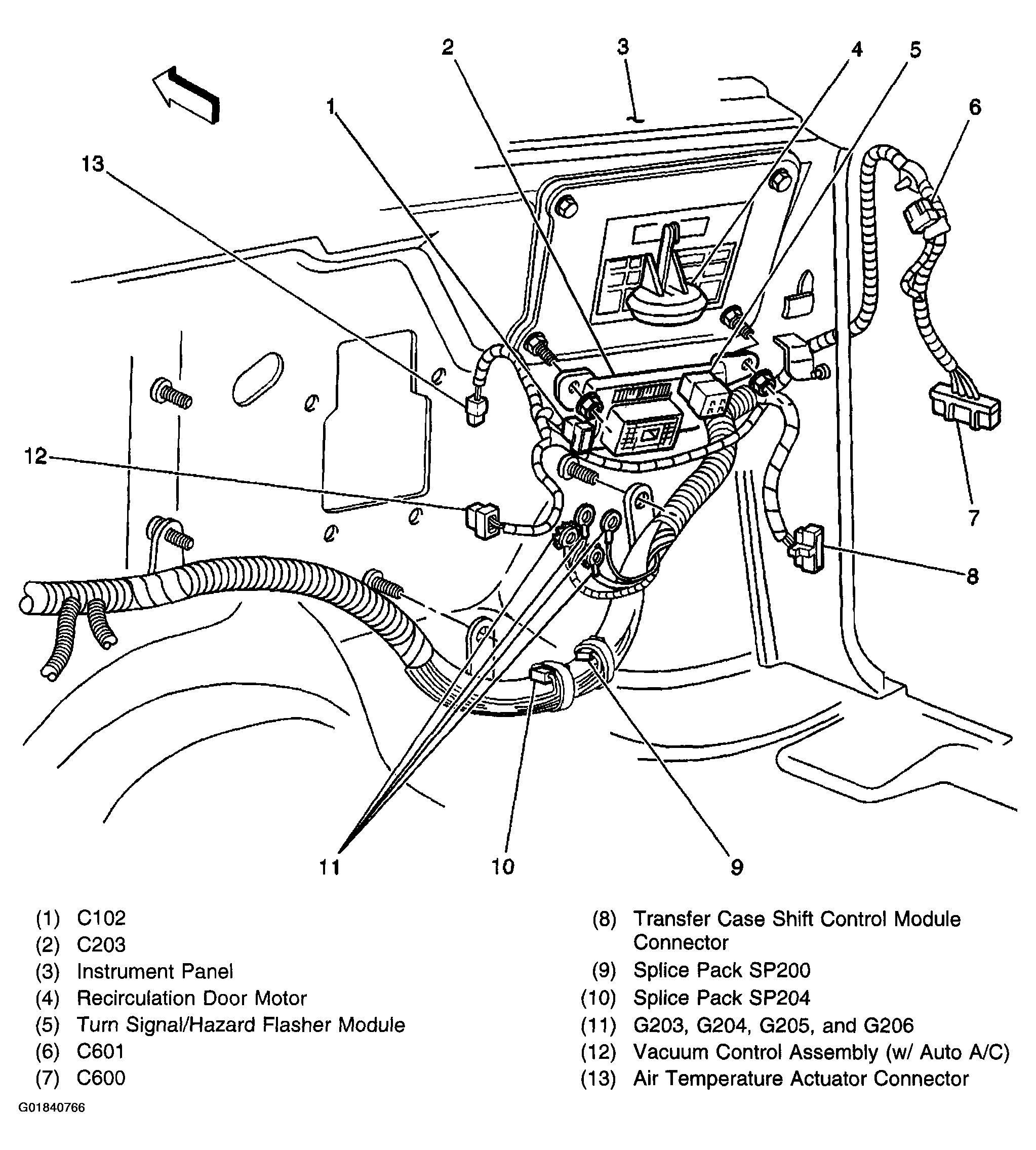

Fig 2: Instrument Panel (Right Front)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
