Instrument Panel Wiring Harness Composite View (w/ Auto A/C)
Instrument Panel Wiring Harness Composite View (w/ Auto A/C)

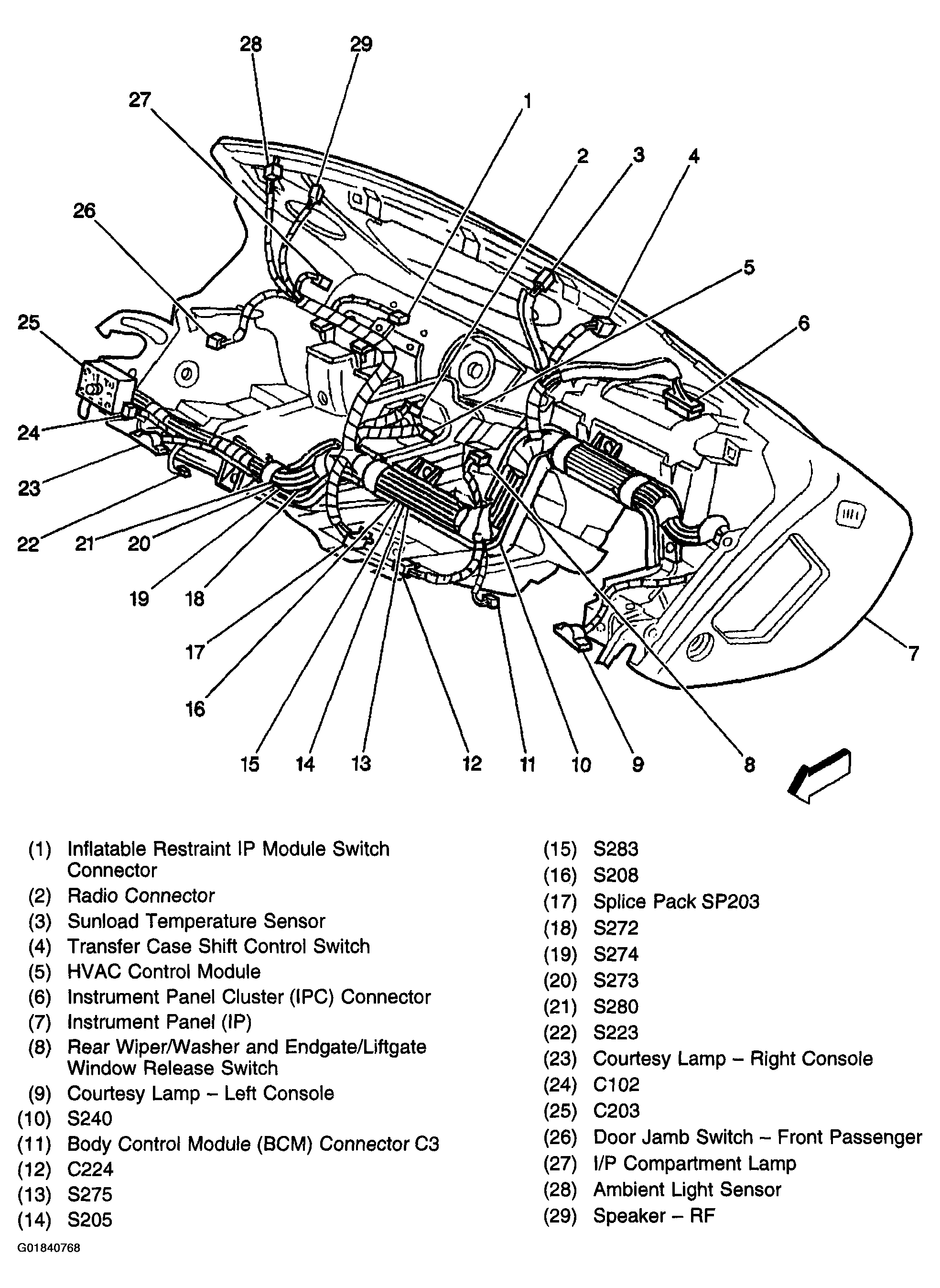

Fig 1: Instrument Panel Wiring Harness Composite View (w/ Auto A/C)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
