Forward Lamps Wiring Harness

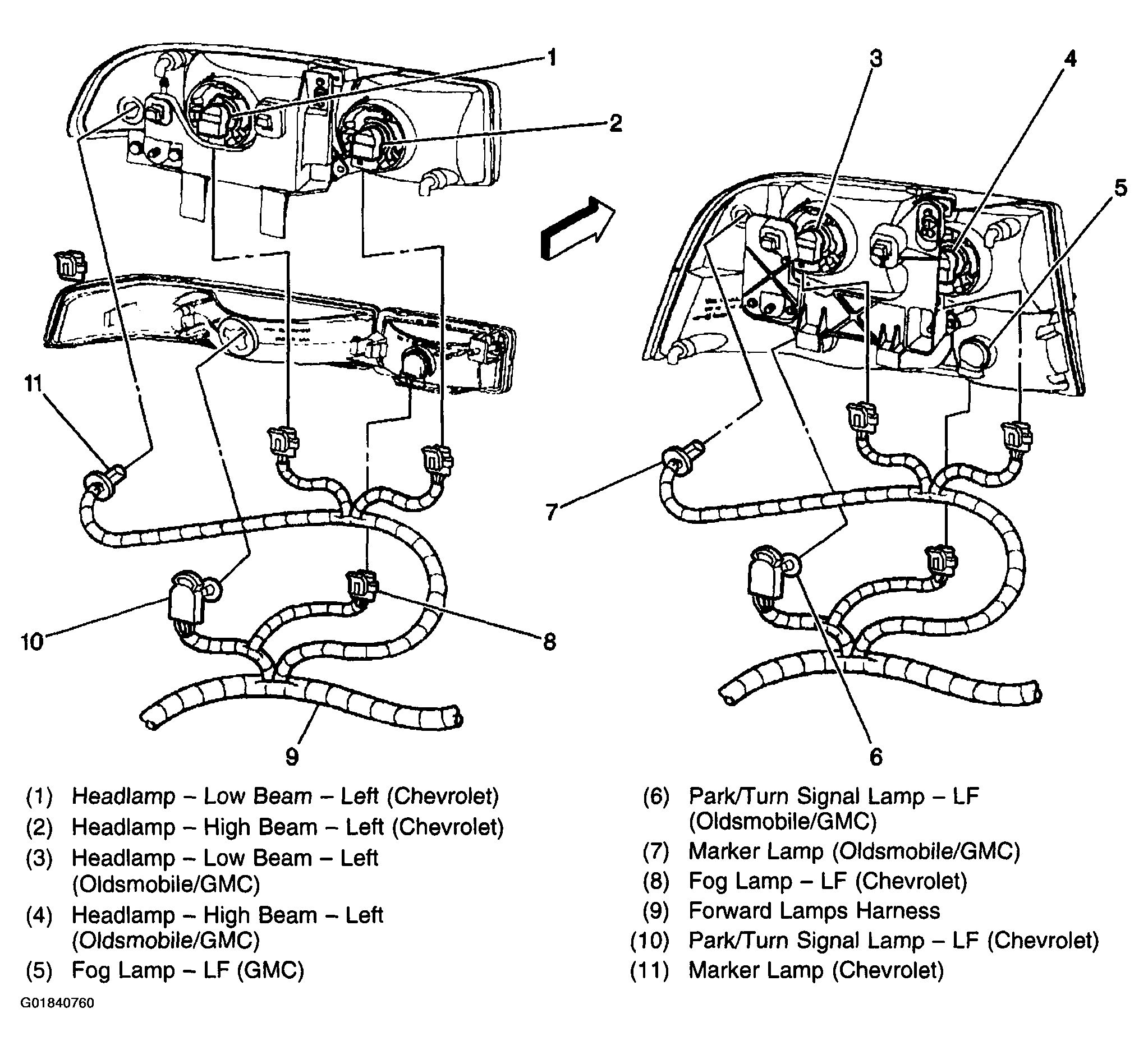

Fig 1: Forward Lamps Wiring Harness (Left Shown; Right Opposite)
G01840760Courtesy of GENERAL MOTORS CORP.

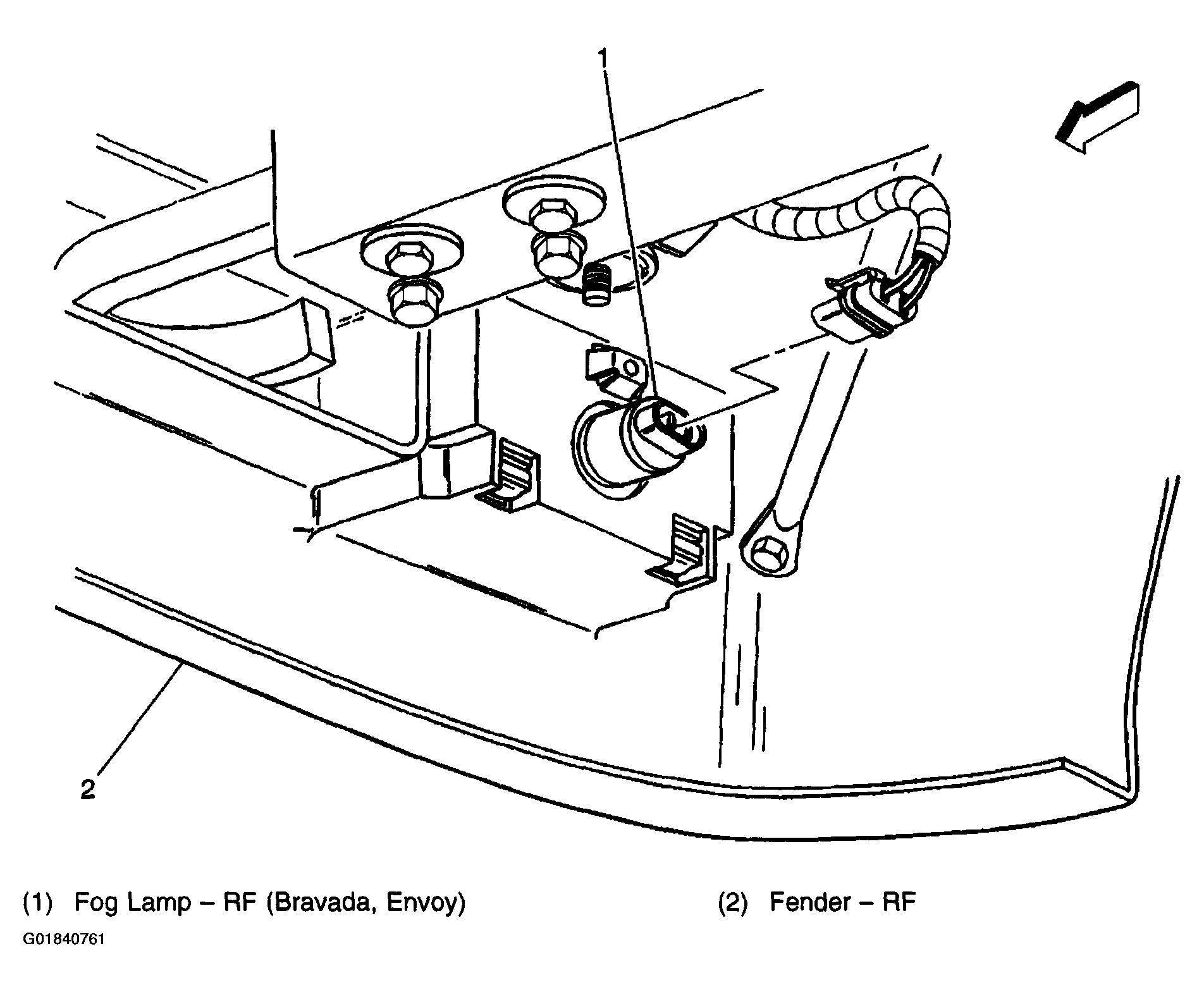

Fig 2: Forward Lamps Wiring Harness Foglamps (Right Front Shown; Left Front Opposite)
G01840761Courtesy of GENERAL MOTORS CORP.
