Dome Lamp Harness w/o Driver Information Center

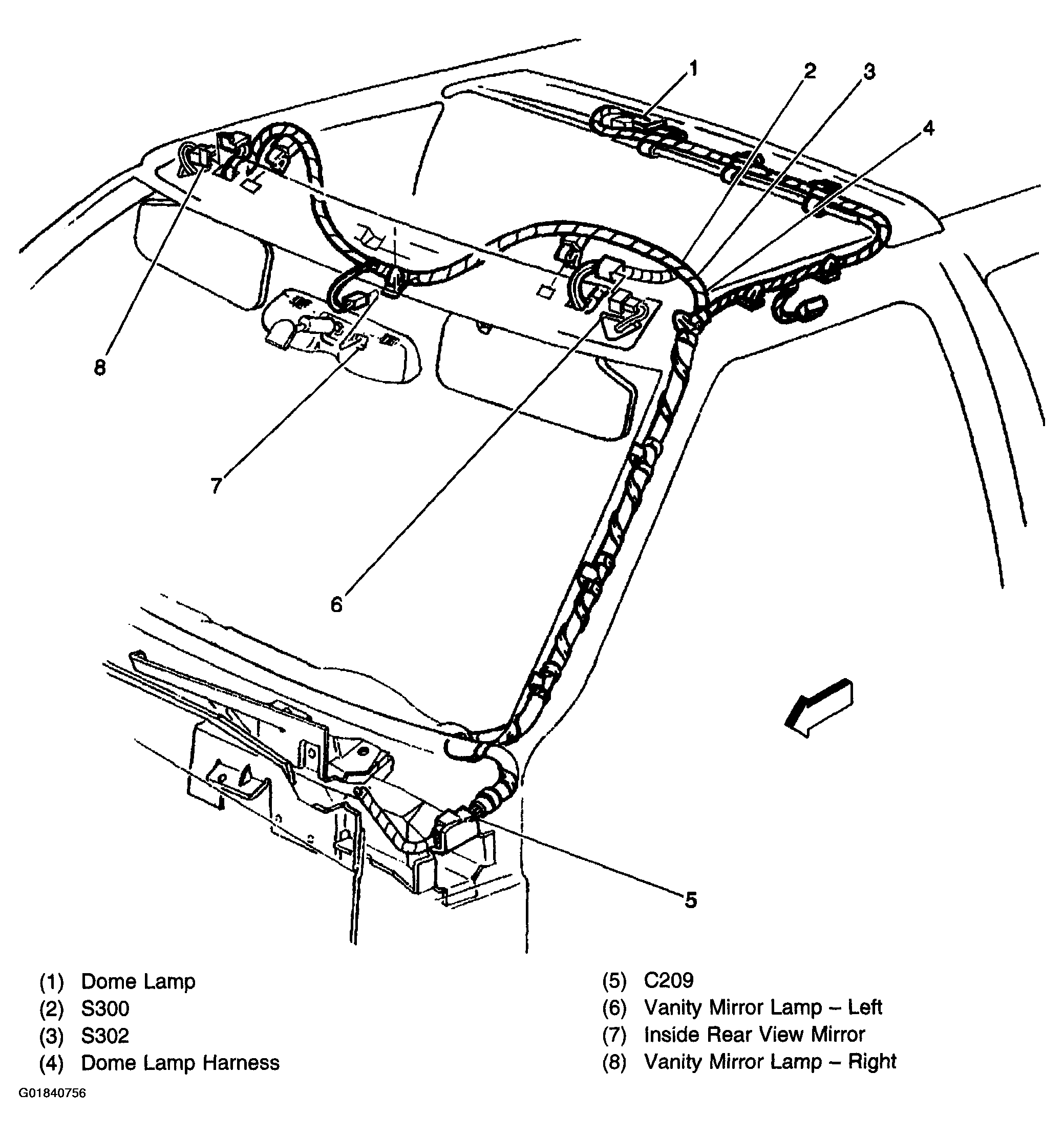

Fig 1: Dome Lamp Harness w/o Driver Information Center (DIC) (Utility)

G01840756

Courtesy of GENERAL MOTORS CORP.
