Radio/Audio System Schematics

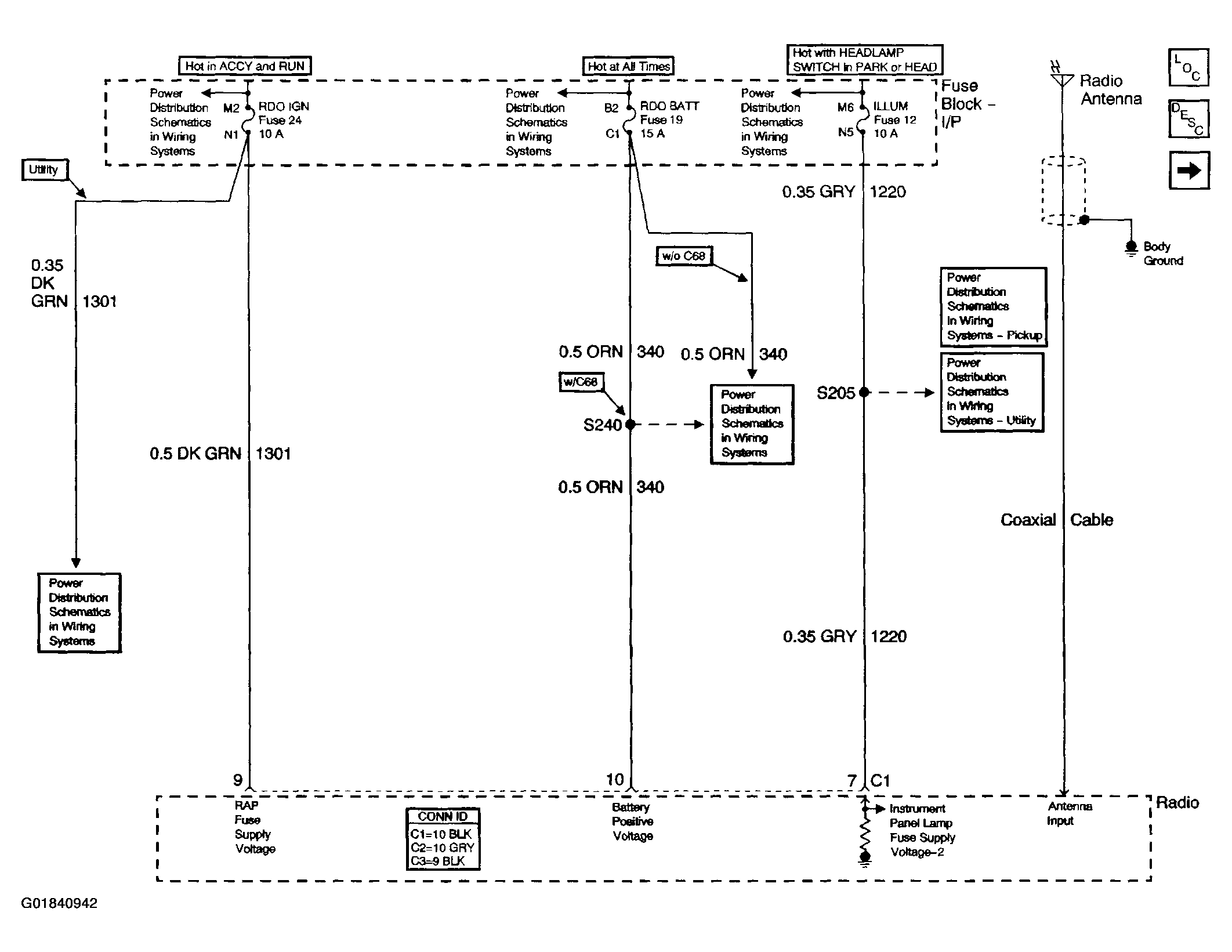

Fig 1: Radio/Audio System Schematics (Power)

Courtesy of GENERAL MOTORS CORP.

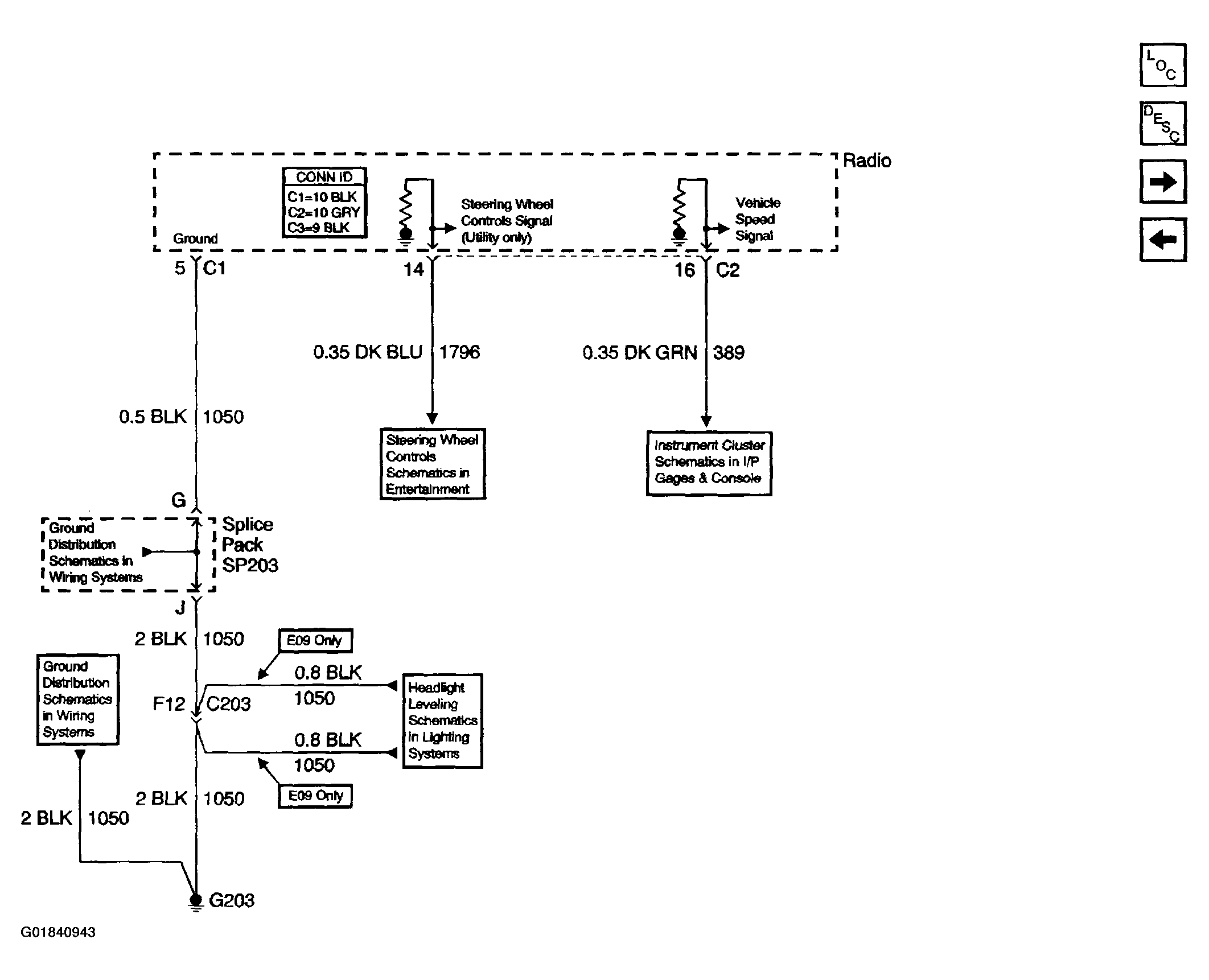

Fig 2: Radio/Audio System Schematics (Ground)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Radio/Audio System Schematics (BCM)

Courtesy of GENERAL MOTORS CORP.

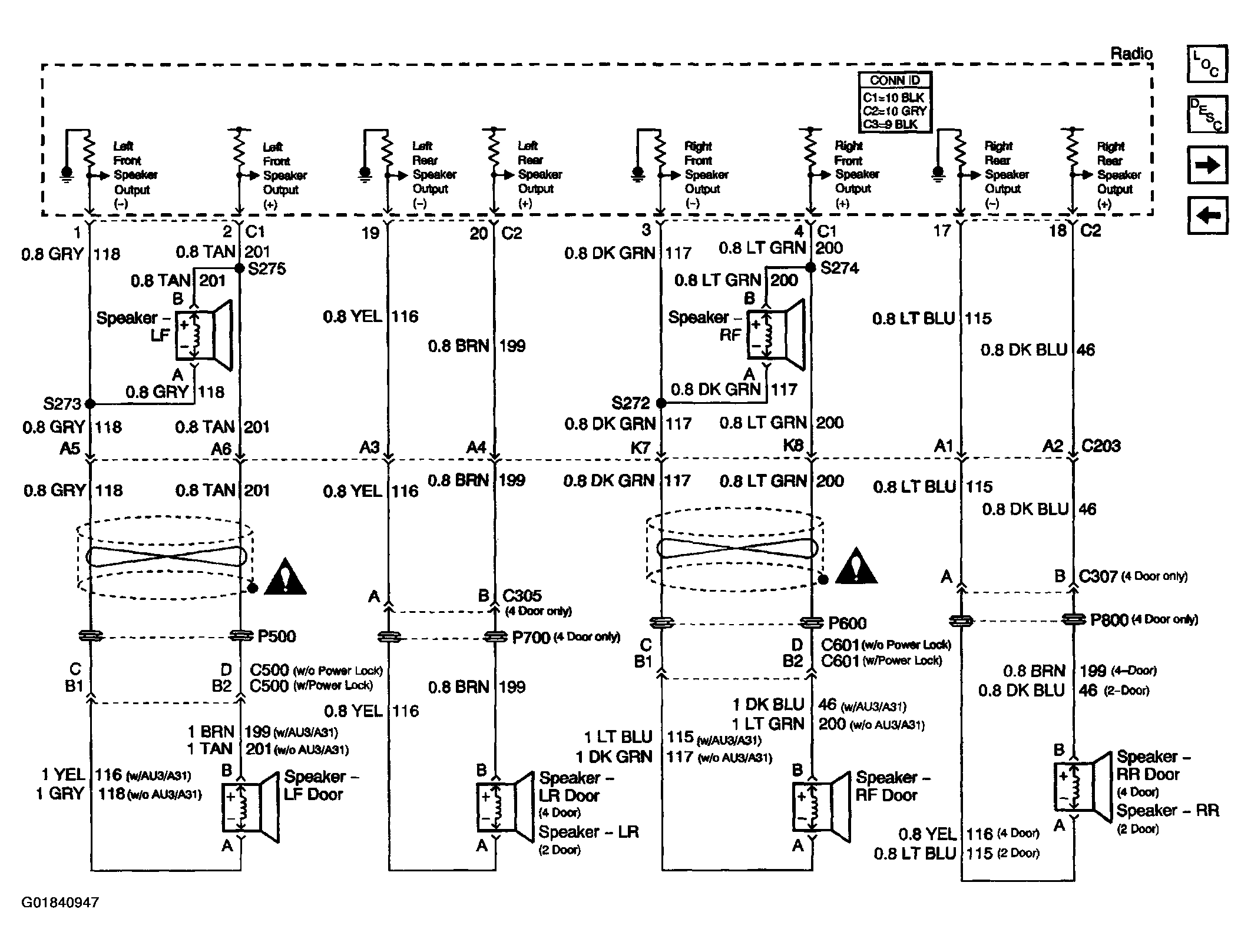

Fig 4: Radio/Audio System Schematics (Speakers - Regular Cab & Extended Cab w/ 3rd Door)

Courtesy of GENERAL MOTORS CORP.

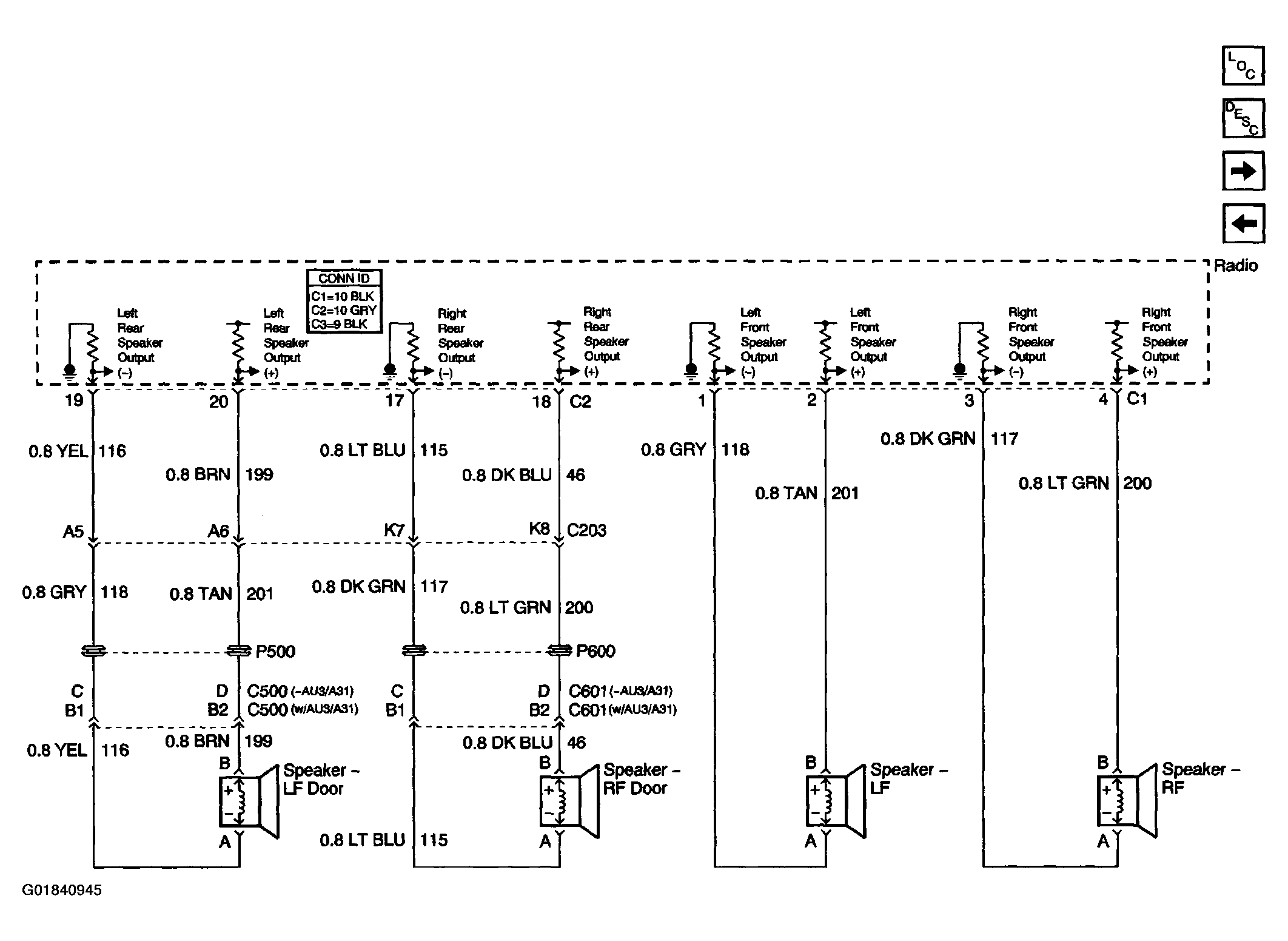

Fig 5: Radio/Audio System Schematics (Speakers -Extended Cab w/o 3rd Door)

Courtesy of GENERAL MOTORS CORP.

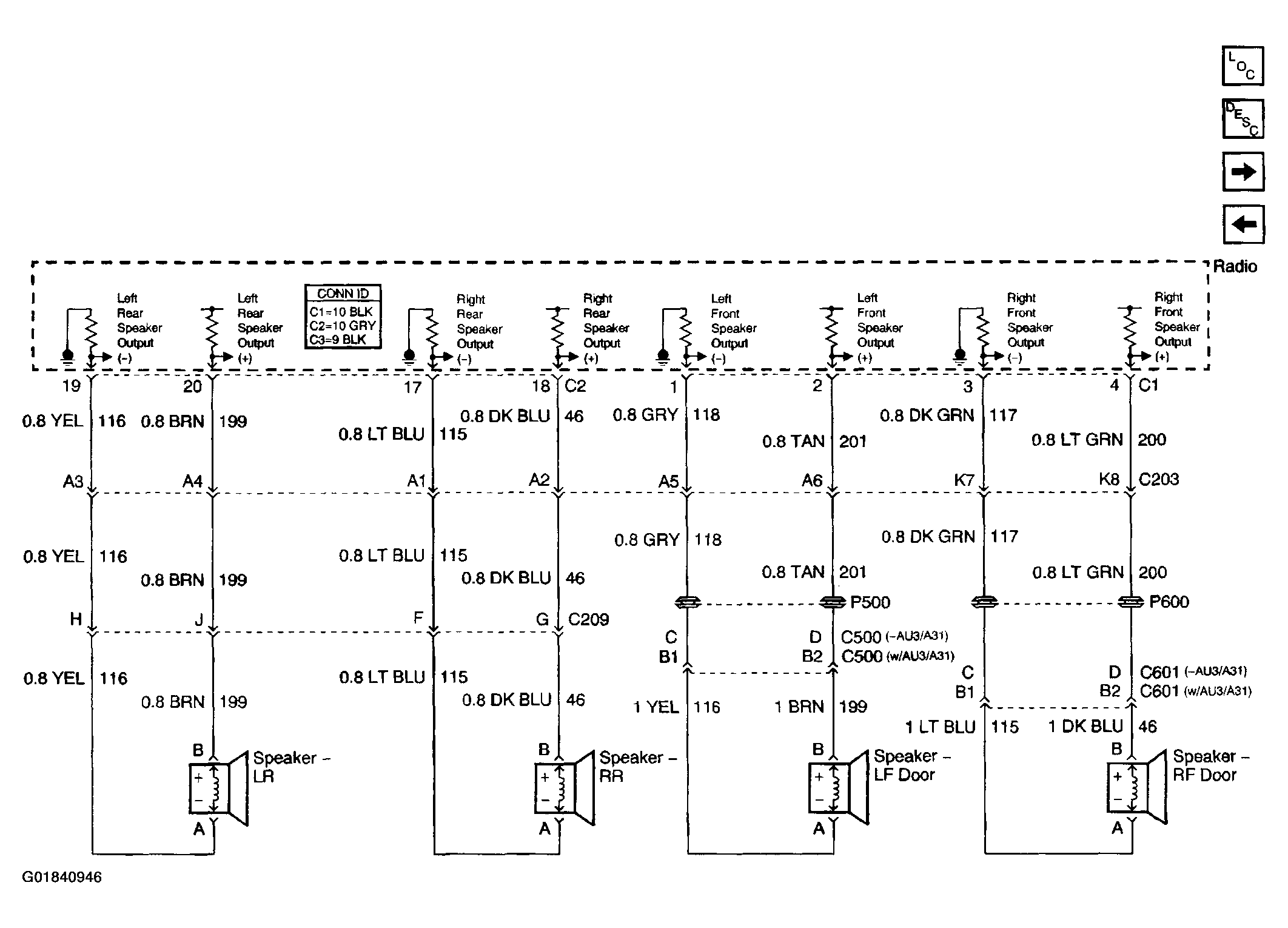

Fig 6: Radio/Audio System Schematics (Speakers - Crew Cab & Utility)

Courtesy of GENERAL MOTORS CORP.

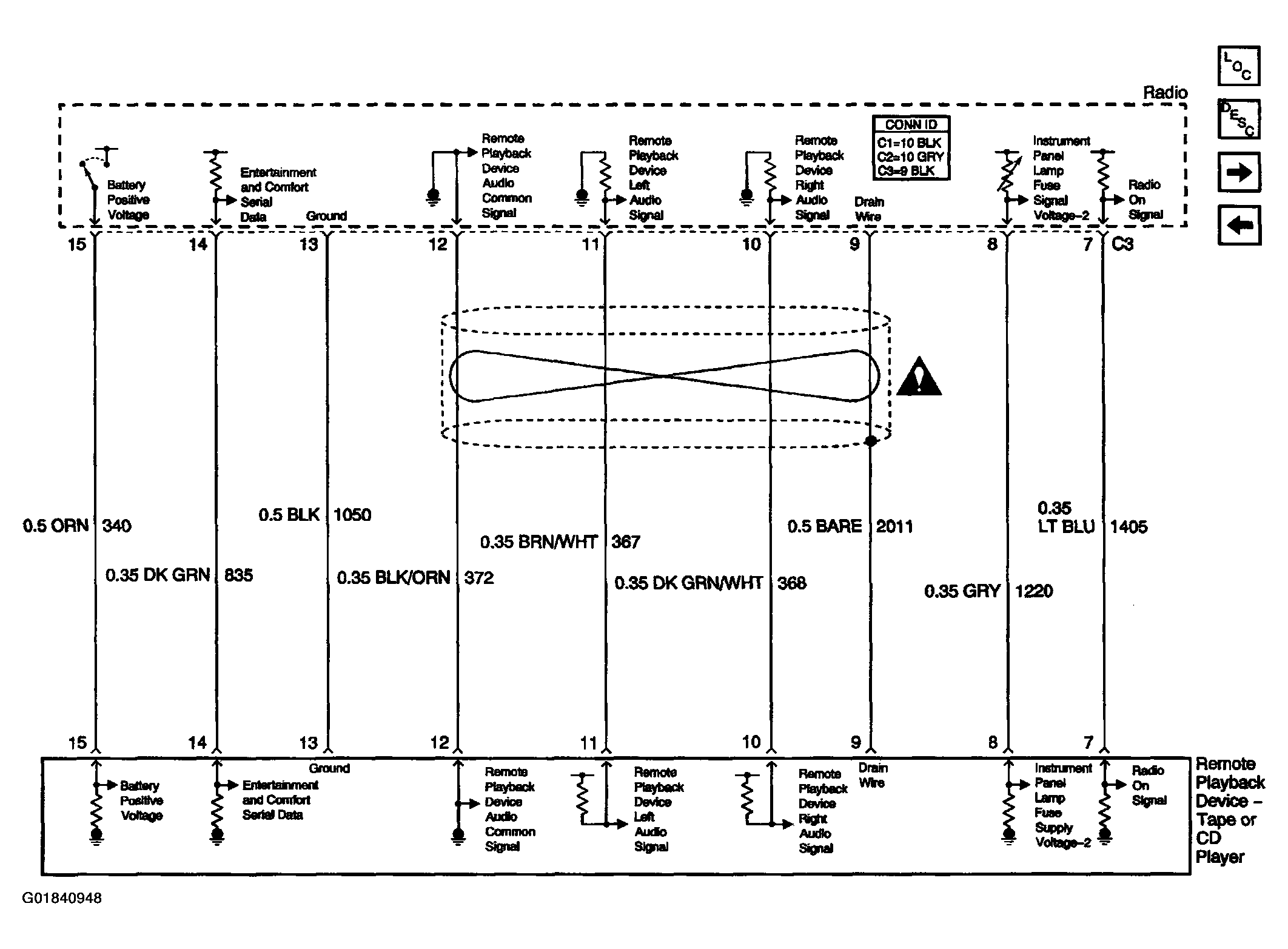

Fig 7: Radio/Audio System Schematics (Remote Playback Device - CD Or Tape Player)

Courtesy of GENERAL MOTORS CORP.

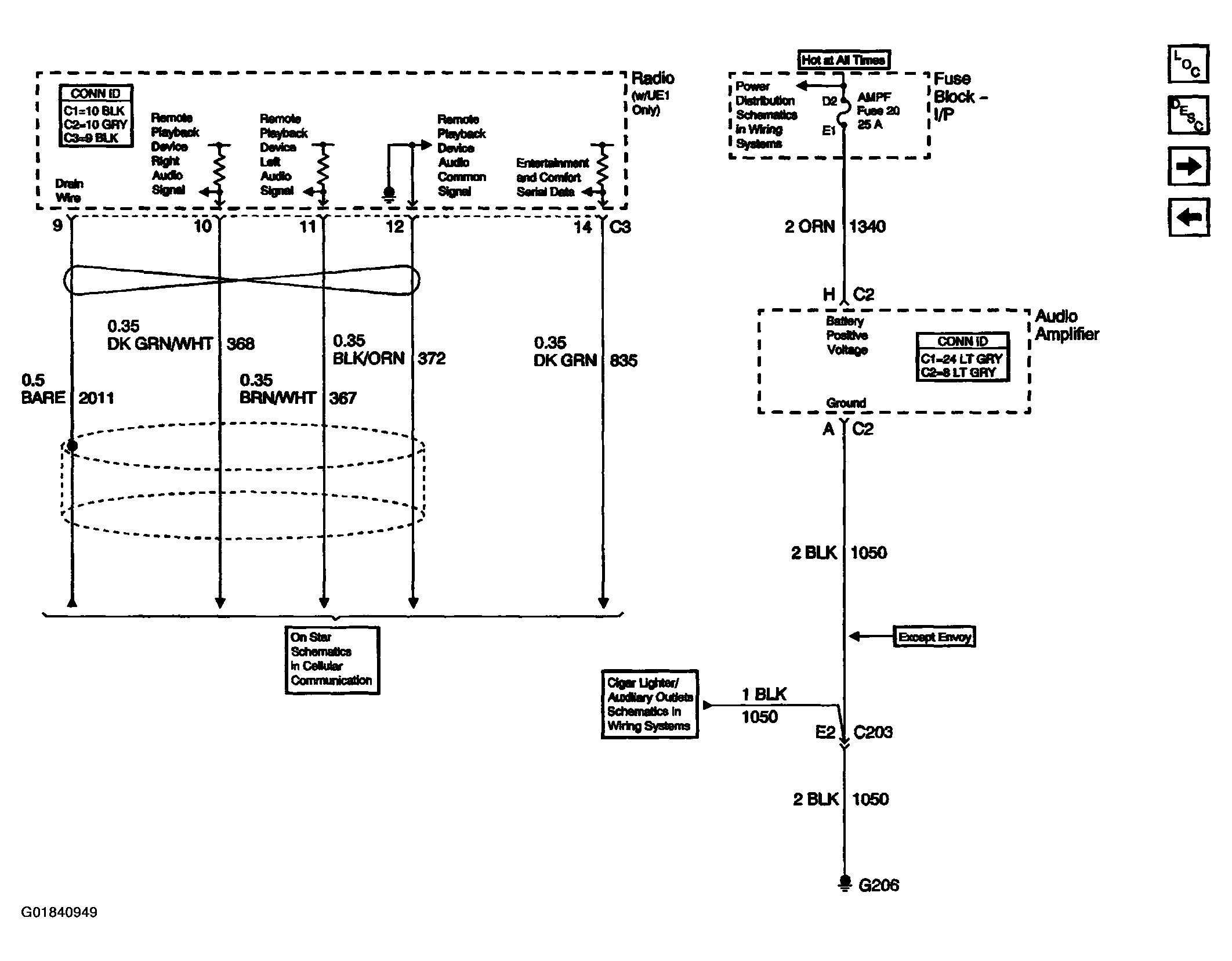

Fig 8: Radio/Audio System Schematics (Audio Amplifier Power & Ground)

Courtesy of GENERAL MOTORS CORP.

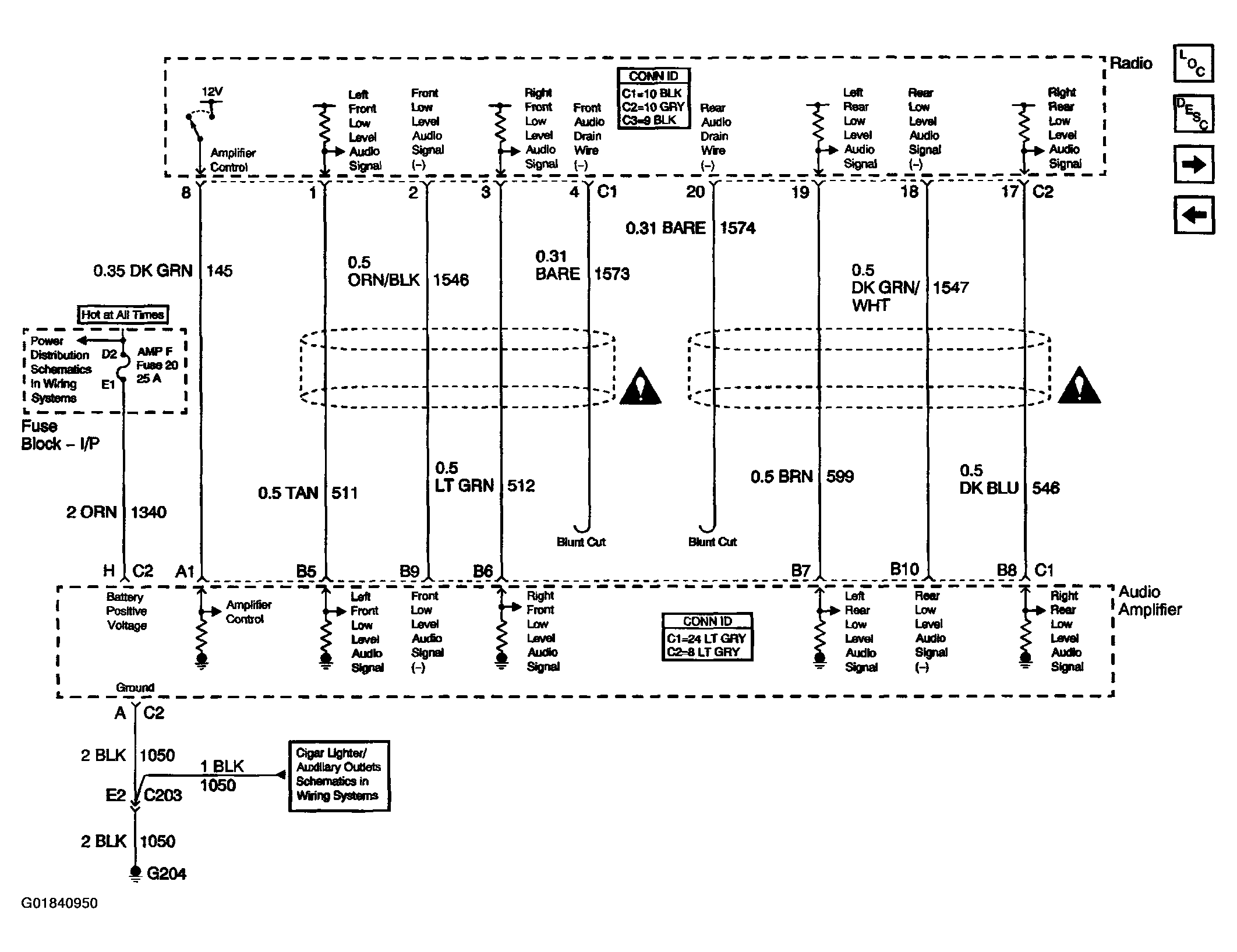

Fig 9: Radio/Audio System Schematics (Audio Amplifier Inputs)

Courtesy of GENERAL MOTORS CORP.

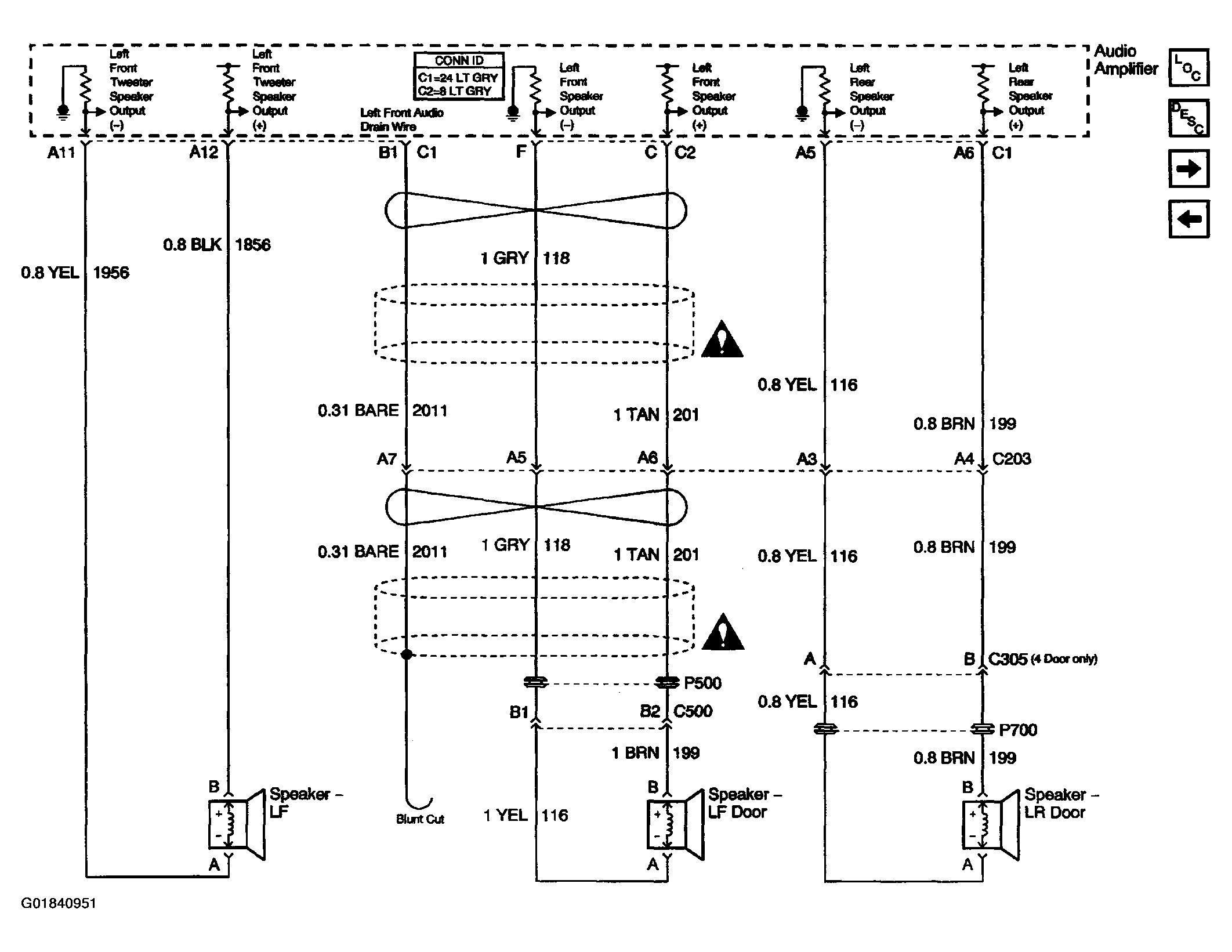

Fig 10: Radio/Audio System Schematics (Amplifier, Left Channel Output)

Courtesy of GENERAL MOTORS CORP.

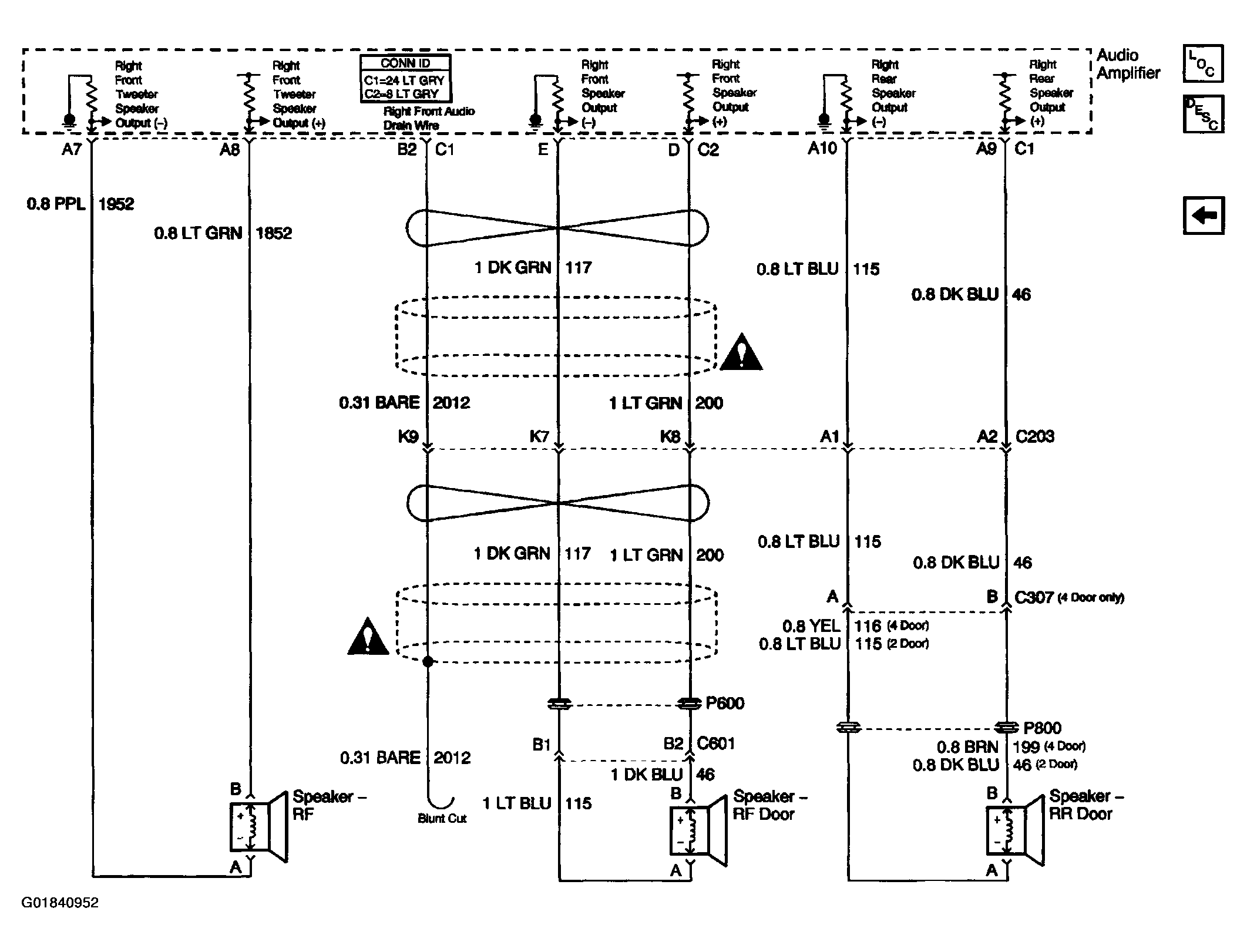

Fig 11: Radio/Audio System Schematics (Audio Amplifier, Right Channel Output)

Courtesy of GENERAL MOTORS CORP.

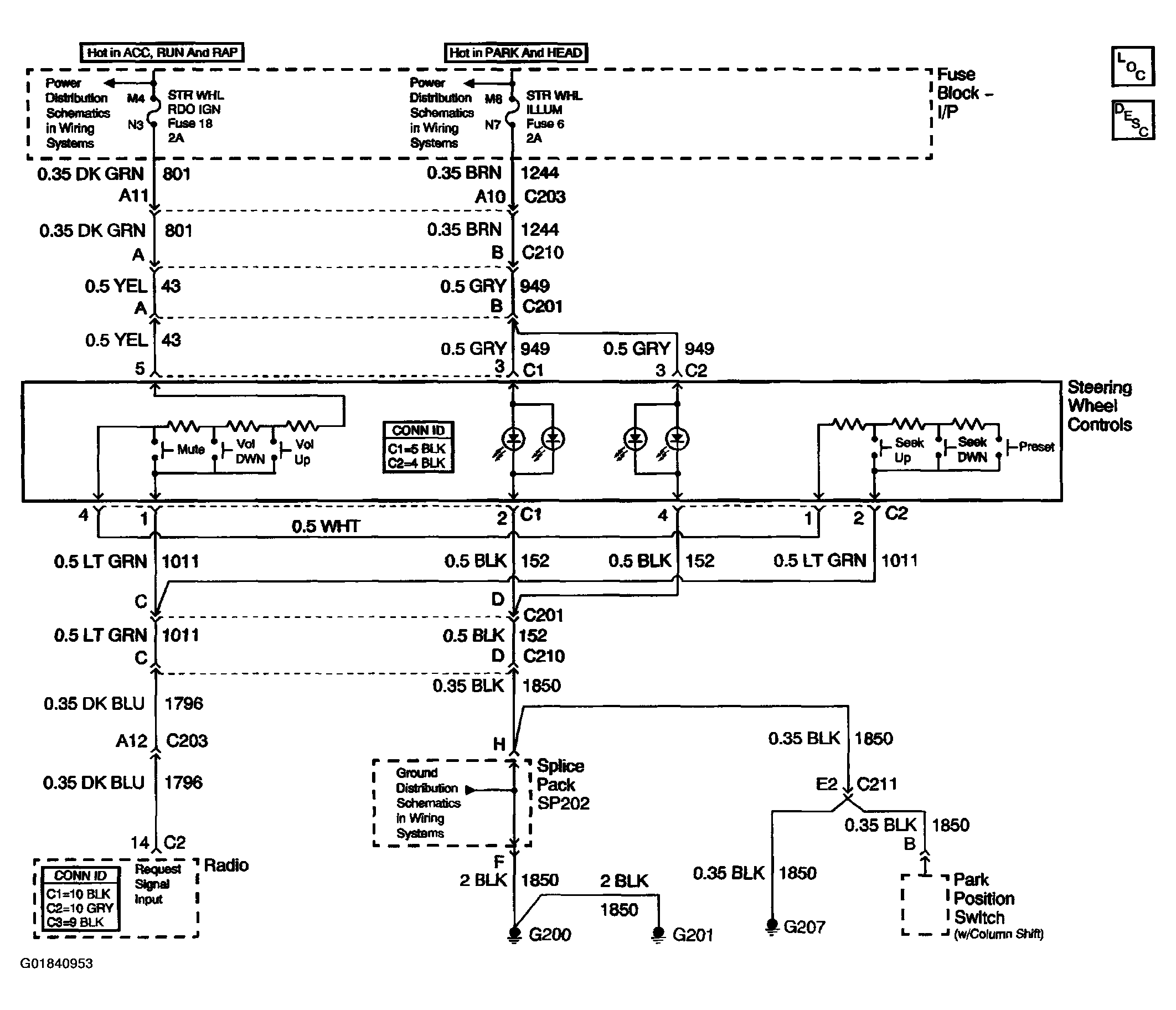

Fig 12: Steering Wheel Controls Schematics

Courtesy of GENERAL MOTORS CORP.
