Installation Procedure

  1. Connect the electrical connector.
  2. Install the radio side rear door speaker.

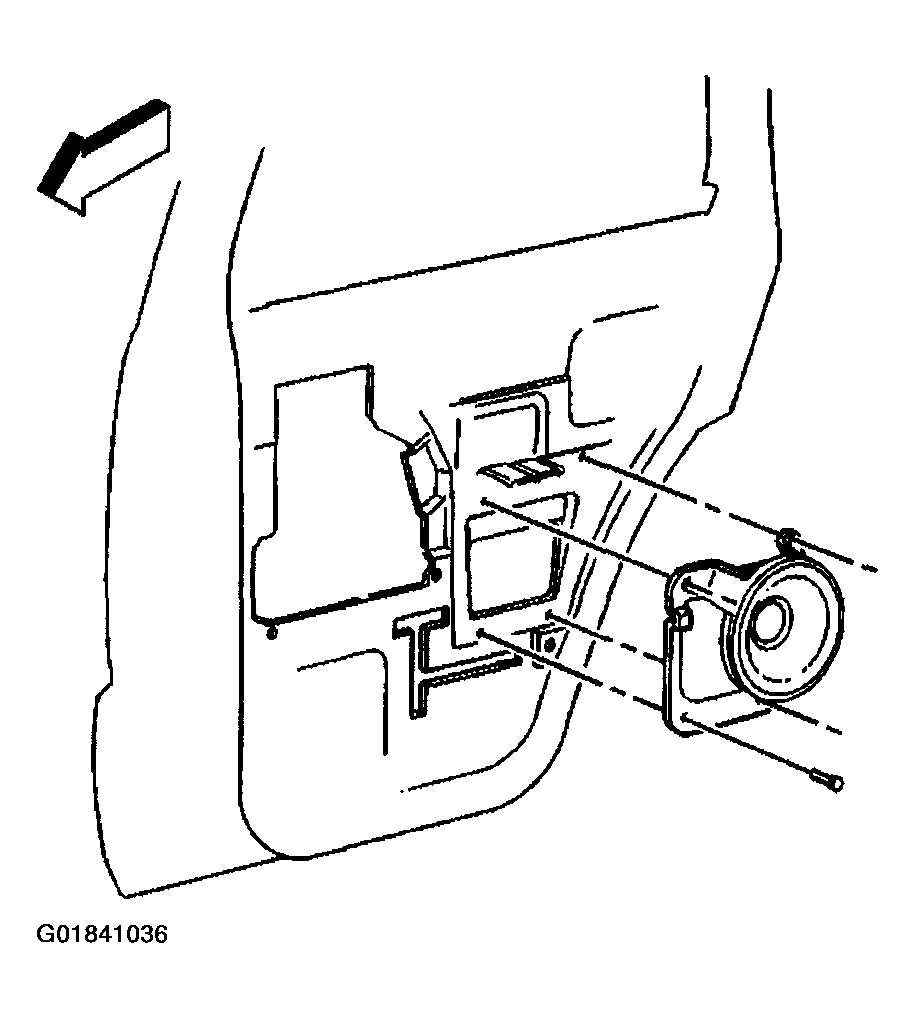

    Fig 1: Locating Front Side Door Speaker Components
    G01841036Courtesy of GENERAL MOTORS CORP.
  3. Install the speaker retaining rivets using J 34940  .
  4. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (UTILITY) or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (EXTENDED CAB P/U ONLY) in DOORS.
  5. Inspect for proper circuit operation.
