Removal Procedure

  1. Remove the rear body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) , TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY) and TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) in INTERIOR TRIM article.
  2. Remove the radio rear speaker retaining rivets.
  3. Disconnect the electrical connector.
  4. Remove the radio rear speaker from the rear body side trim panel.

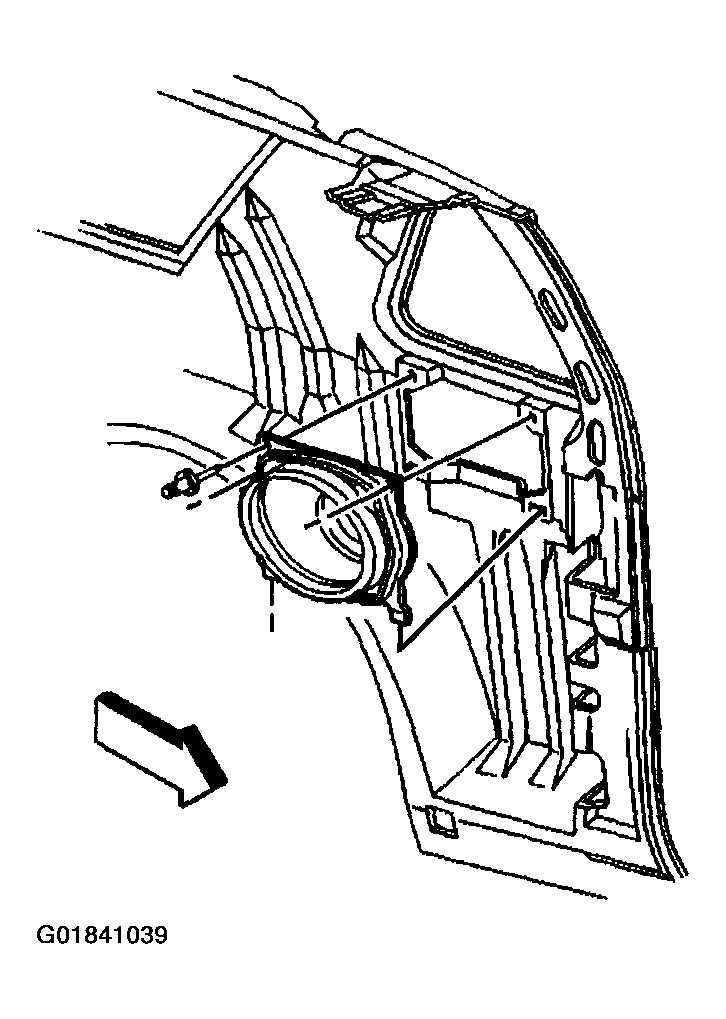

    Fig 1: Locating Rear Speaker Components (Utility)
    G01841039Courtesy of GENERAL MOTORS CORP.
