Removal Procedure

  1. Remove the rear body side trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE (STANDARD CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (EXTENDED CAB PICKUP) , TRIM PANEL REPLACEMENT - BODY SIDE (2-DOOR UTILITY) , TRIM PANEL REPLACEMENT - BODY SIDE (4-DOOR UTILITY) and TRIM PANEL REPLACEMENT - BODY SIDE (CREW CAB) in INTERIOR TRIM article.
  2. Disconnect the electrical connectors.
  3. Remove the radio rear speaker nuts.

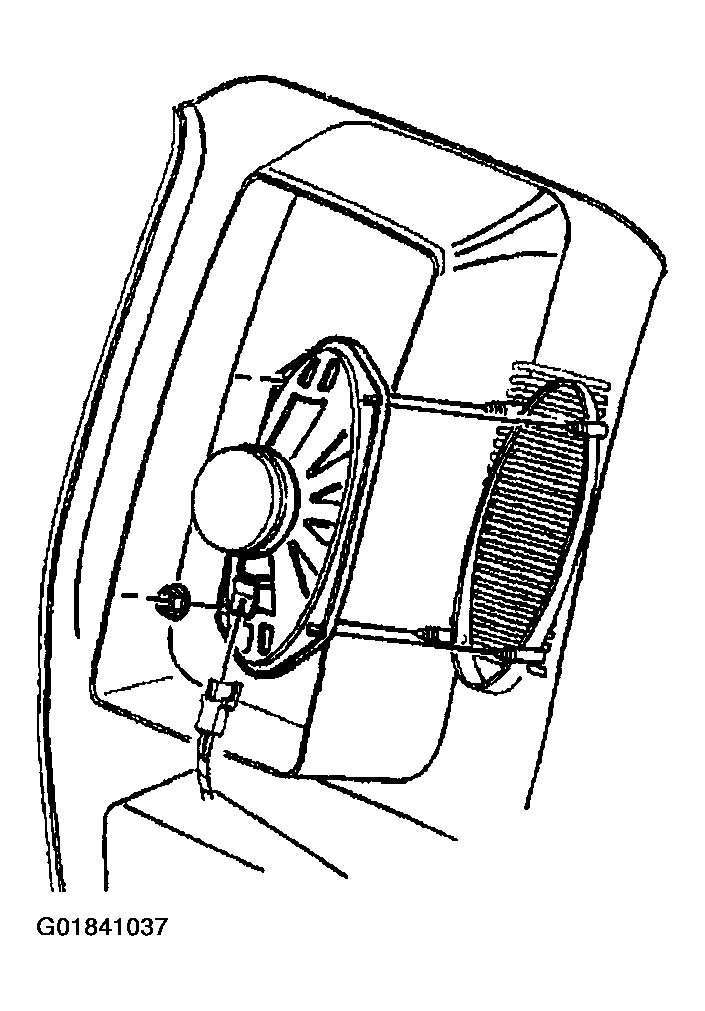

    Fig 1: Locating Rear Speaker Components (Pickup)
    G01841037Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear speaker from the rear body side trim panel.
