Removal Procedure

  1. Remove the front speaker grille screws.
  2. Remove the radio front speaker grille.

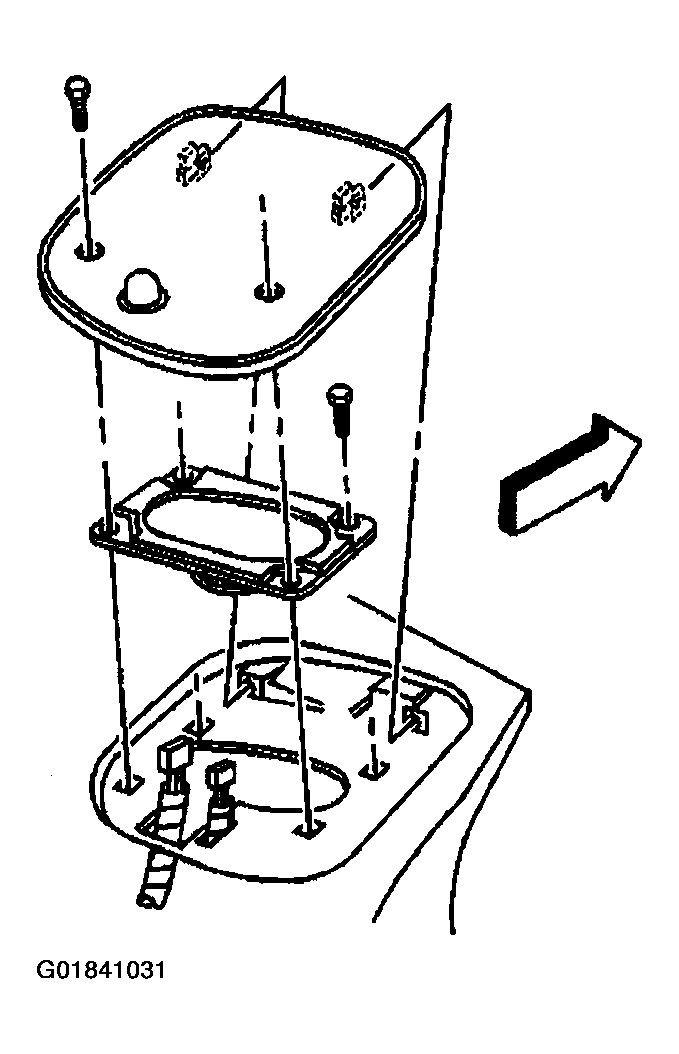

    Fig 1: Locating Front Speaker Components
    G01841031Courtesy of GENERAL MOTORS CORP.
  3. Remove the DRL sensor from the right speaker grille, if equipped.
  4. Turn the DRL sensor counterclockwise 1/4 turn in order to remove.
  5. Remove the radio front speaker screws.
  6. Remove the radio front speaker.
  7. Disconnect the electrical connector.
