Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in DOORS article.
  2. Remove the speaker retaining rivets.

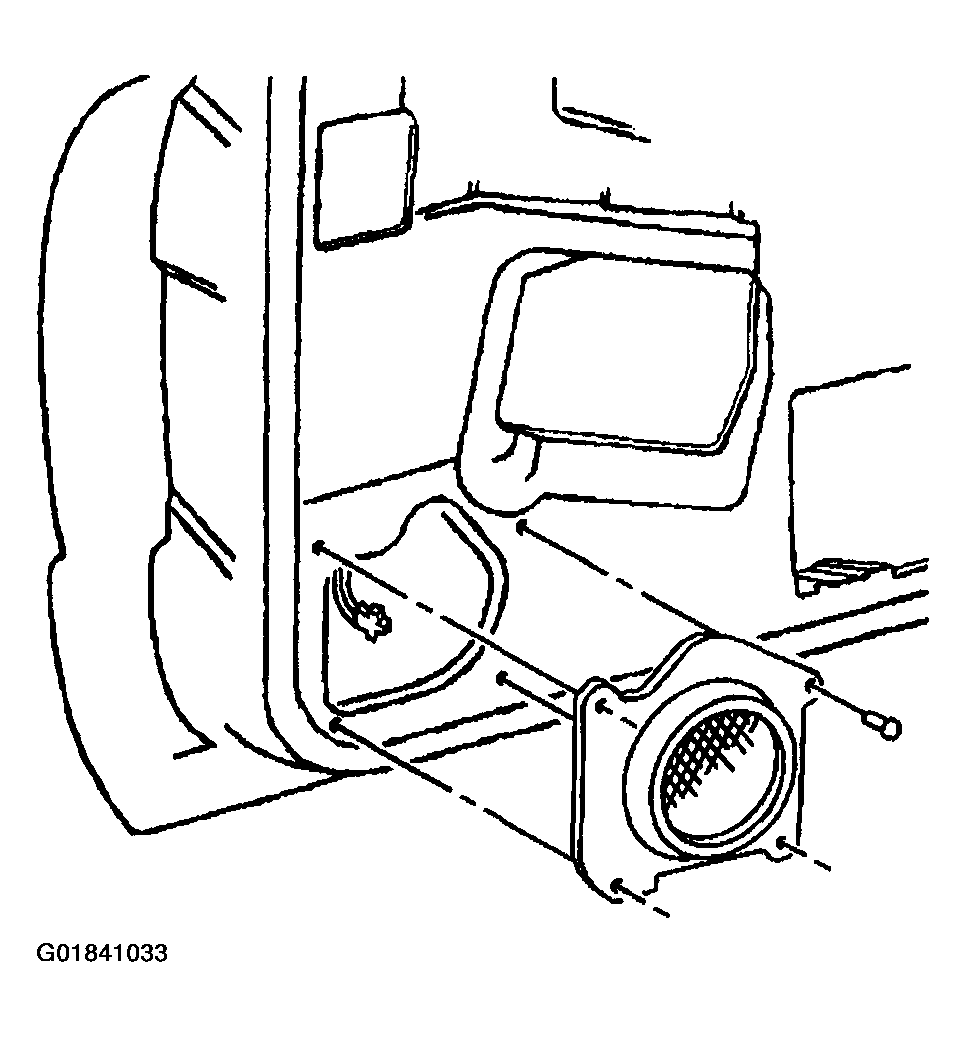

    Fig 1: Locating Front Side Door Speaker Components
    G01841033Courtesy of GENERAL MOTORS CORP.
  3. Remove the front side door speaker.
  4. Disconnect the electrical connector.
