Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in GM VEHICLES CAUTIONS & NOTICES article.
  1. Remove the negative battery cable.
  2. Remove the remote cassette player tray by prying gently with a flat-bladed tool.
  3. Remove the remote cassette player by gently pulling the unit outward from the console.

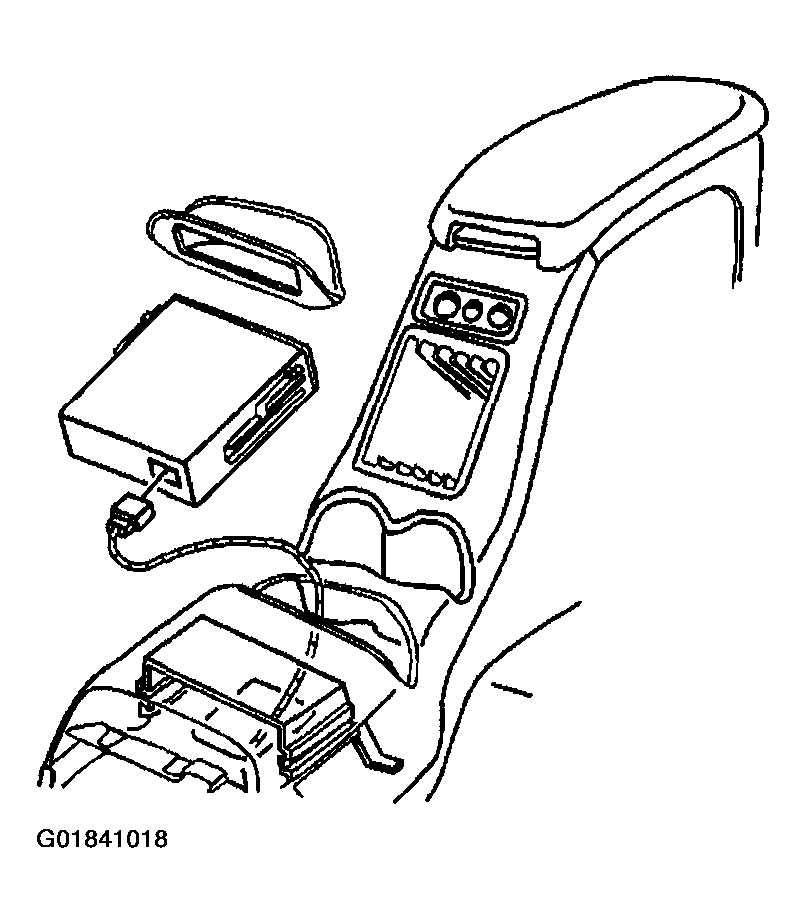

    Fig 1: Locating Remote Cassette Player
    G01841018Courtesy of GENERAL MOTORS CORP.
  4. Remove the electrical connector.
