Installation Procedure

  1. Install the electrical connector.
  2. Install the remote cassette player to the console, by sliding the unit into place between the retaining tabs.

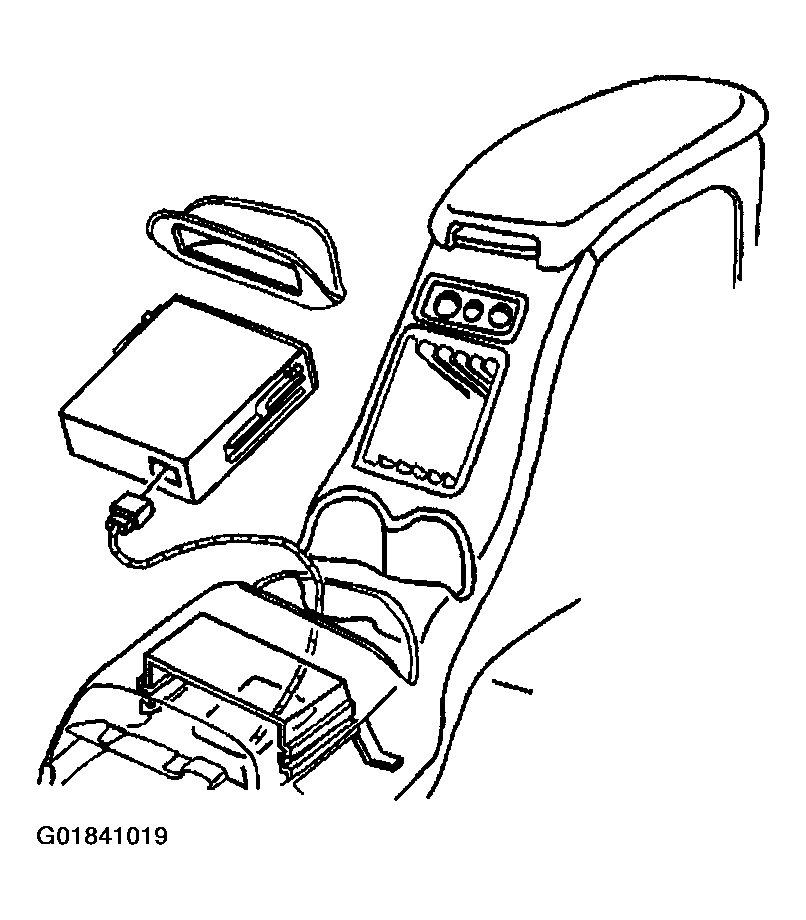

    Fig 1: Locating Remote Cassette Player
    G01841019Courtesy of GENERAL MOTORS CORP.
  3. Install the remote cassette player tray, ensuring the unit locks into place.
  4. Install the negative battery cable.
