Removal Procedure

  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY in INSTRUMENT PANEL, GAGES & CONSOLE article.
  2. Remove the screws that secure the radio to the instrument panel.

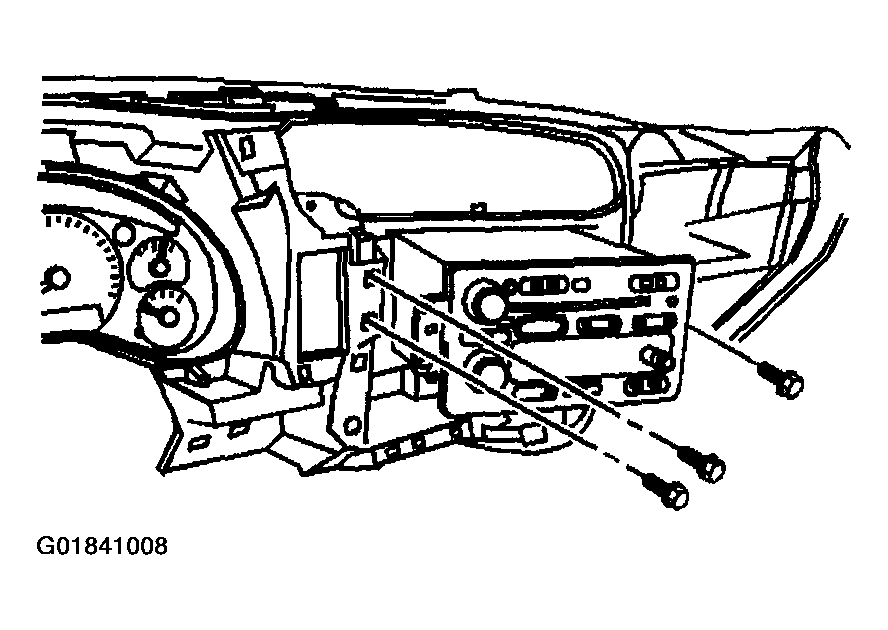

    Fig 1: Locating Radio Mounting Screws (RPO Code UC6)
    G01841008Courtesy of GENERAL MOTORS CORP.
  3. Remove the radio from the support bracket enough to access the connectors at rear of the radio.
  4. Disconnect the electrical connector (2) from the radio.

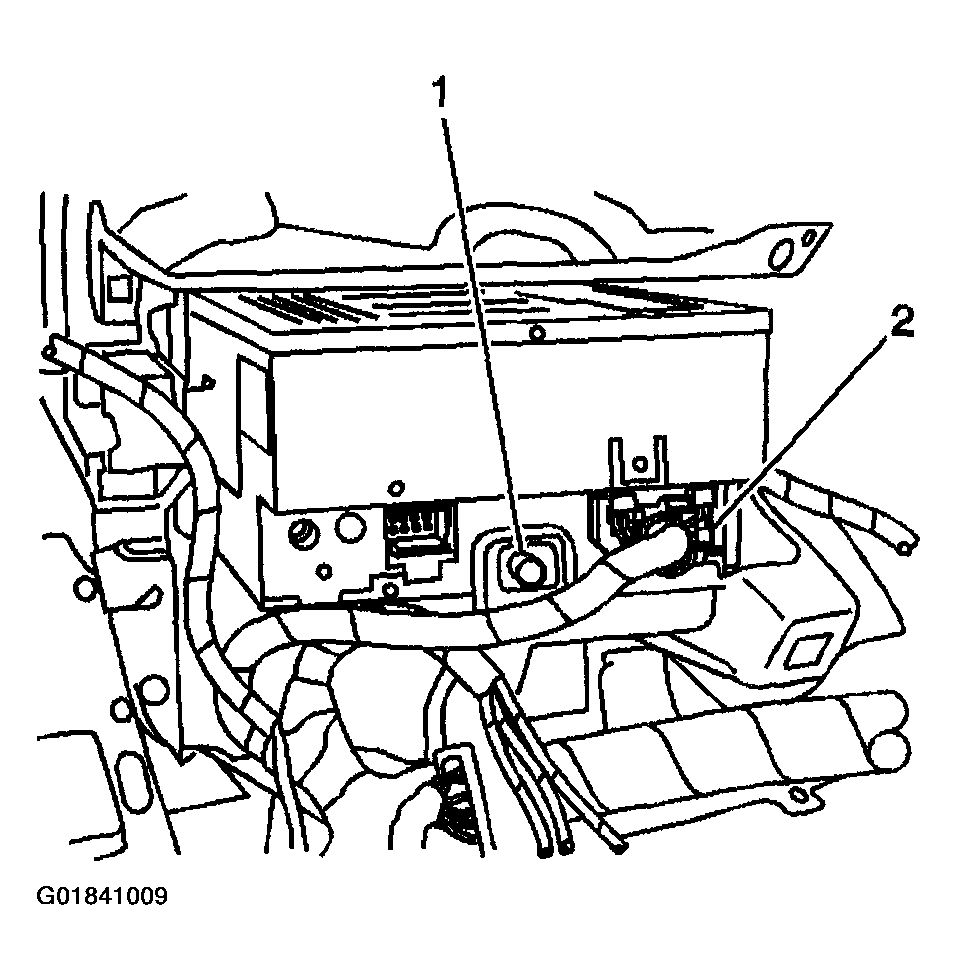

    Fig 2: Locating Radio Electrical Connector (RPO Code UC6)
    G01841009Courtesy of GENERAL MOTORS CORP.
  5. Remove the radio.
