Installation Procedure

Connect the electrical connector (2) to the radio.

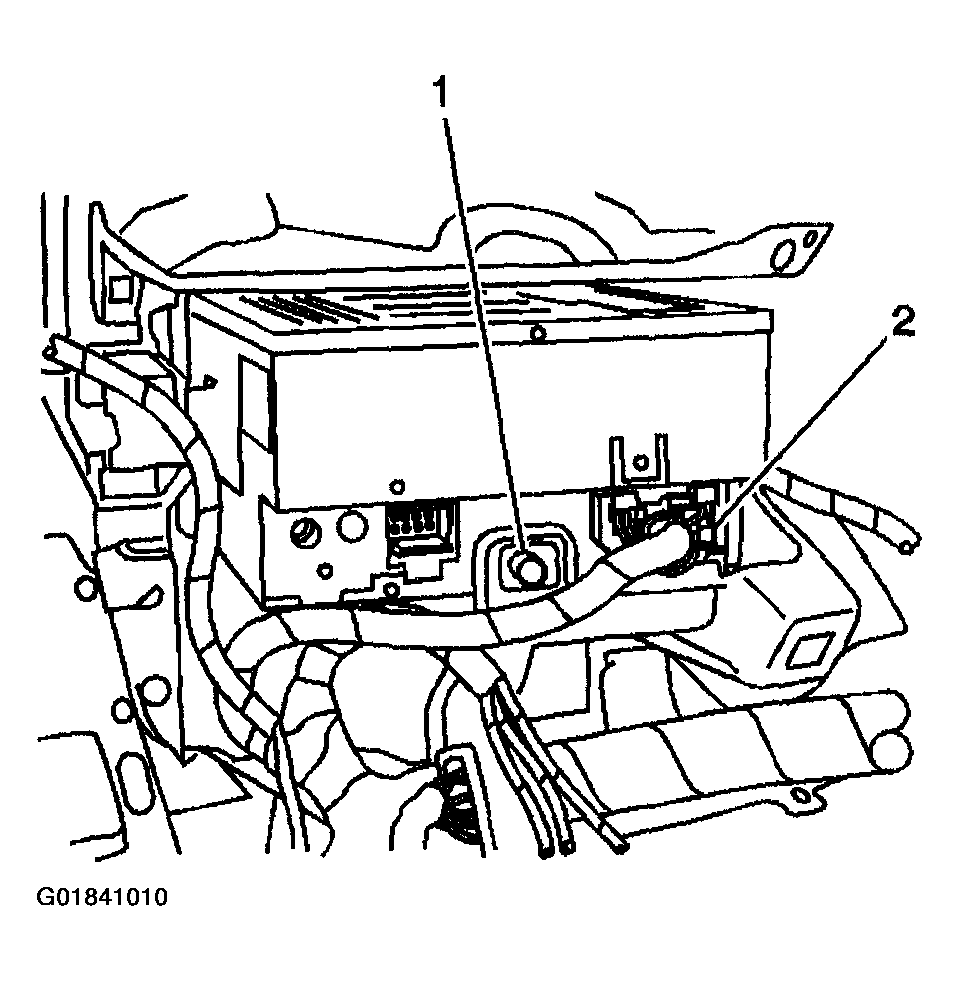

Fig 1: Locating Radio Electrical Connector (RPO Code UC6)
Courtesy of GENERAL MOTORS CORP.
Align the radio locator tab (1) into the locator hole.
Install the radio retaining screws.
Tighten

Tighten the radio retaining screws to 2 N.m (18 lb in).

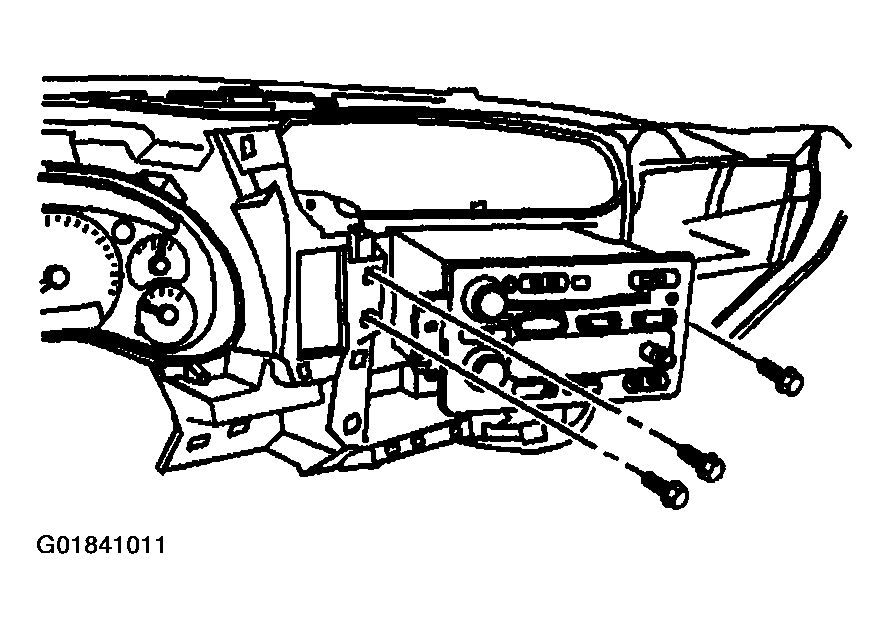

Fig 2: Locating Radio Mounting Screws (RPO Code UC6)
Courtesy of GENERAL MOTORS CORP.
Install the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY in INSTRUMENT PANEL, GAGES & CONSOLE article.
Recalibrate the new radio assembly. Refer to RADIO SETUP .
