Removal Procedure

  1. Remove the antenna mast. Refer to FIXED ANTENNA MAST REPLACEMENT .
  2. Remove the radio antenna cable from the radio extension cable.
  3. Remove the fender. Refer to FENDER REPLACEMENT - FRONT in BODY FRONT END article.

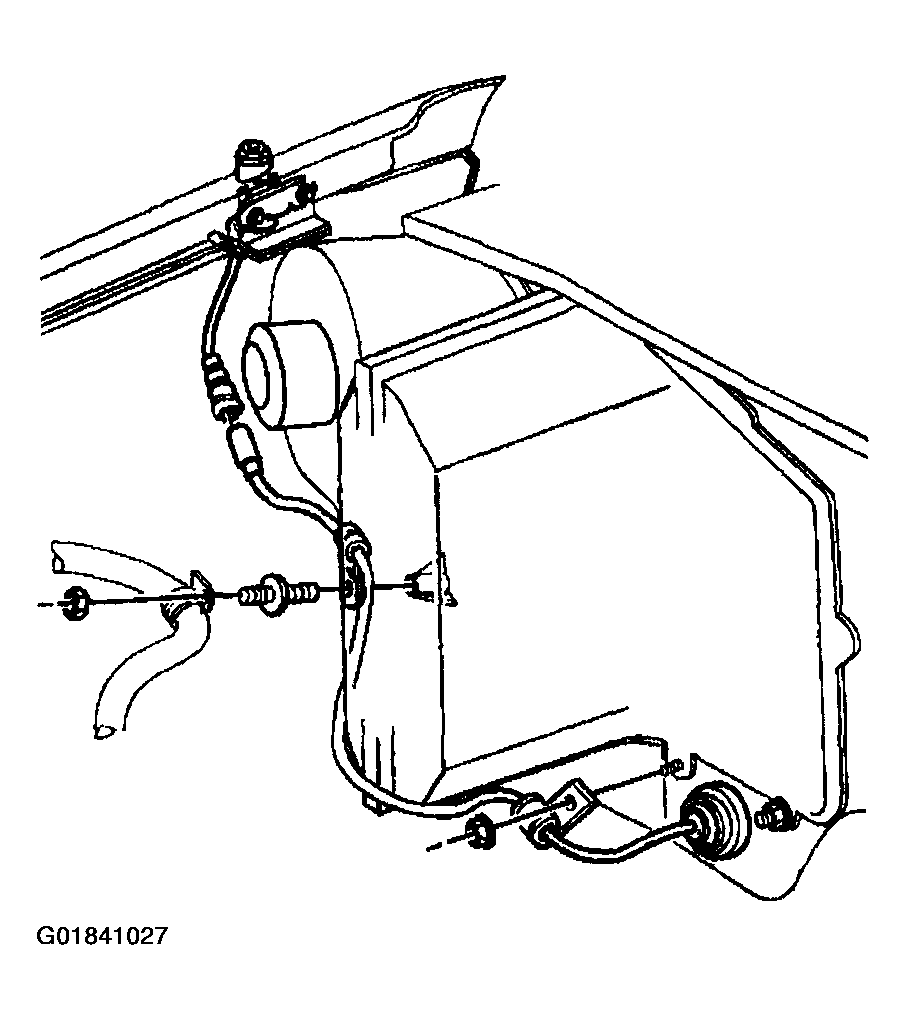

    Fig 1: Locating Radio Antenna Cable & Extension Cable
    G01841027Courtesy of GENERAL MOTORS CORP.
  4. Remove the radio antenna cable nut.

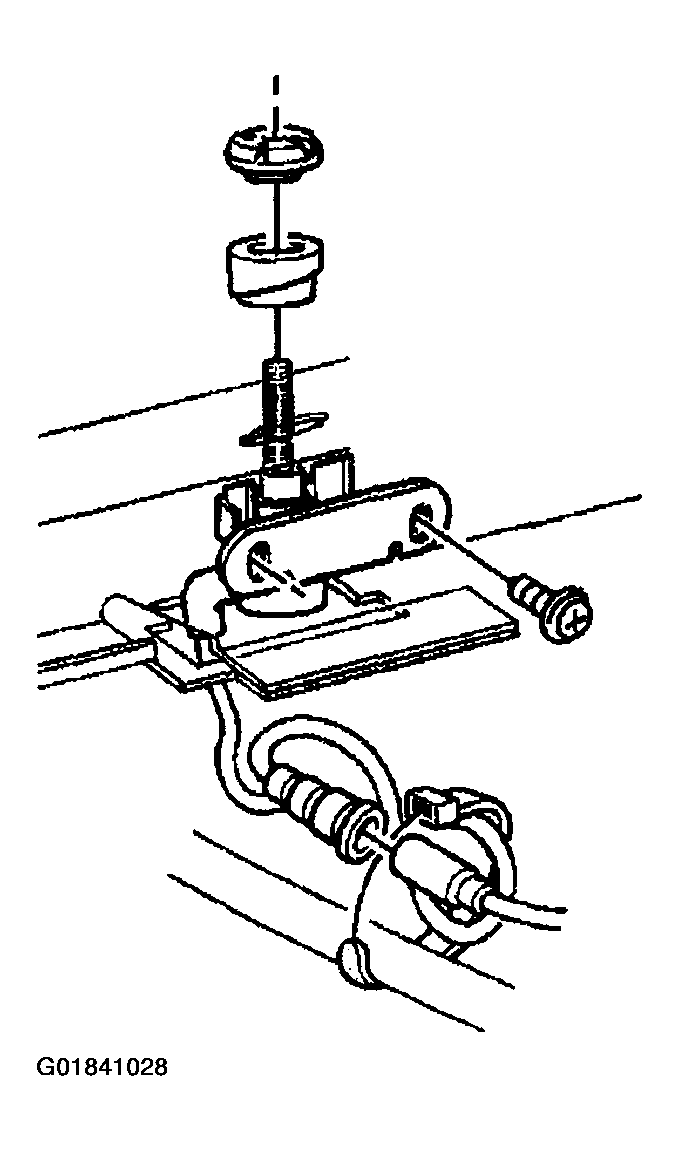

    Fig 2: Identifying Radio Antenna Cable Components
    G01841028Courtesy of GENERAL MOTORS CORP.
  5. Remove the radio antenna bezel.
  6. Remove the radio antenna cable screws.
  7. Remove the radio antenna cable.
