Installation Procedure

  1. Install the radio antenna cable.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES article.
  2. Install the radio antenna cable screws.

    Tighten

    Tighten the radio antenna cable screws to 2.8 N.m (25 lb in).

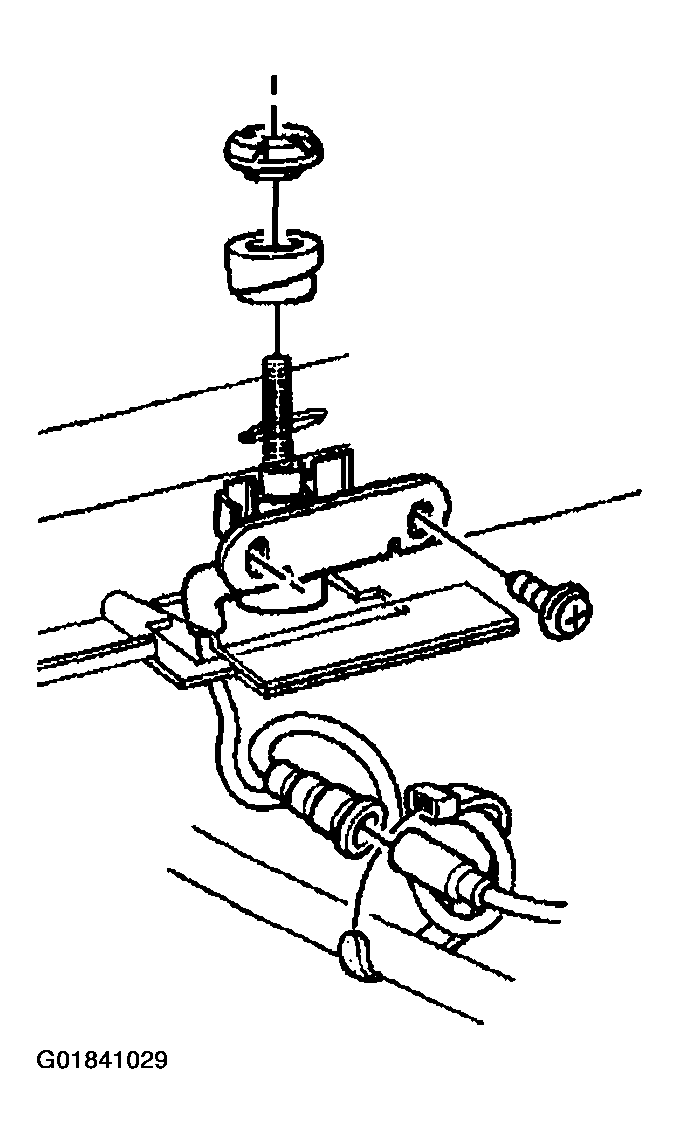

    Fig 1: Identifying Radio Antenna Cable Components
    G01841029Courtesy of GENERAL MOTORS CORP.
  3. Install the radio antenna bezel.
  4. Install the radio antenna cable nut.
  5. Install the fender. Refer to FENDER REPLACEMENT - FRONT in BODY FRONT END article.

    Tighten

    Tighten the radio antenna cable nut to 6 N.m (53 lb in).

  6. Install the radio antenna cable to the radio extension cable.

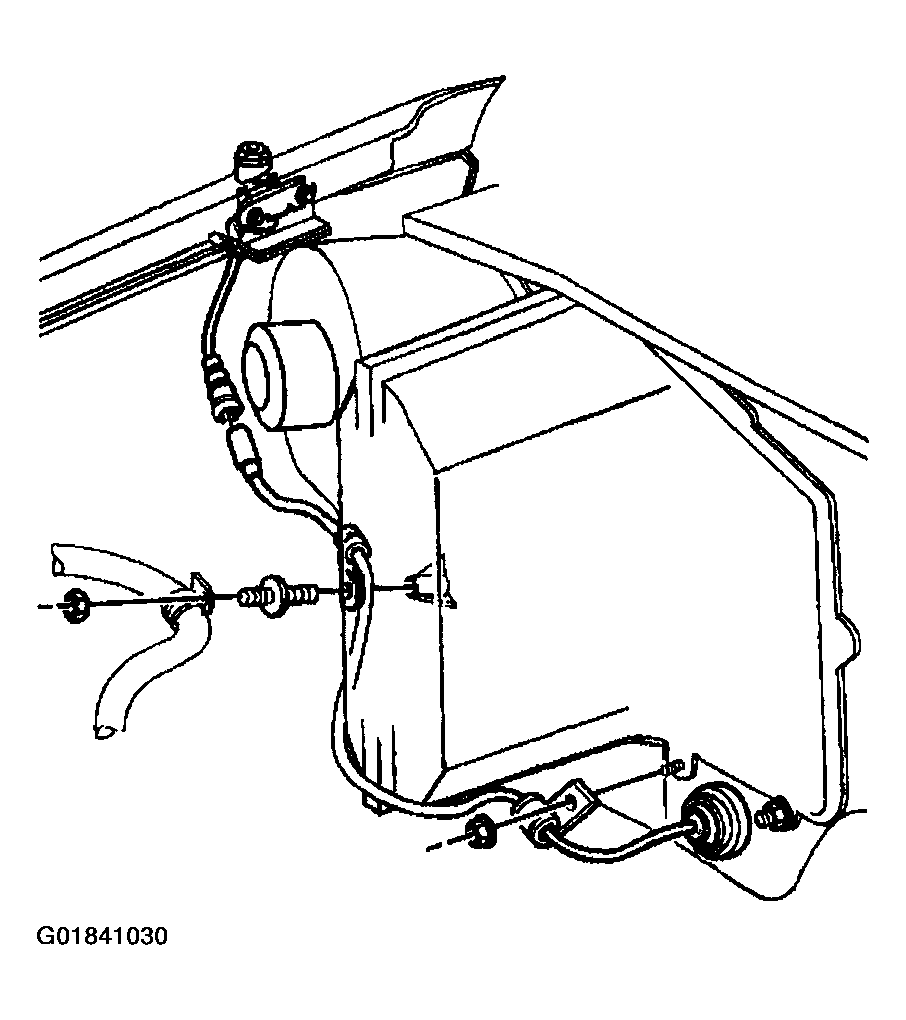

    Fig 2: Locating Radio Antenna Cable & Extension Cable
    G01841030Courtesy of GENERAL MOTORS CORP.
  7. Install the antenna mast. Refer to FIXED ANTENNA MAST REPLACEMENT .
