Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Entertainment System >> Diagnostic Information & Procedures >> Tape Player Weak, Slow Or Garbled Output

Tape Player Weak, Slow Or Garbled Output

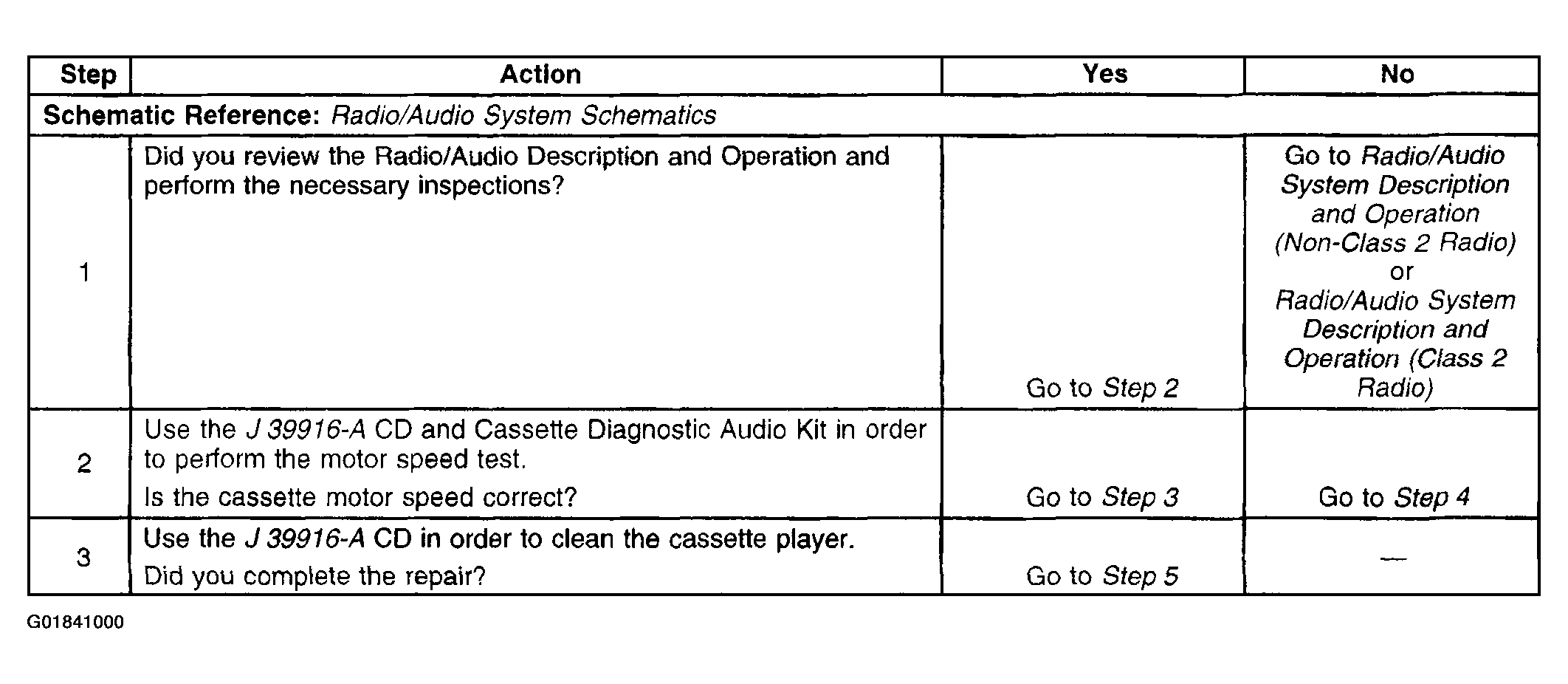

Fig 1: Tape Player Weak, Slow Or Garbled Output (Steps 1-3)
G01841000Courtesy of GENERAL MOTORS CORP.

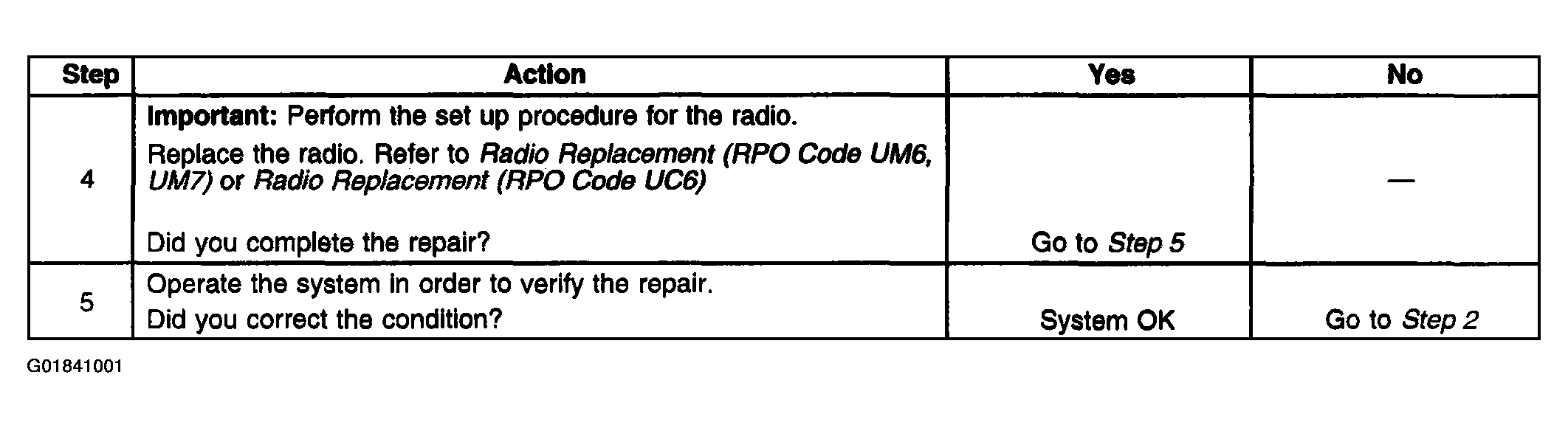

Fig 2: Tape Player Weak, Slow Or Garbled Output (Steps 4-5)
G01841001Courtesy of GENERAL MOTORS CORP.
