Remote Playback Device - Audio Noise

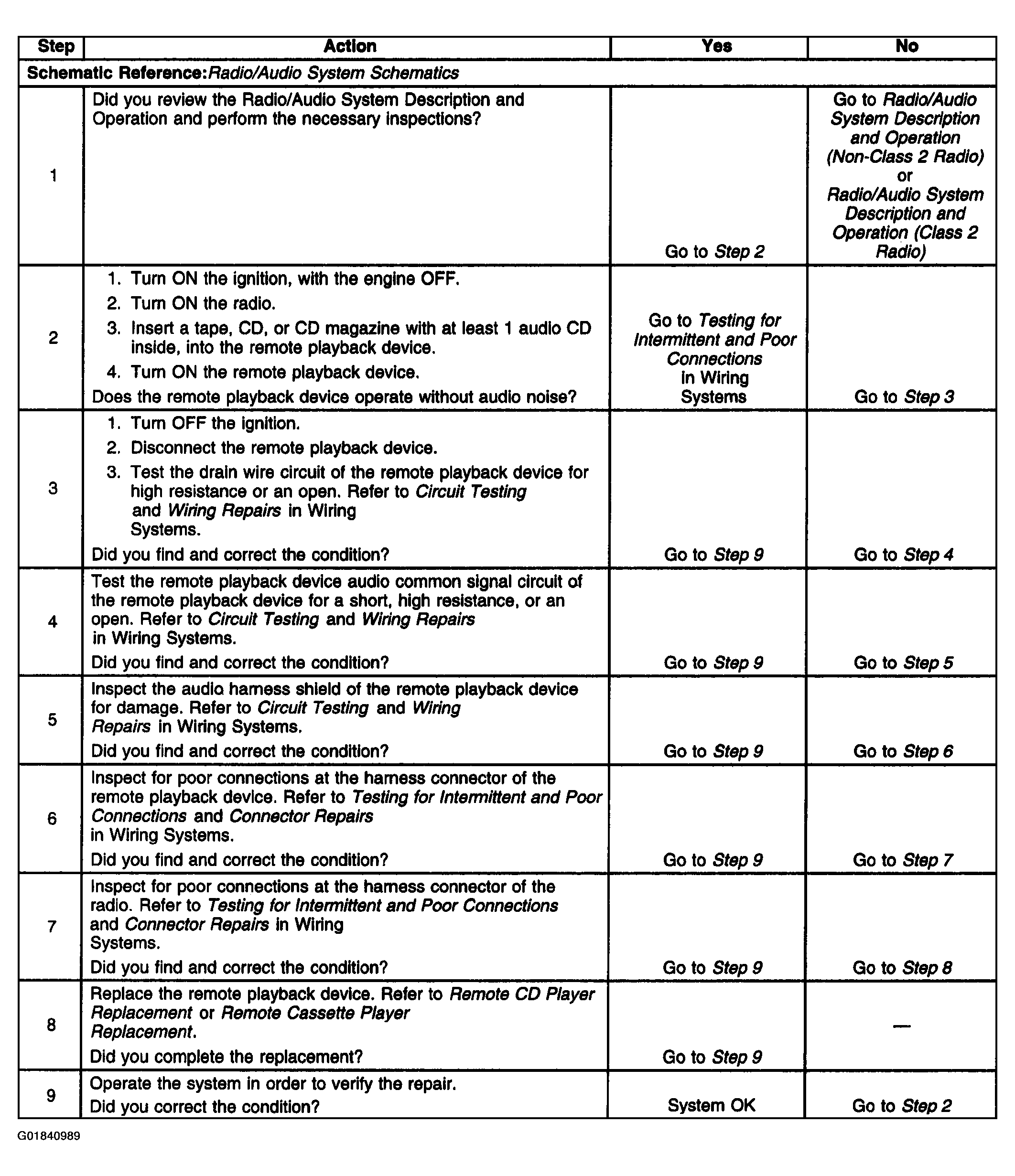

Fig 1: Remote Playback Device - Audio Noise

G01840989

Courtesy of GENERAL MOTORS CORP.
