Radio Displays LOC, Locked Or Code (Non-Class 2 Radio)

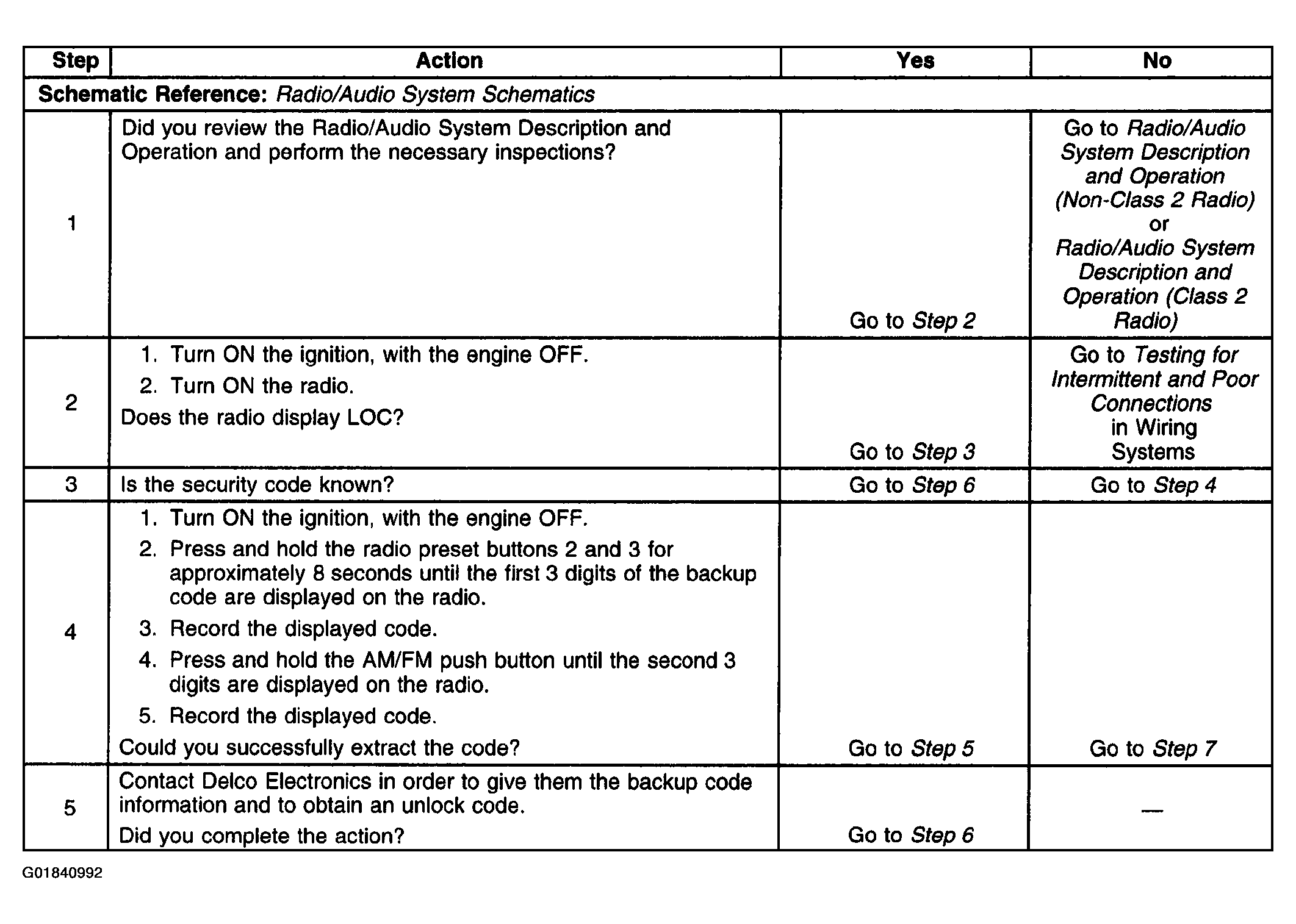

Fig 1: Radio Displays LOC, LOCKED Or CODE (Non-Class 2 radio) (Steps 1-5)

Courtesy of GENERAL MOTORS CORP.

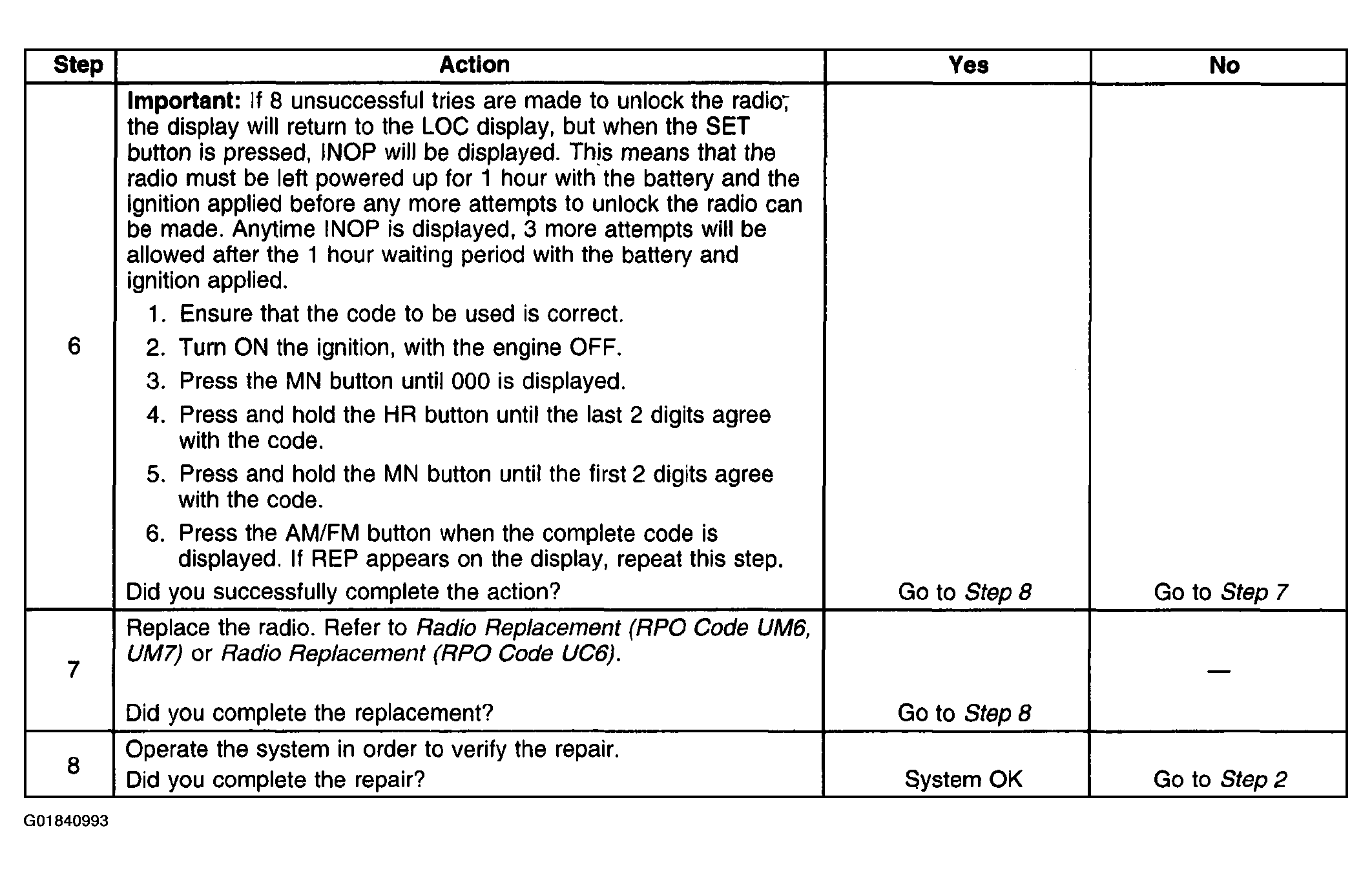

Fig 2: Radio Displays LOC, LOCKED Or CODE (Non-Class 2 radio) (Steps 6-8)

Courtesy of GENERAL MOTORS CORP.
