Radio Display Inoperative, Speakers Operative

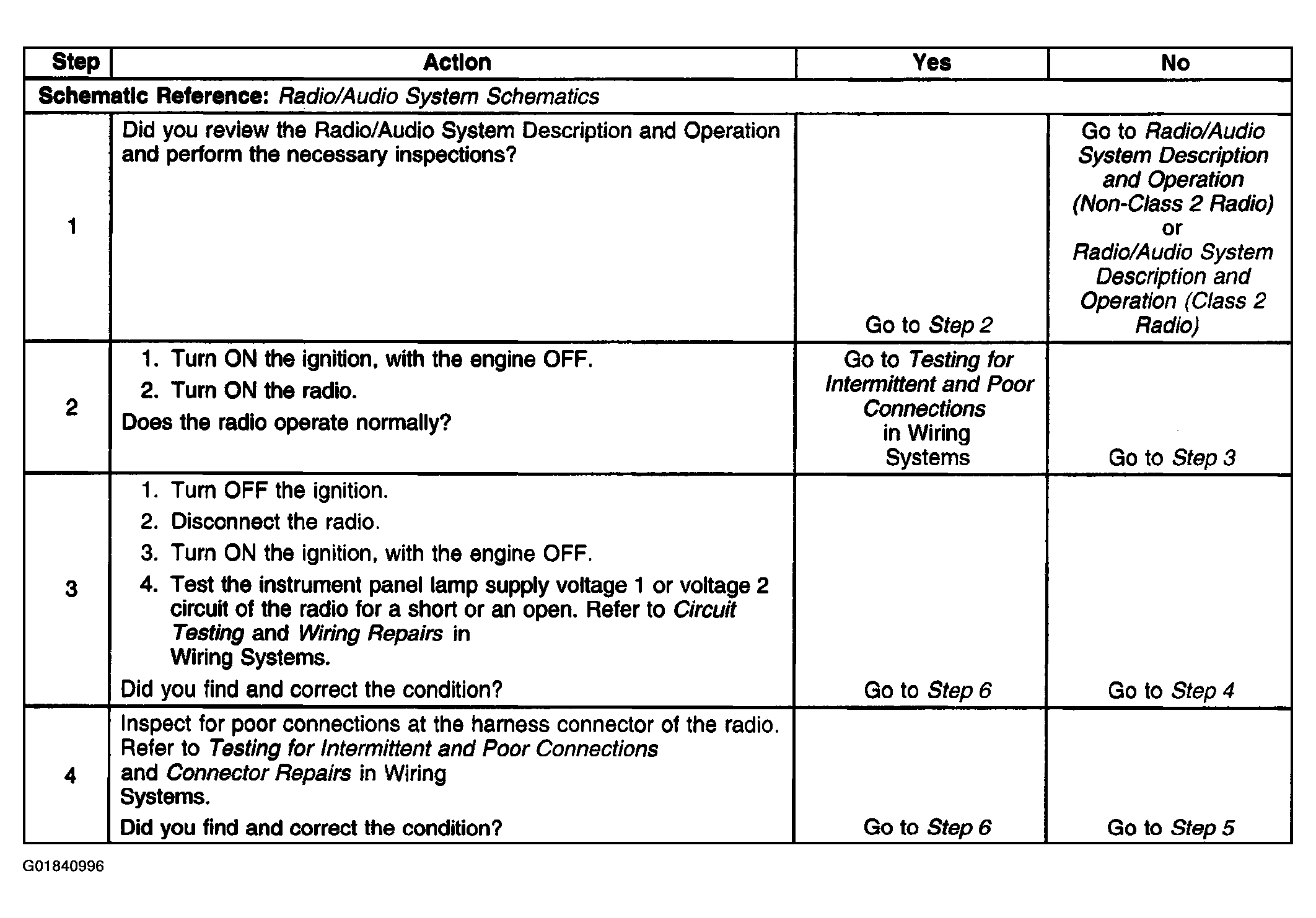

Fig 1: Radio Display Inoperative, Speakers Operative (Steps 1-4)
G01840996Courtesy of GENERAL MOTORS CORP.

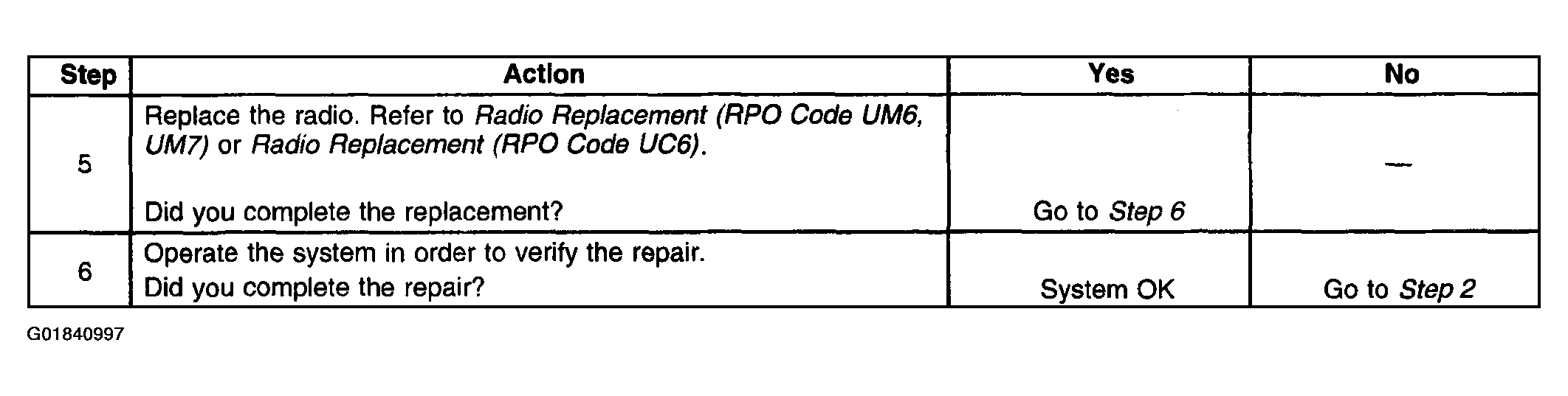

Fig 2: Radio Display Inoperative, Speakers Operative (Steps 5-6)
G01840997Courtesy of GENERAL MOTORS CORP.
