Radio Audio Inoperative At RSA Control

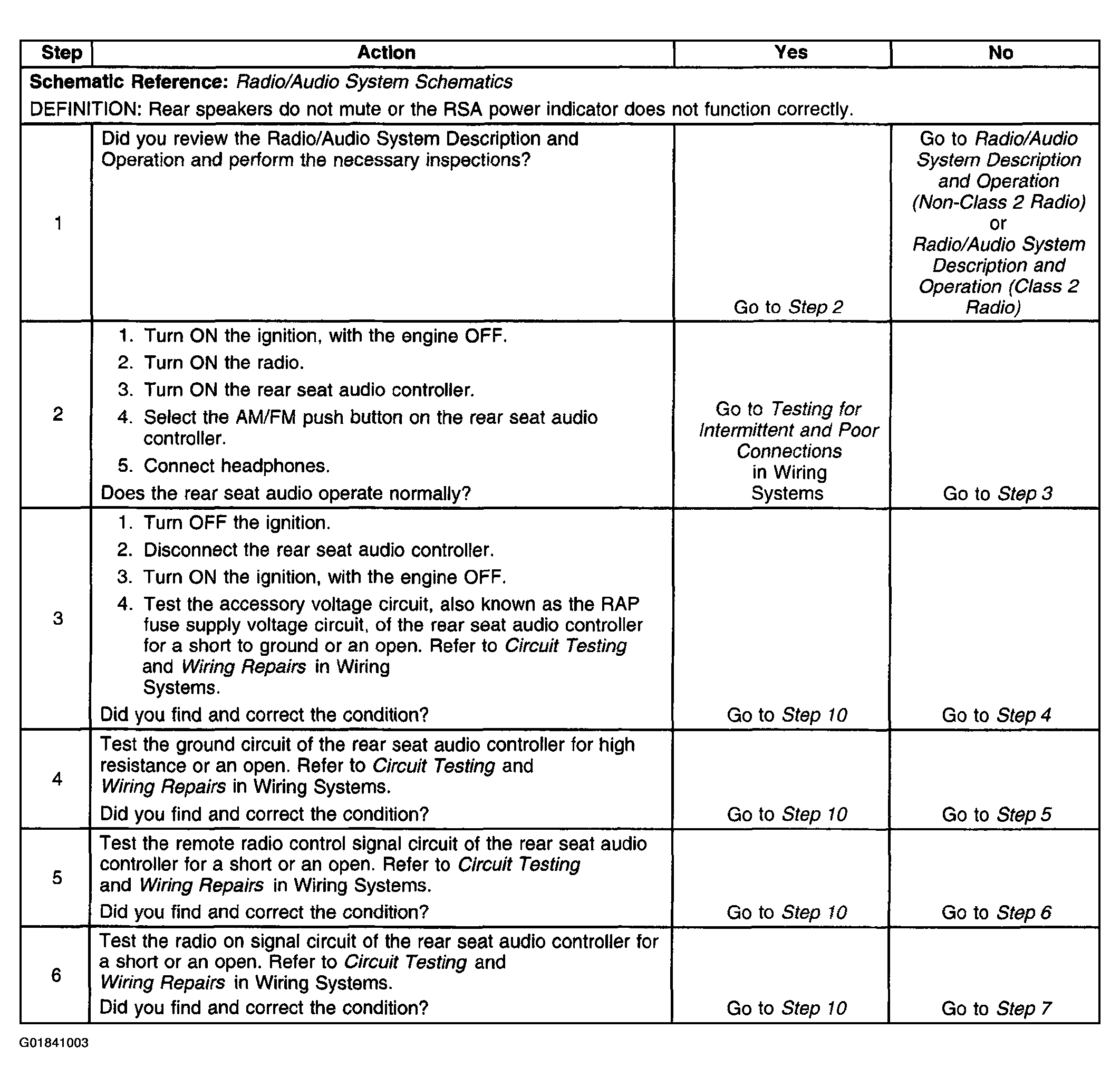

Fig 1: Radio Audio Inoperative At RSA Control (Steps 1-6)

Courtesy of GENERAL MOTORS CORP.

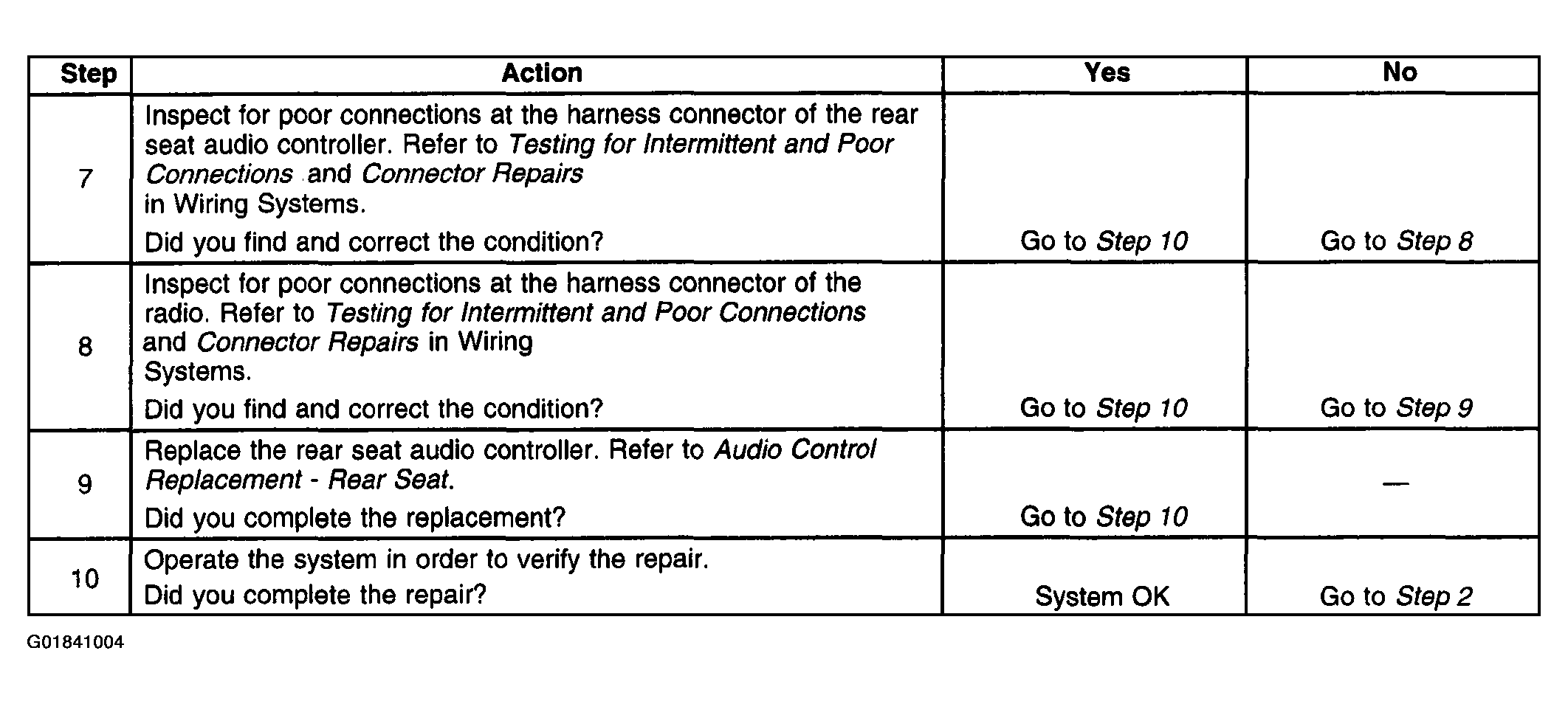

Fig 2: Radio Audio Inoperative At RSA Control (Steps 7-10)

Courtesy of GENERAL MOTORS CORP.
