Test Description

The numbers below refer to the step numbers on the diagnostic table.

1. 2

   Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
2. 3

   The symptom list in Symptoms will determine the correct diagnostic procedure to use.
3. 4

   The presence of DTCs which begin with "U" indicate some other module is not communicating. The specified procedure will compile all the available information before tests are performed.

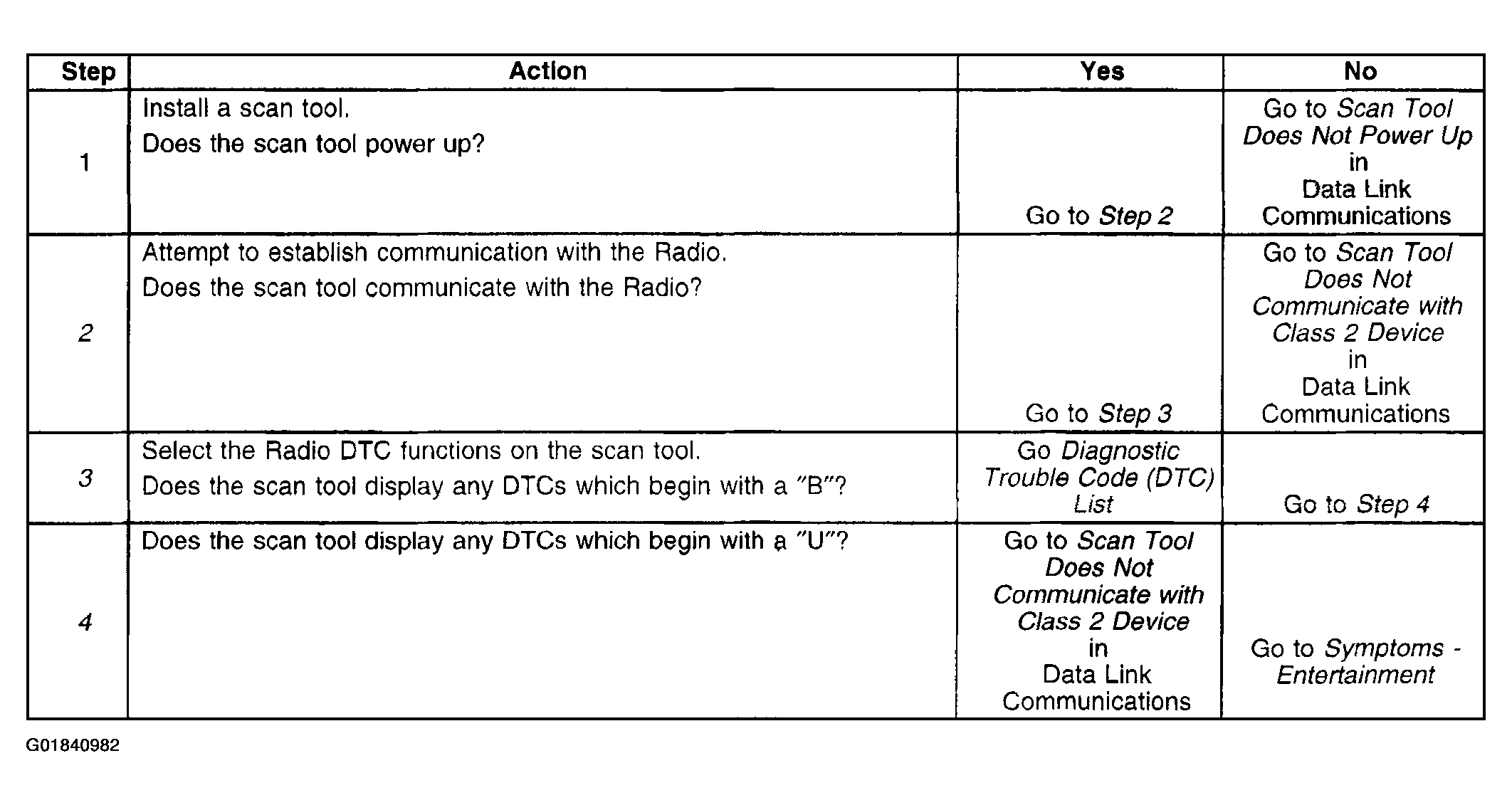

Fig 1: Diagnostic System Check - Entertainment System
Courtesy of GENERAL MOTORS CORP.
