Steering Wheel Controls Connector End Views

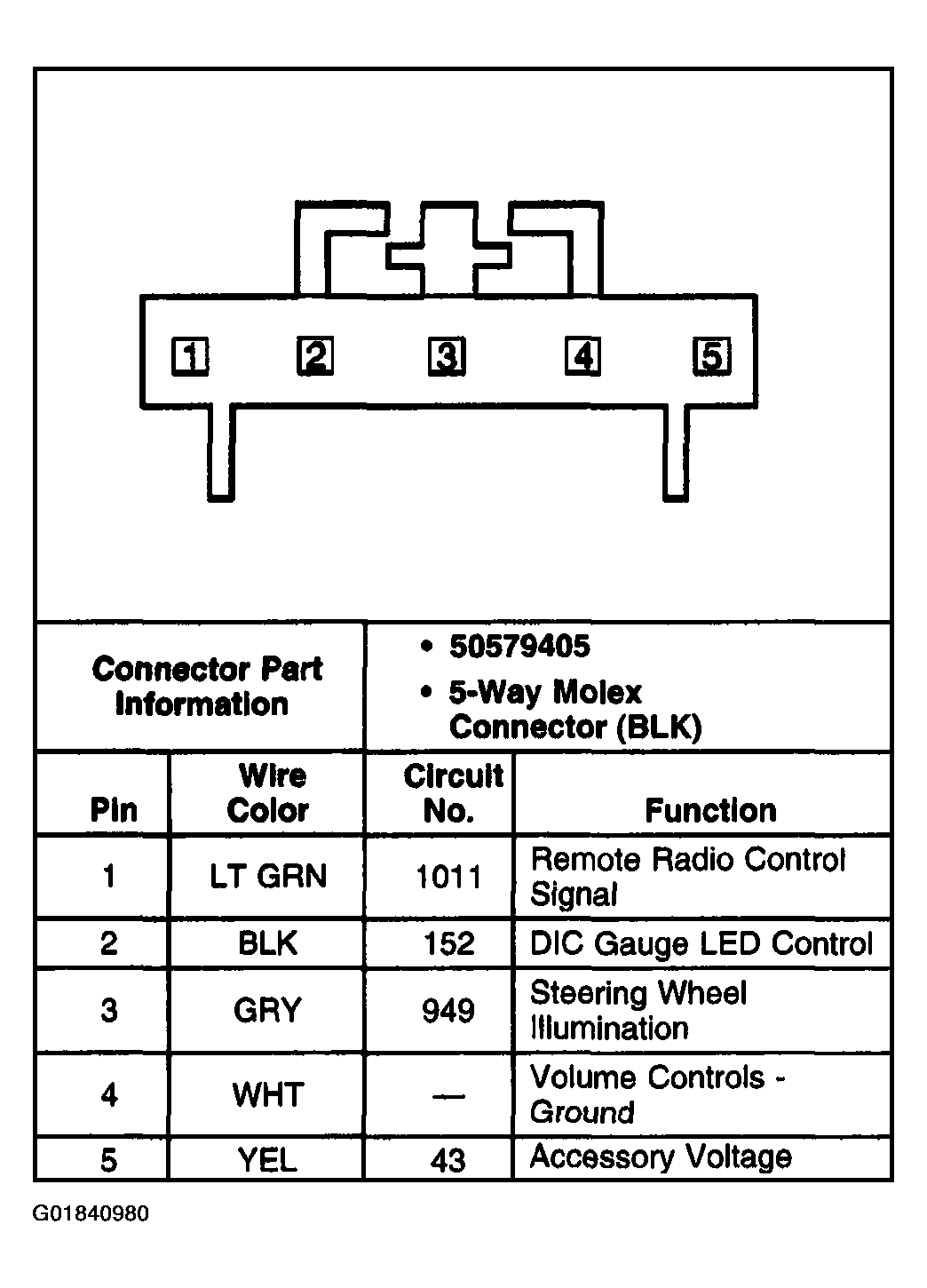

Fig 1: Steering Wheel Controls C1

G01840980

Courtesy of GENERAL MOTORS CORP.

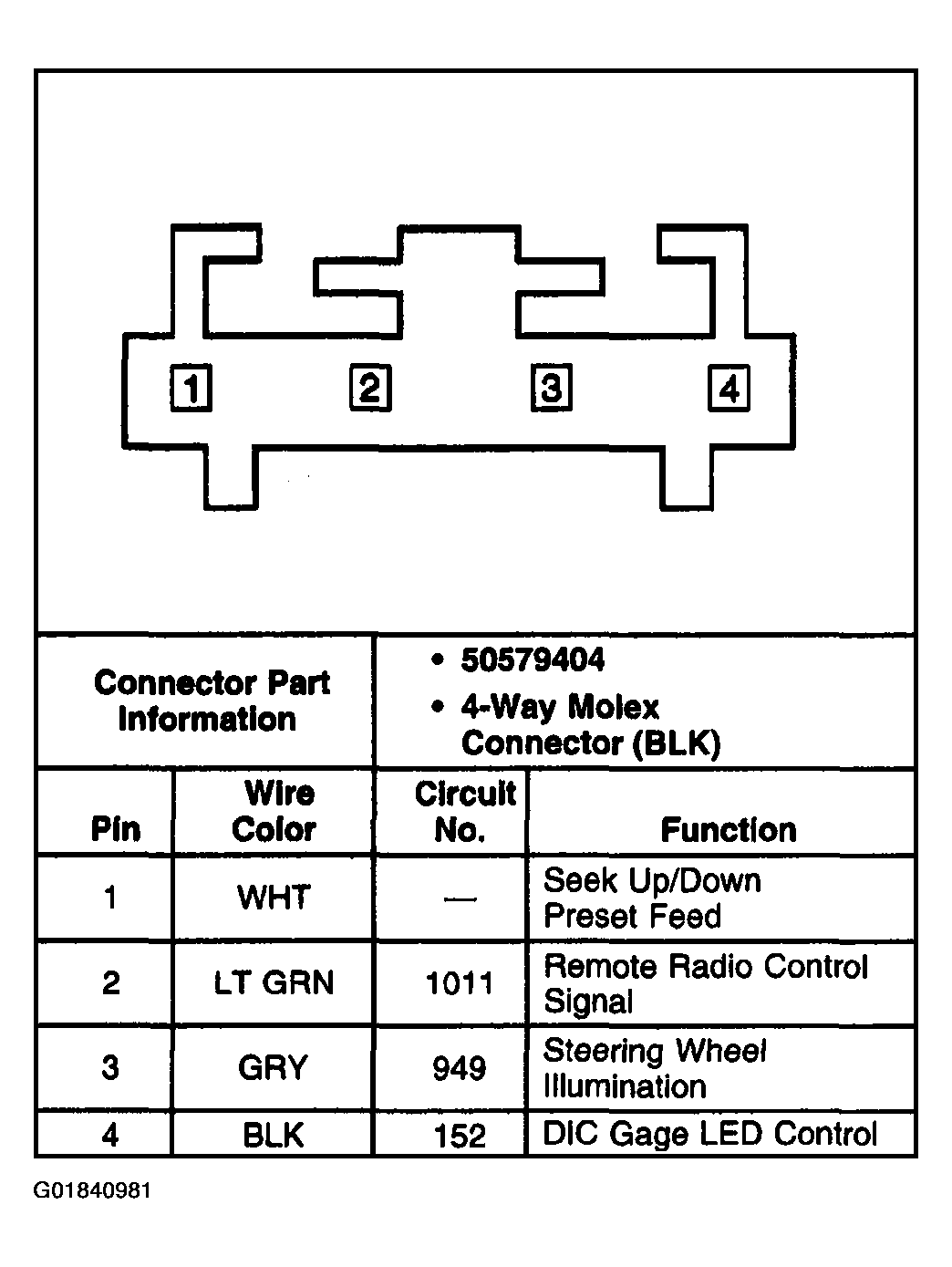

Fig 2: Steering Wheel Controls C2

G01840981

Courtesy of GENERAL MOTORS CORP.
