Speaker Connector End Views

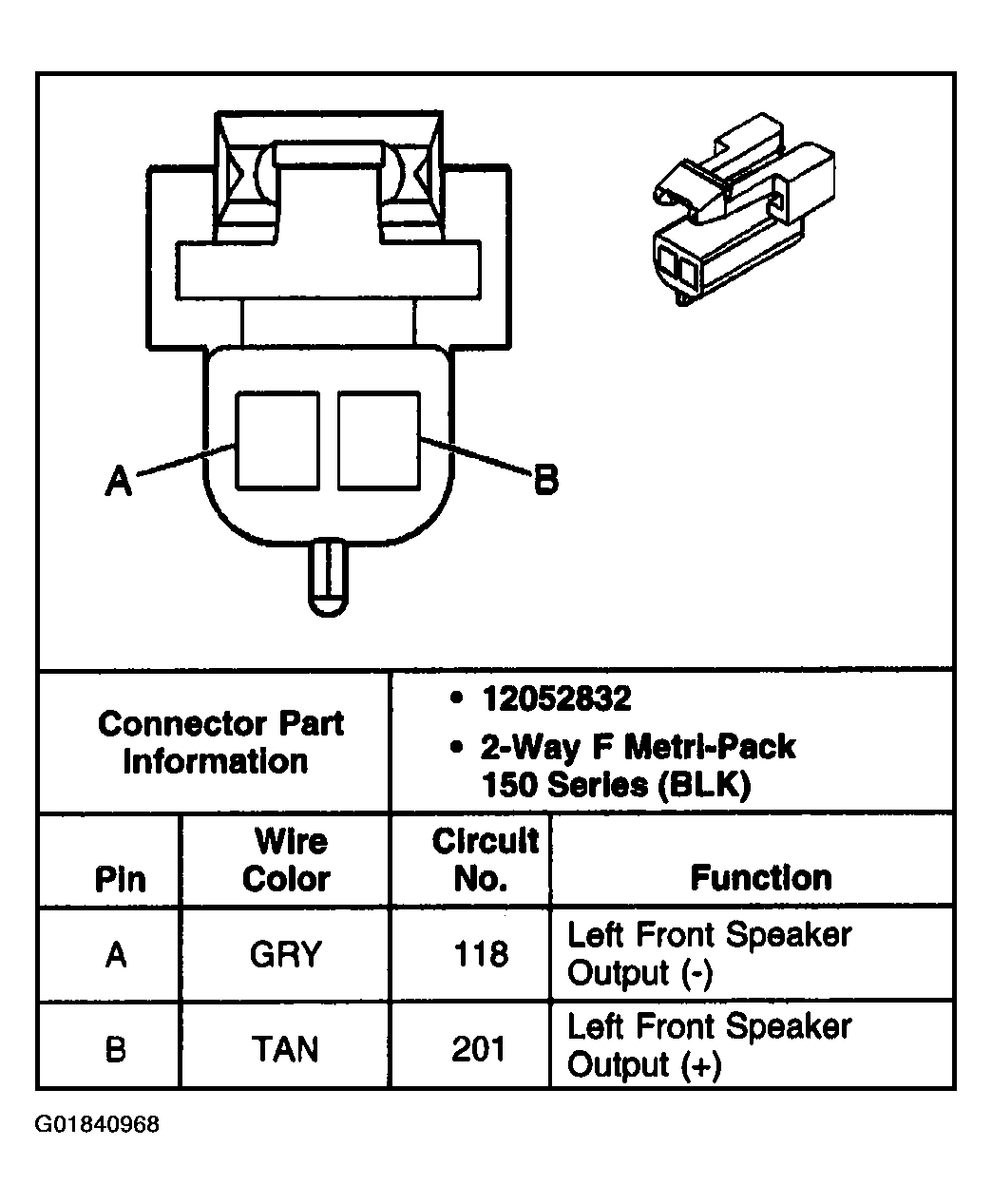

Fig 1: Speaker - LF - Pickup

G01840968

Courtesy of GENERAL MOTORS CORP.

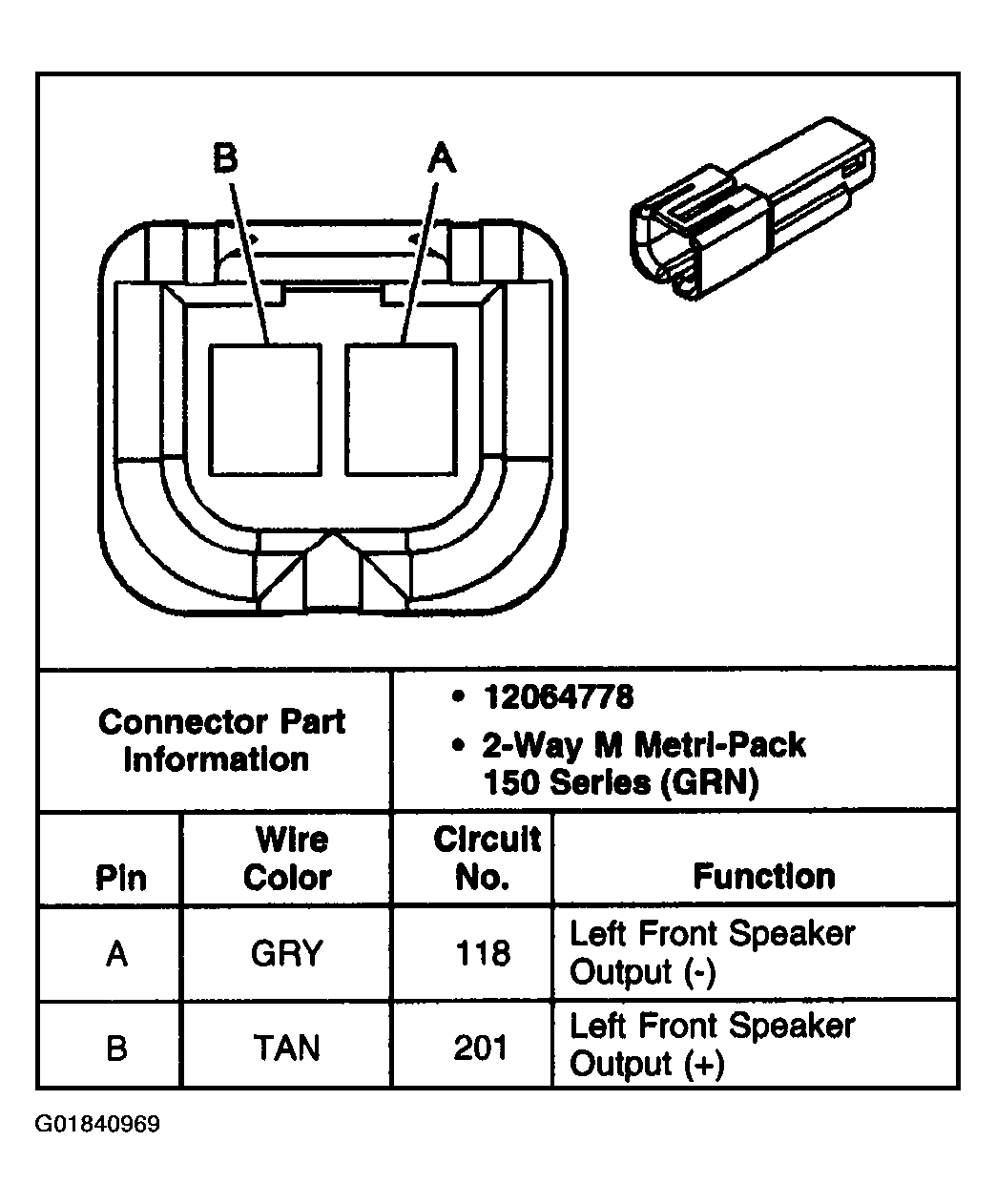

Fig 2: Speaker - LF - Utility

G01840969

Courtesy of GENERAL MOTORS CORP.

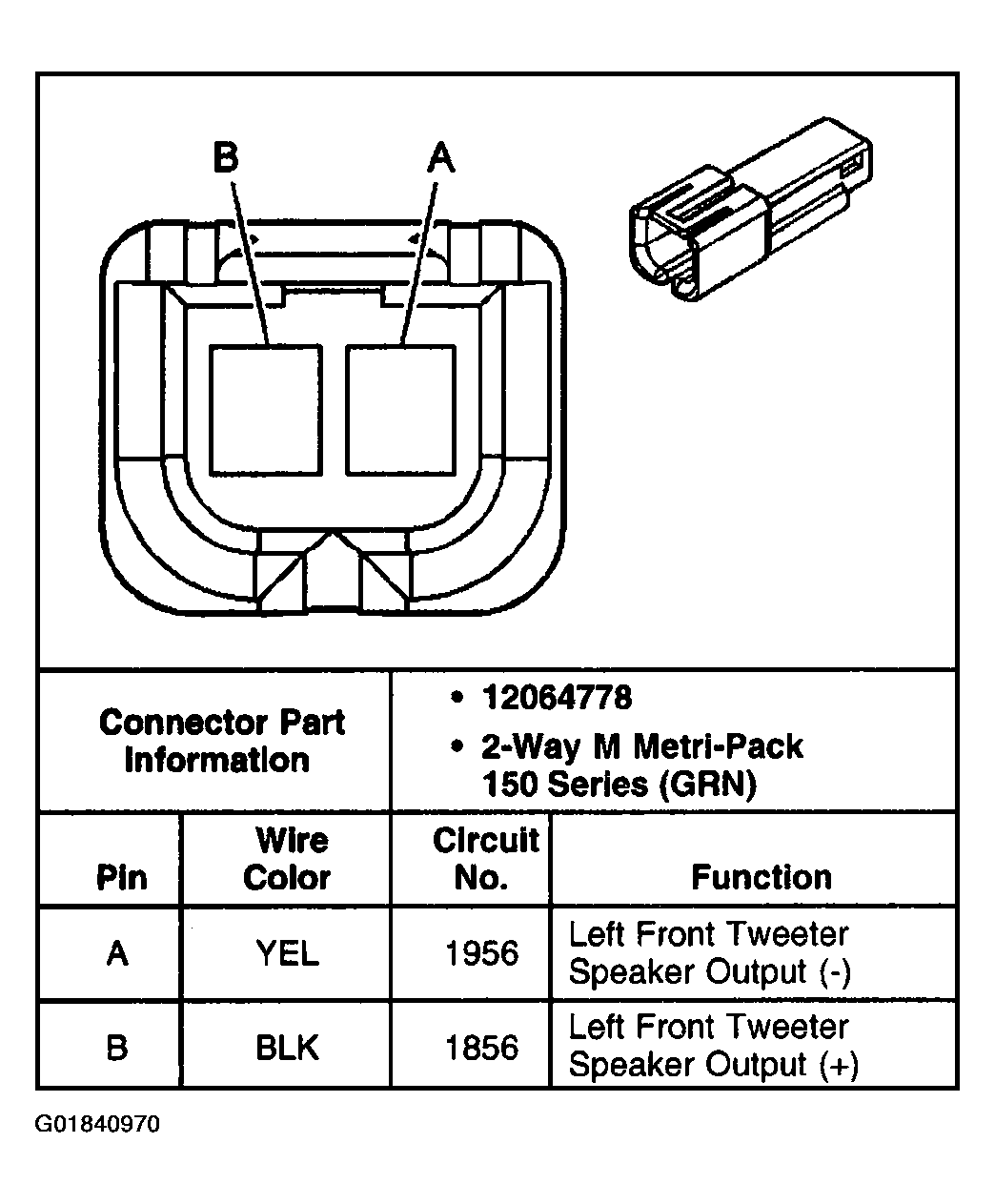

Fig 3: Speaker - LF Door, w/UQ3

G01840970

Courtesy of GENERAL MOTORS CORP.

Fig 4: Speaker - LF Door

G01840971

Courtesy of GENERAL MOTORS CORP.

Fig 5: Speaker - LR - 2-Door Utility

G01840972

Courtesy of GENERAL MOTORS CORP.

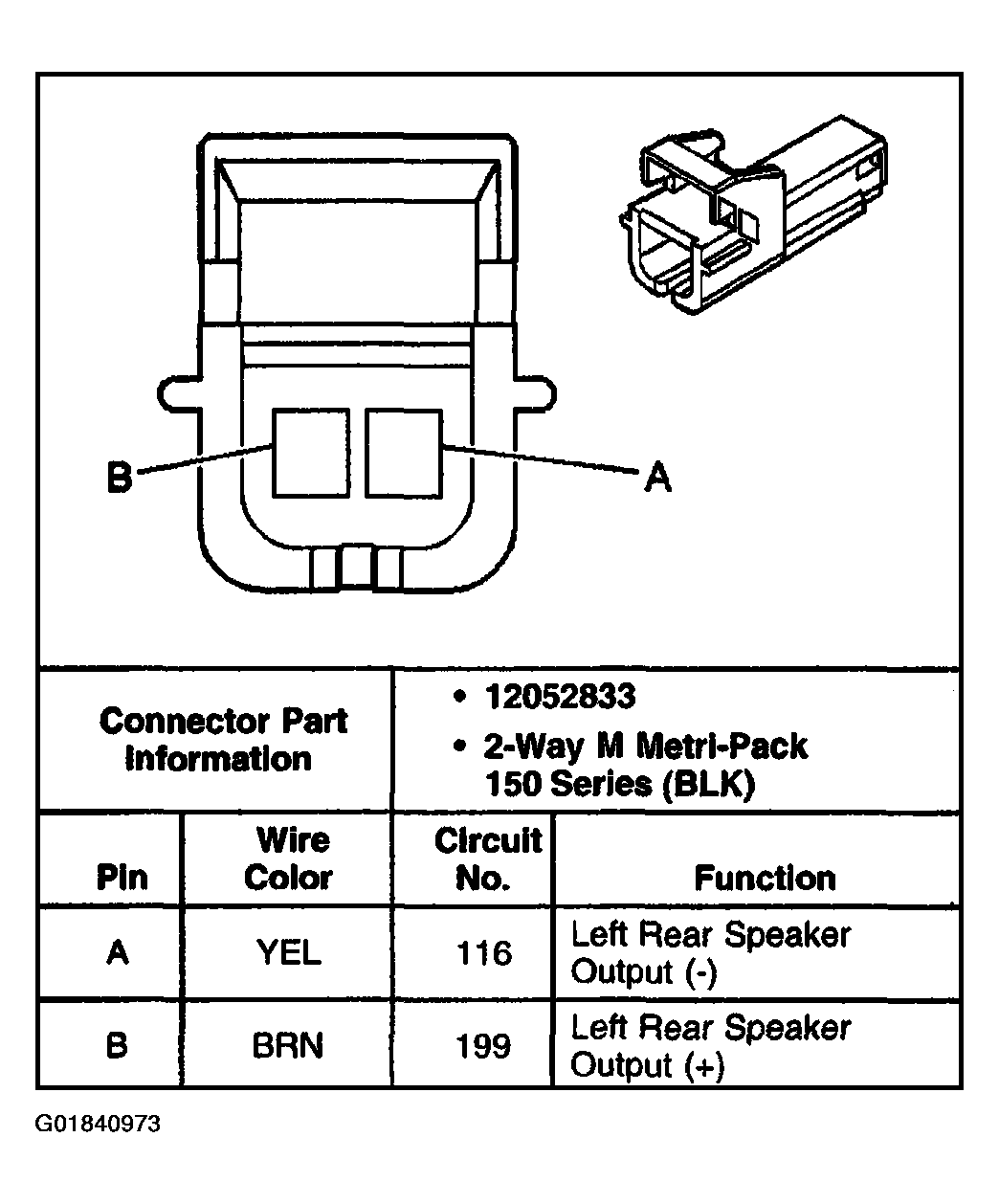

Fig 6: Speaker - LR Door - 4-Door Utility

G01840973

Courtesy of GENERAL MOTORS CORP.

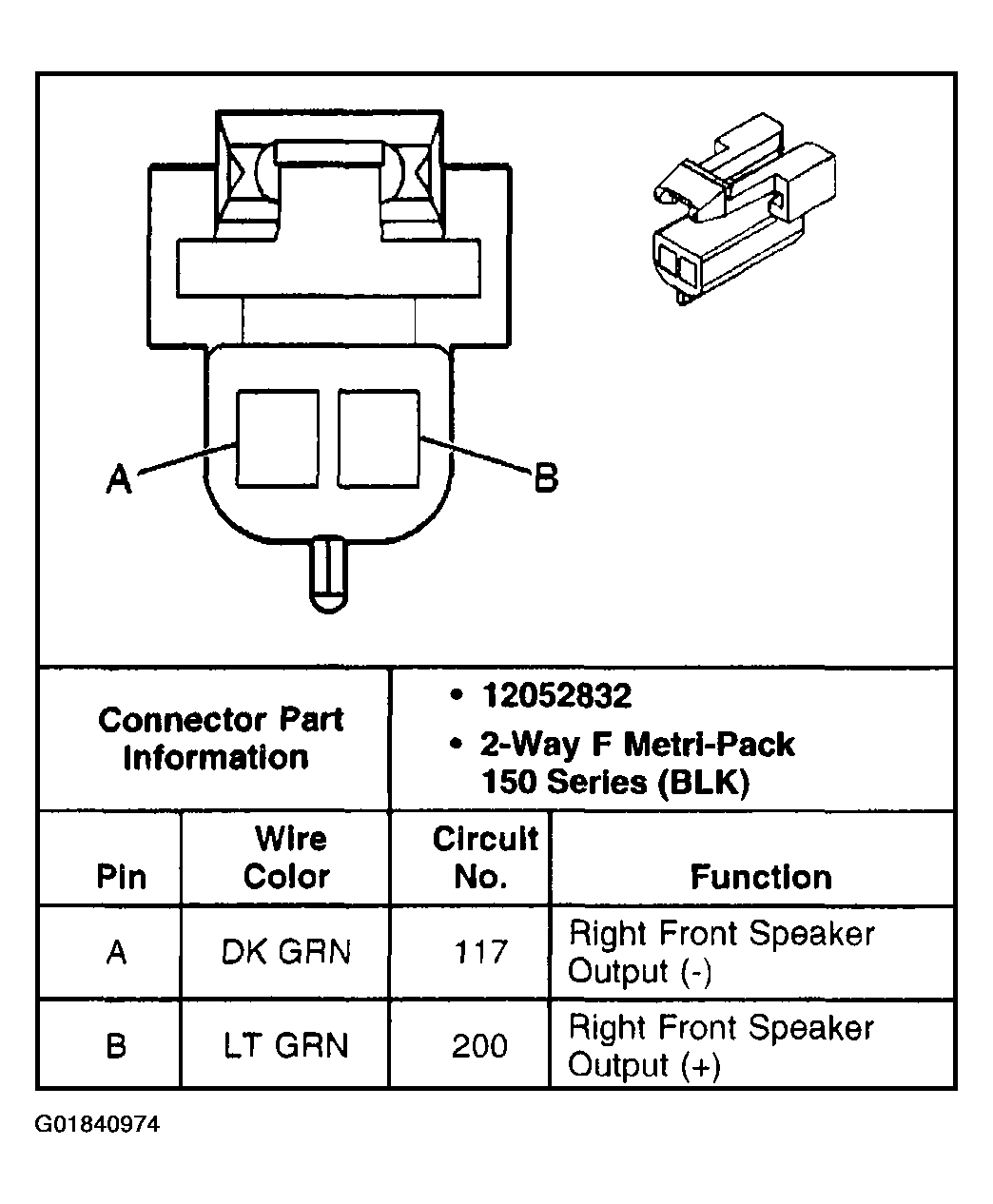

Fig 7: Speaker - RF - Pickup

G01840974

Courtesy of GENERAL MOTORS CORP.

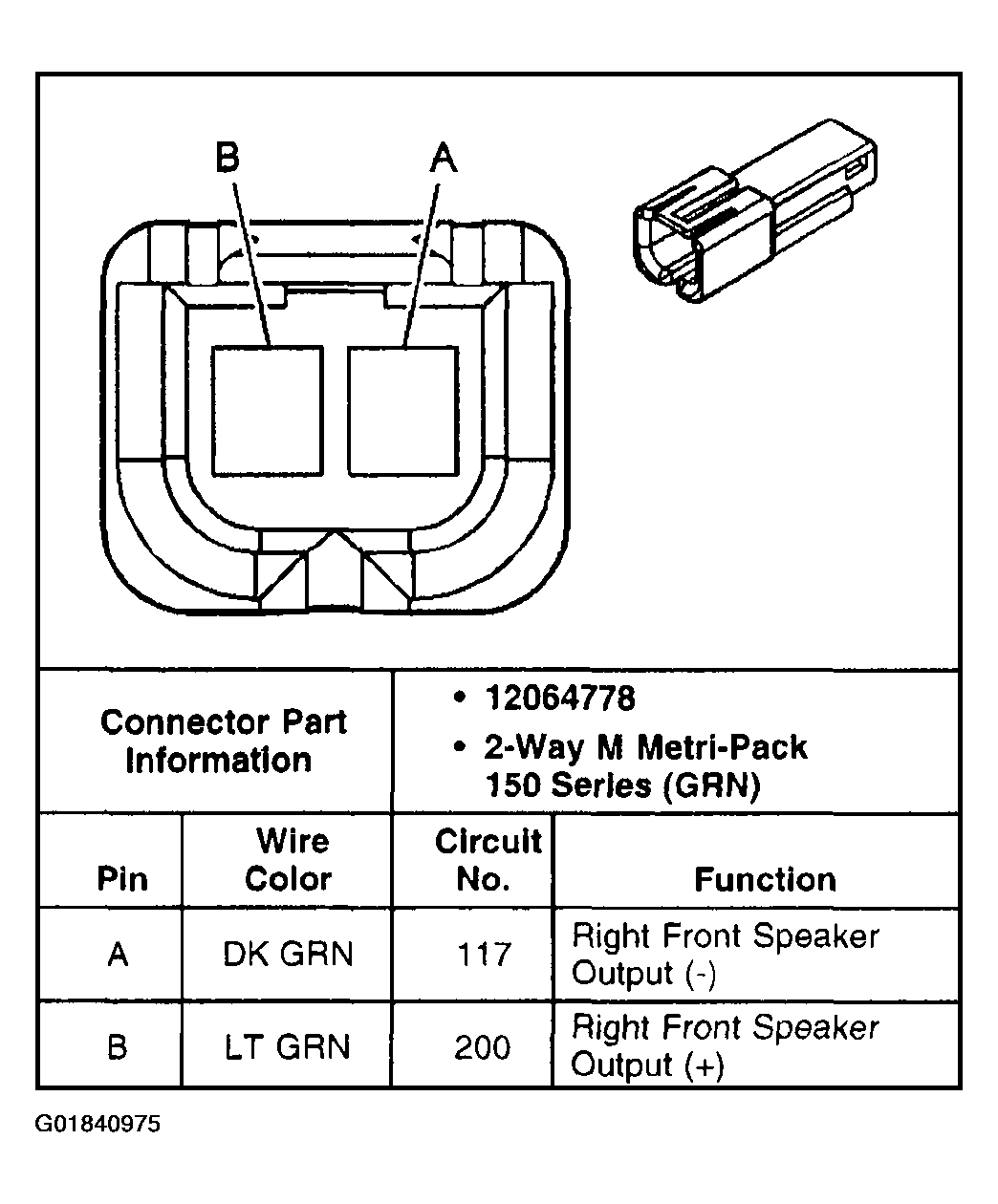

Fig 8: Speaker - RF - Utility w/o UQ3

G01840975

Courtesy of GENERAL MOTORS CORP.

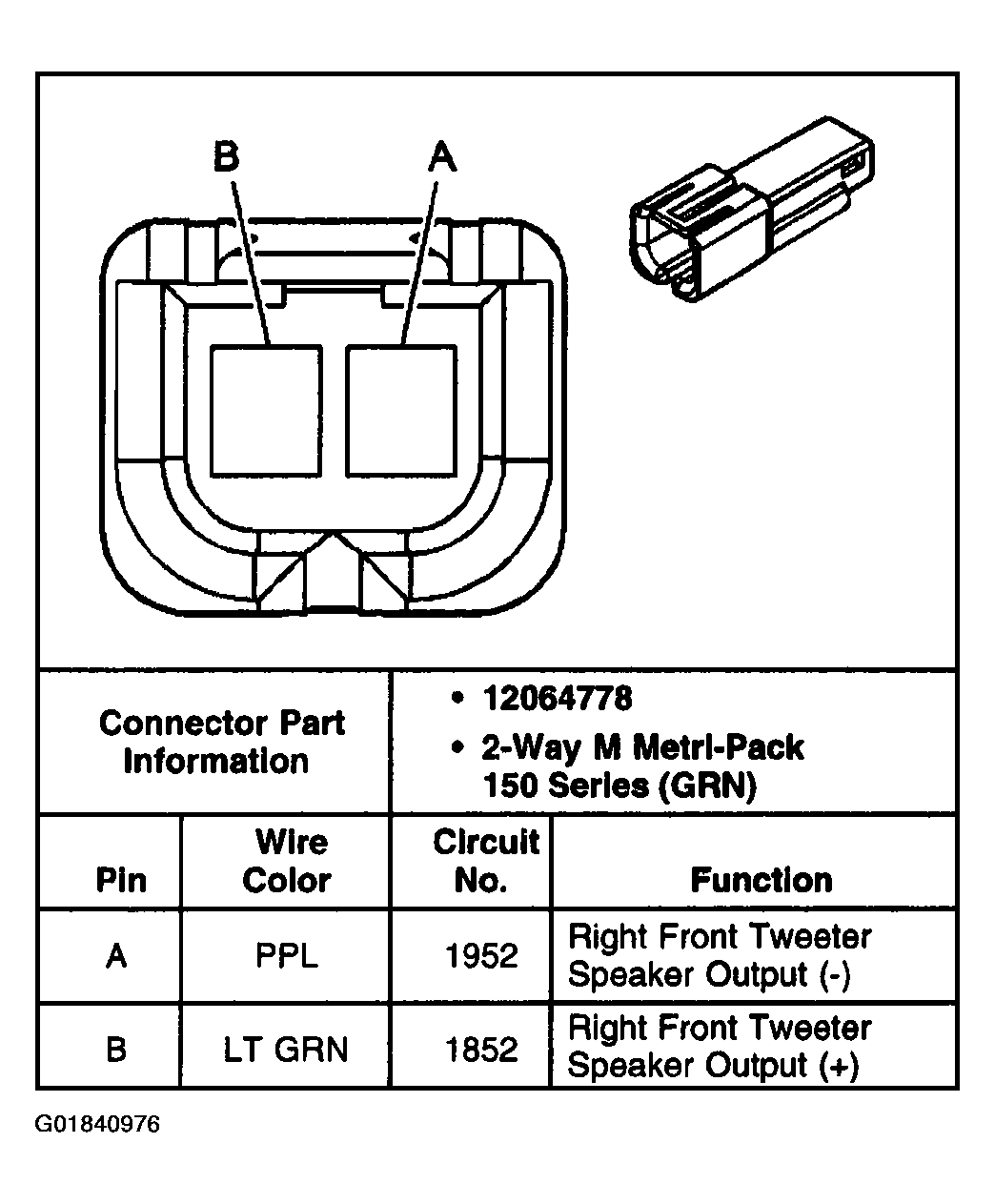

Fig 9: Speaker - RF Door, w/UQ3

G01840976

Courtesy of GENERAL MOTORS CORP.

Fig 10: Speaker - RF Door

G01840977

Courtesy of GENERAL MOTORS CORP.

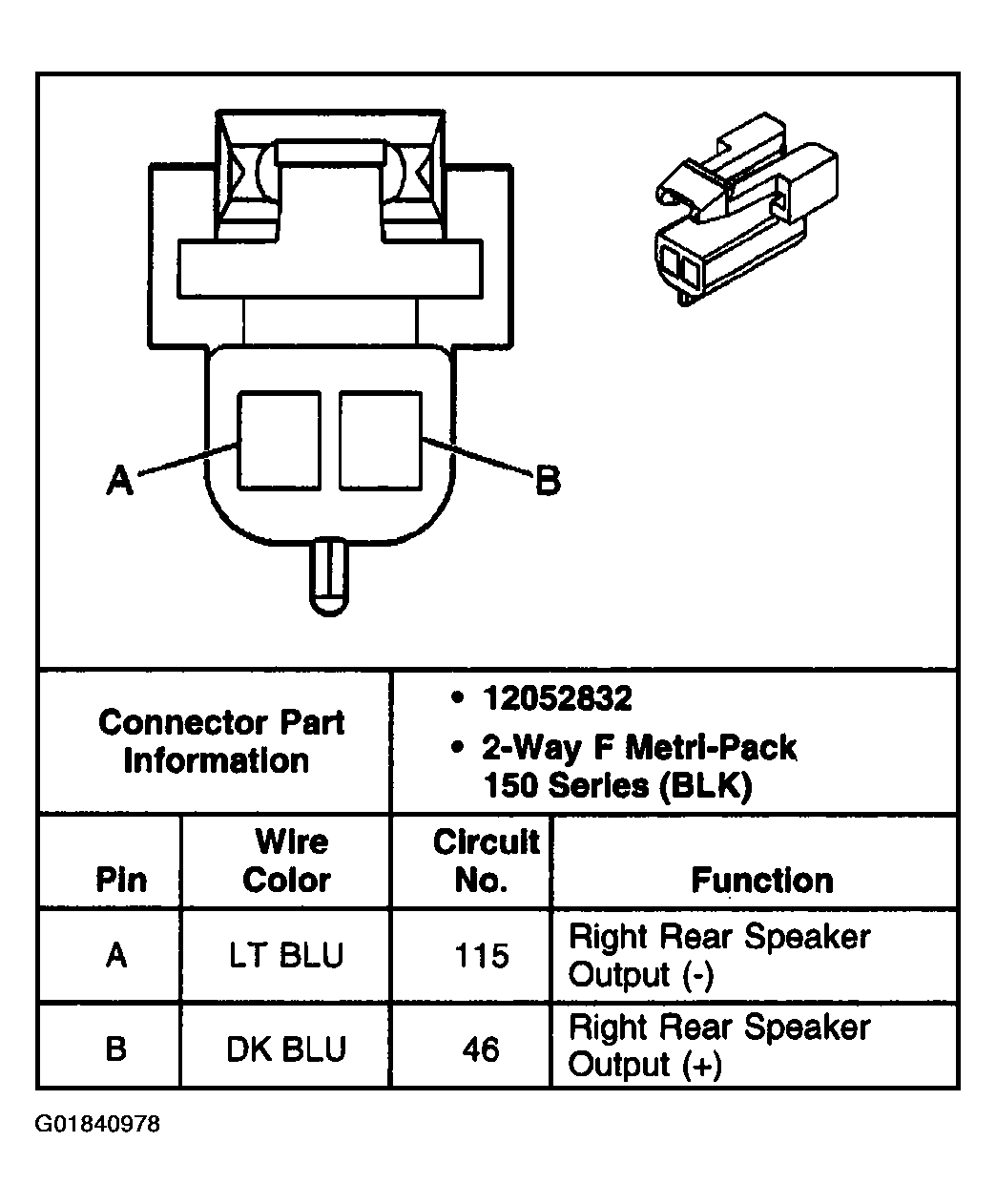

Fig 11: Speaker - RR - 2-Door Utility

G01840978

Courtesy of GENERAL MOTORS CORP.

Fig 12: Speaker - RR Door - 4-Door Utility

G01840979

Courtesy of GENERAL MOTORS CORP.
