Entertainment Connector End Views
>>
Remote Playback Device Connector End Views
Remote Playback Device Connector End Views

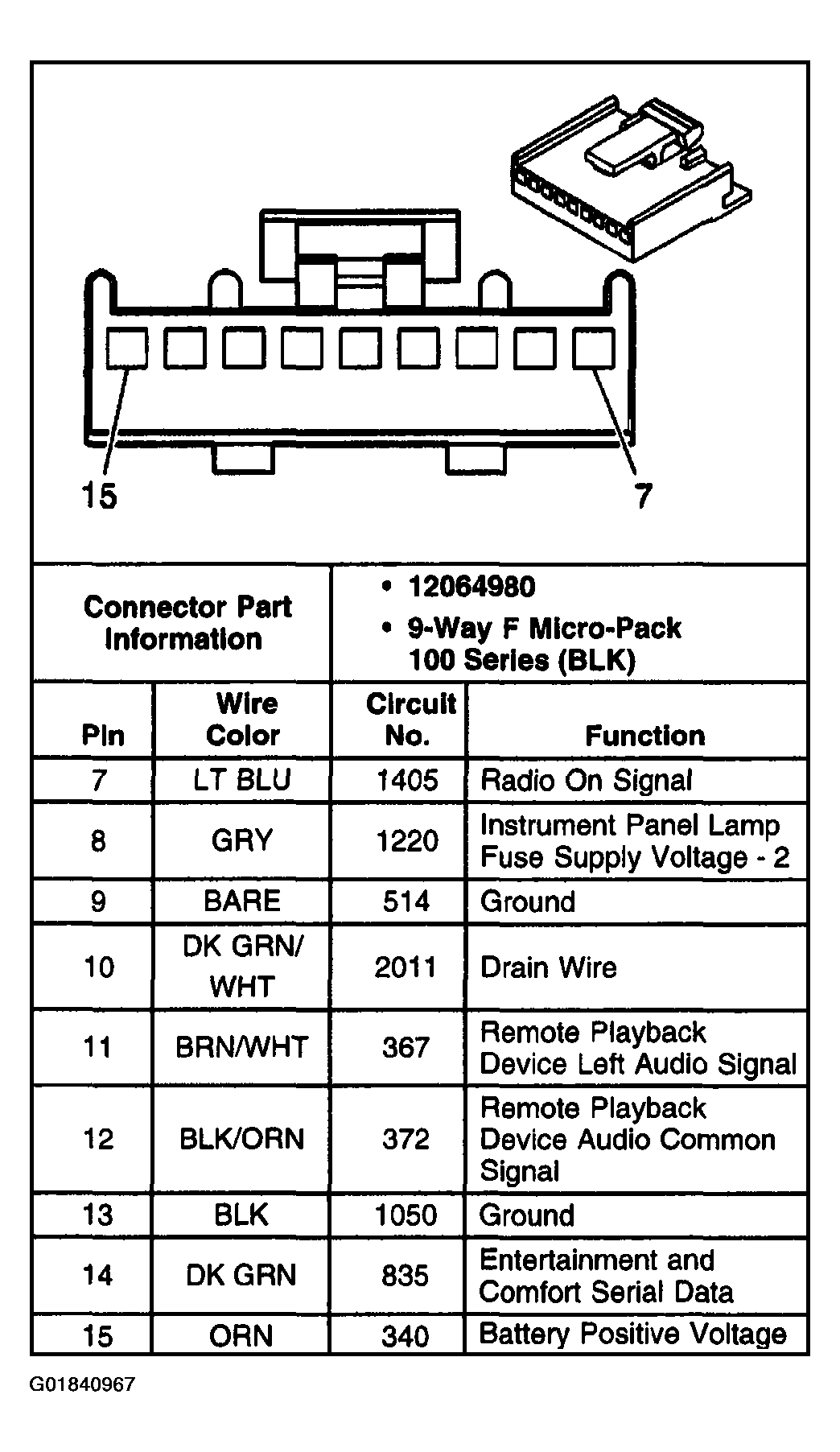

Fig 1: Remote Playback Device - CD or Cassette Player
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
