Radio Connector End Views

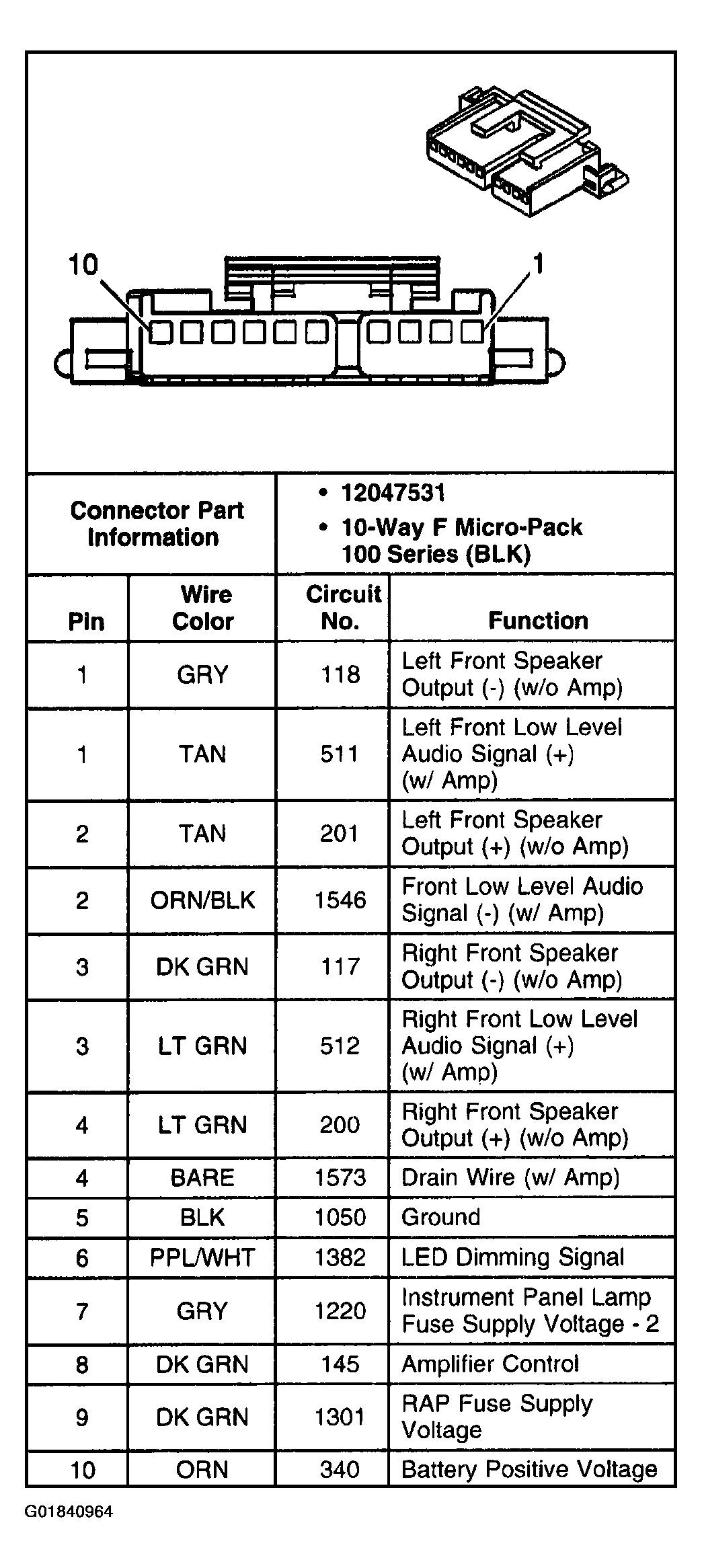

Fig 1: Radio Connector C1
G01840964Courtesy of GENERAL MOTORS CORP.

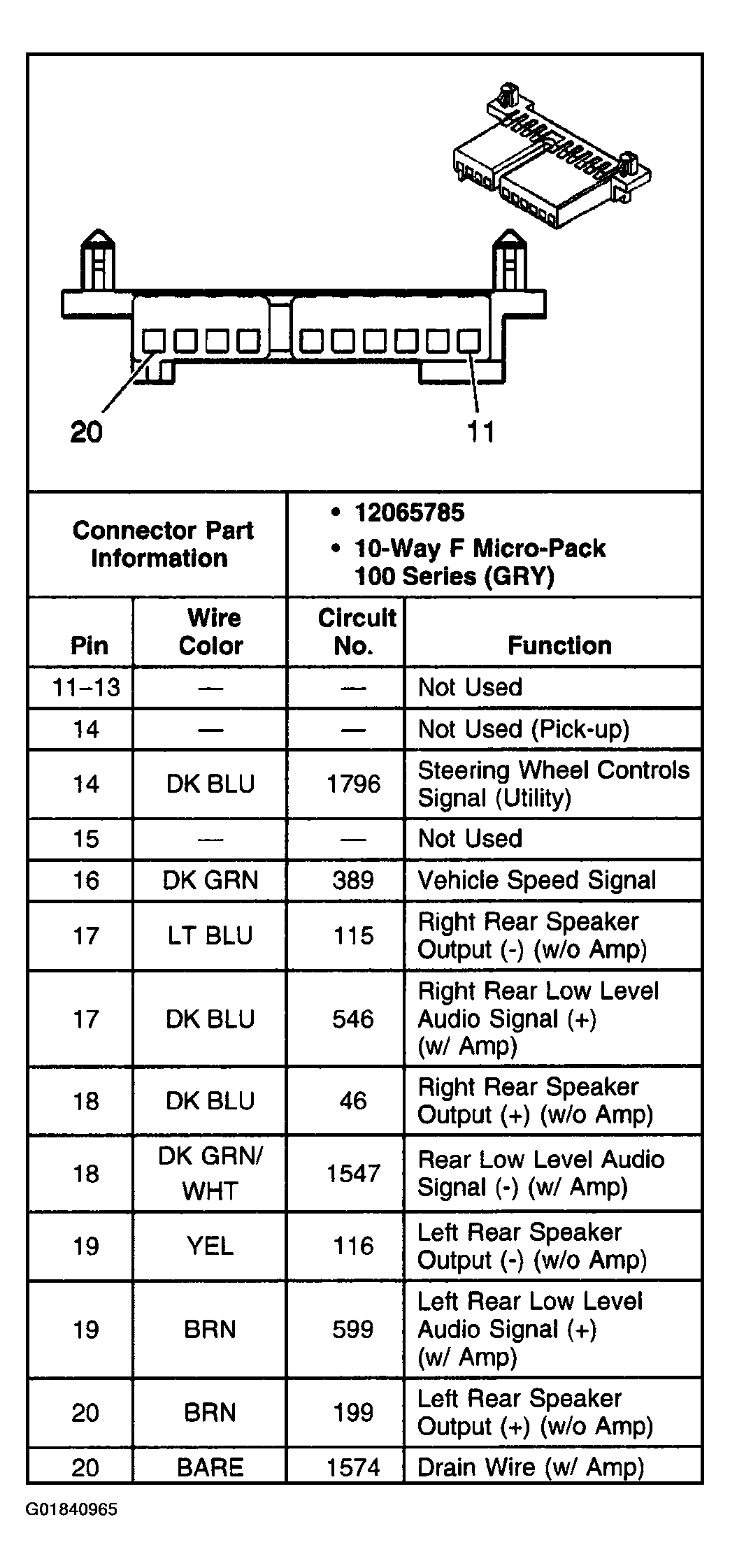

Fig 2: Radio Connector C2
G01840965Courtesy of GENERAL MOTORS CORP.

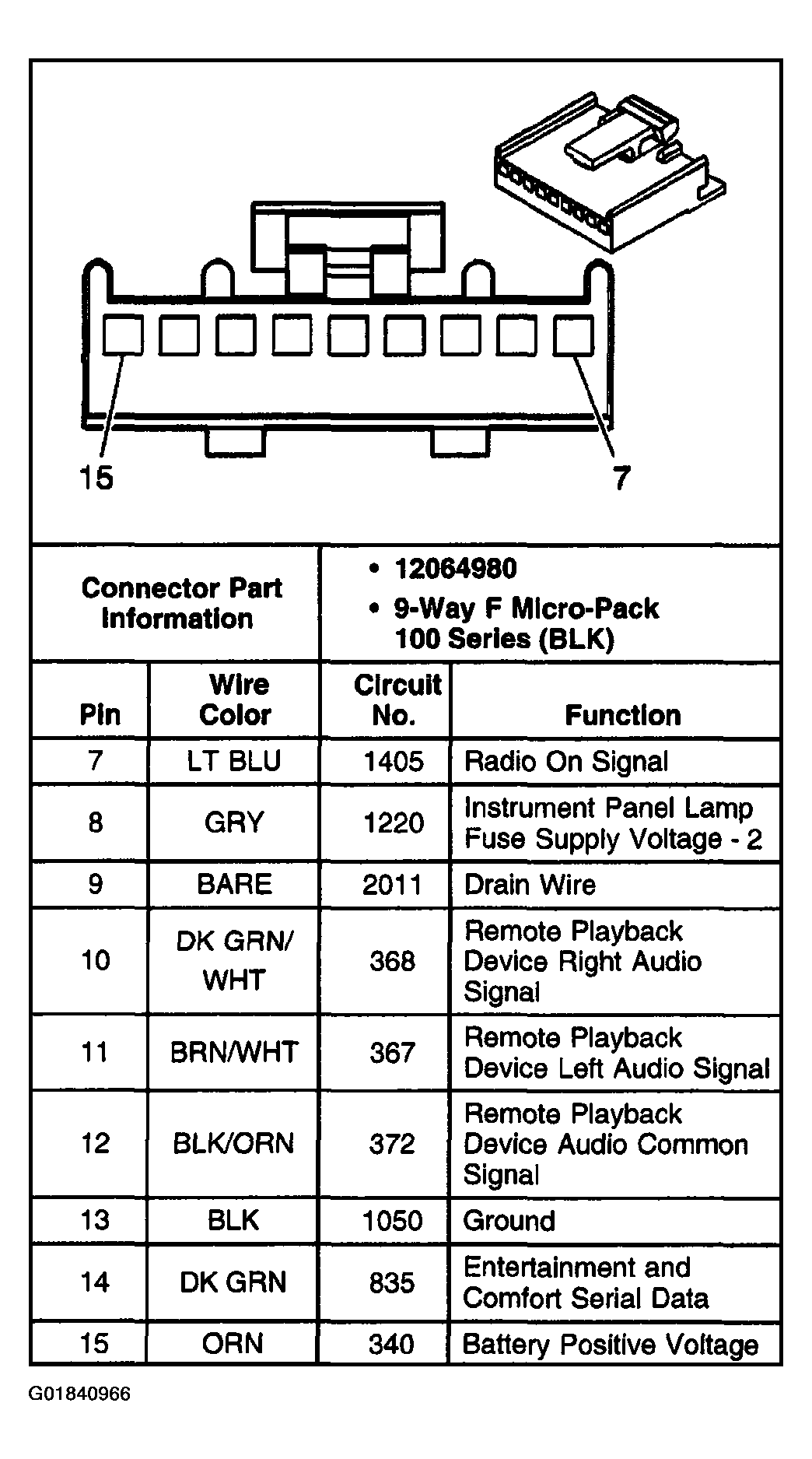

Fig 3: Radio Connector C3 (w/ Remote Playback Device)
G01840966Courtesy of GENERAL MOTORS CORP.
