Component Locator
>>
Entertainment Component Views
>>
Rear Door Component Views
Rear Door Component Views

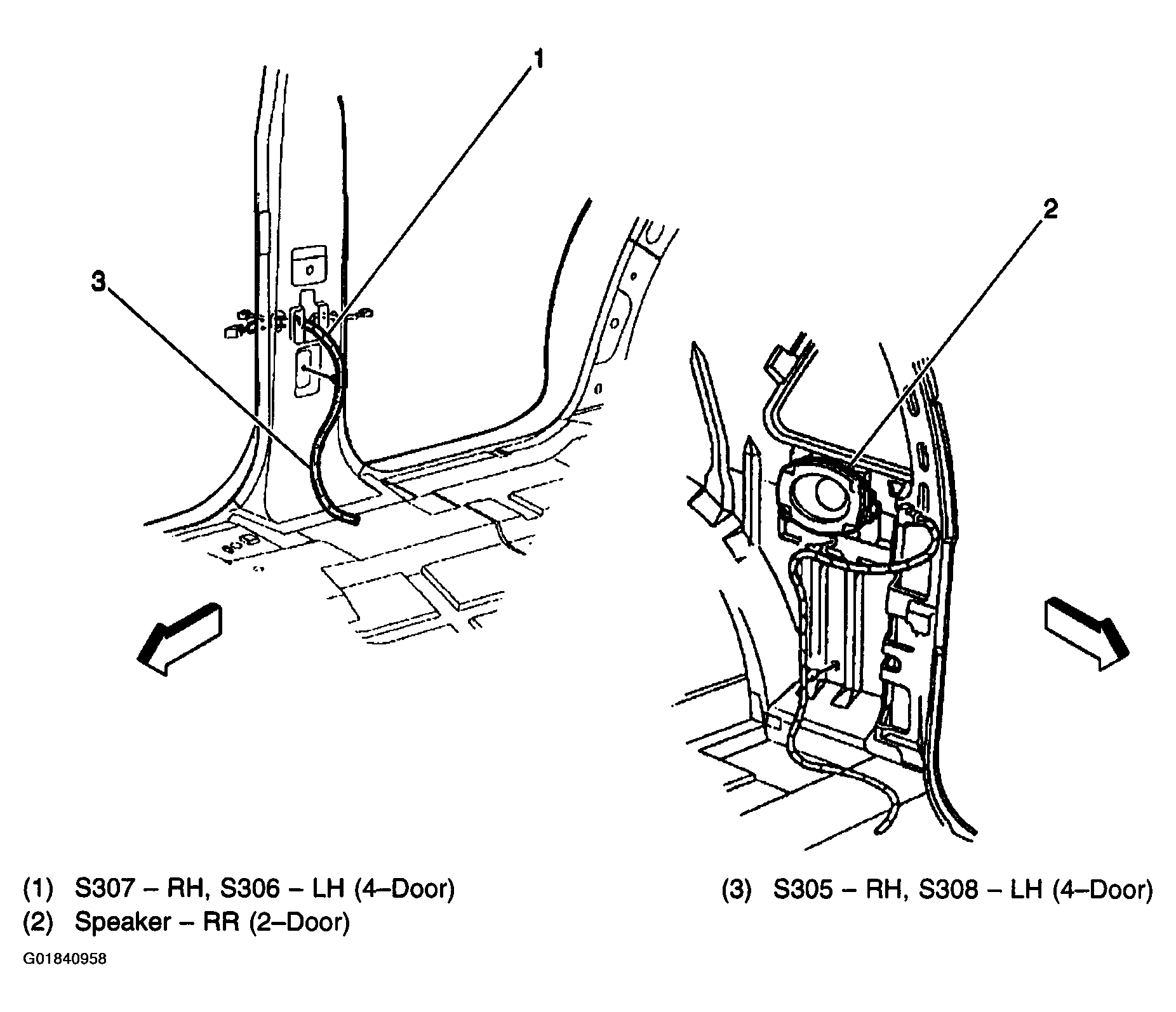

Fig 1: Rear Door Details, RH Shown, LH Similar - 2 & 4-Door Utility
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
