Blazer 4D Utility, 4WD, Part Time
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Schematic & Routing Diagrams
>>
Cruise Control Schematics
Cruise Control Schematics

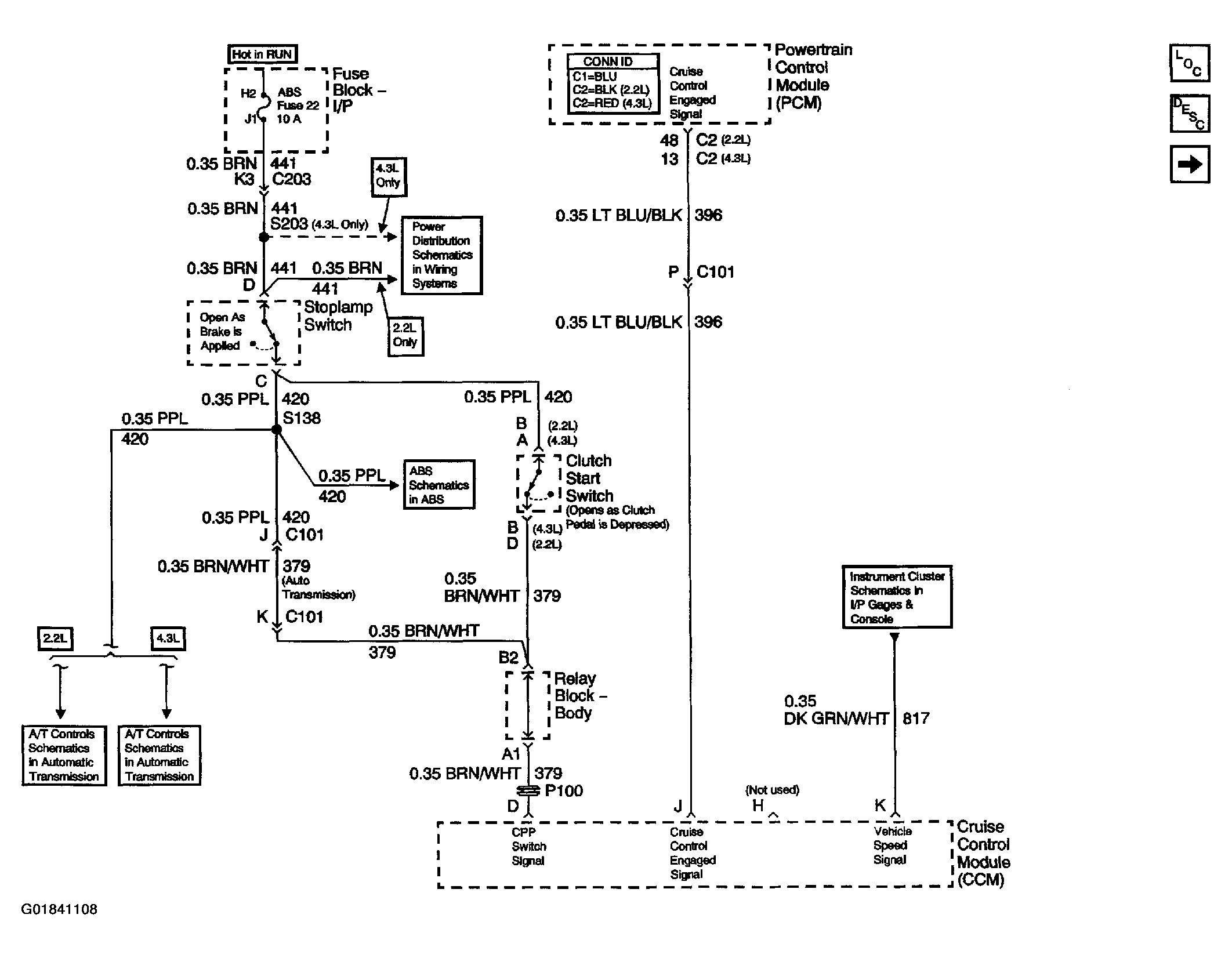

Fig 1: Cruise Control Schematics (Clutch Pedal Position Switch, Stop Lamp Switch, PCM & Cruise Control Module)
Courtesy of GENERAL MOTORS CORP.

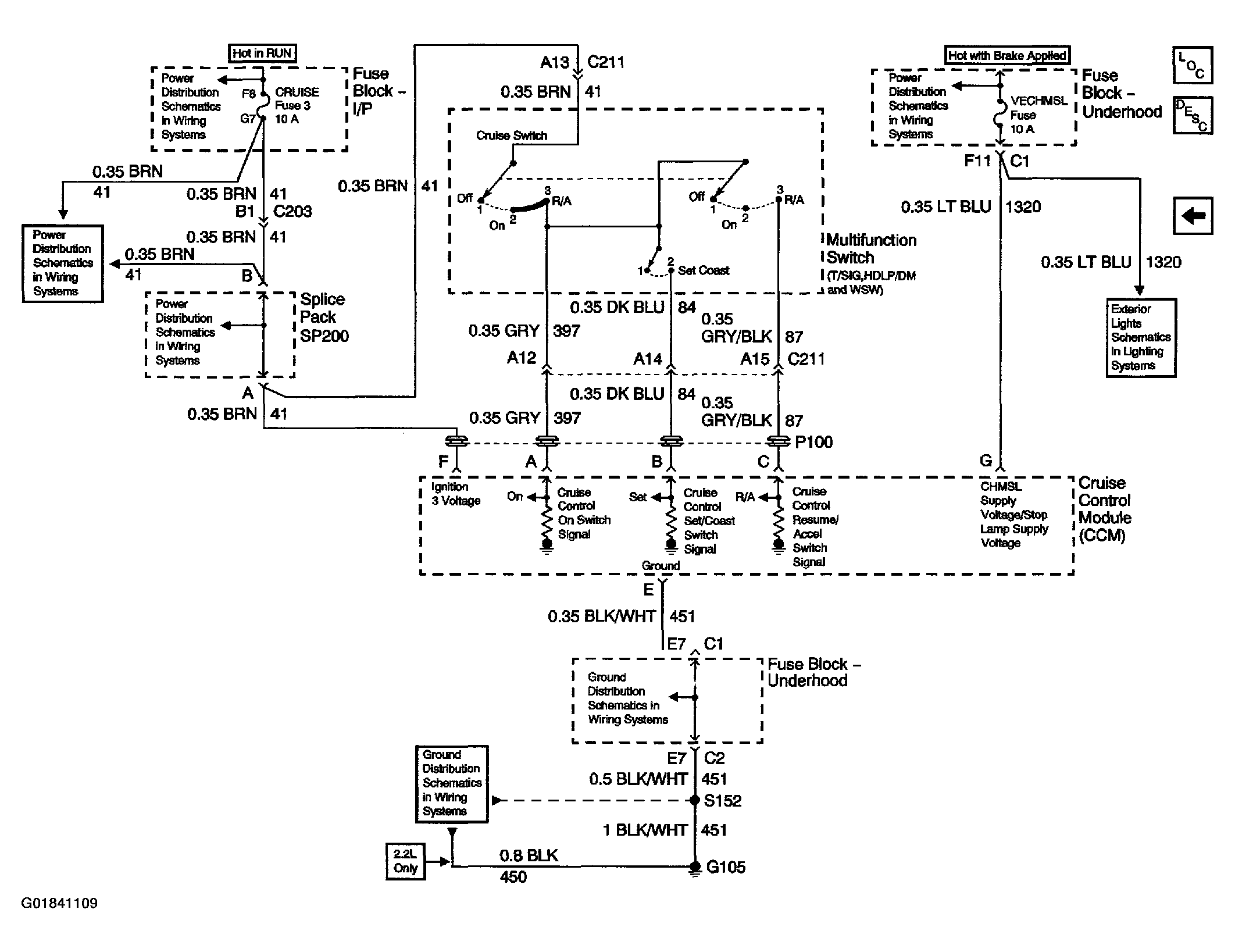

Fig 2: Cruise Control Schematics (CRUISE Fuse, Multifunction Switch & Cruise Control Module)
Courtesy of GENERAL MOTORS CORP.
