Removal Procedure

IMPORTANT:

The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION & OPERATION for the complete operational details.

NOTE: Do not remove the C-clip from the cruise control connector. The C-clip was not designed for removal. Damage may occur when removing.

Open the hood.

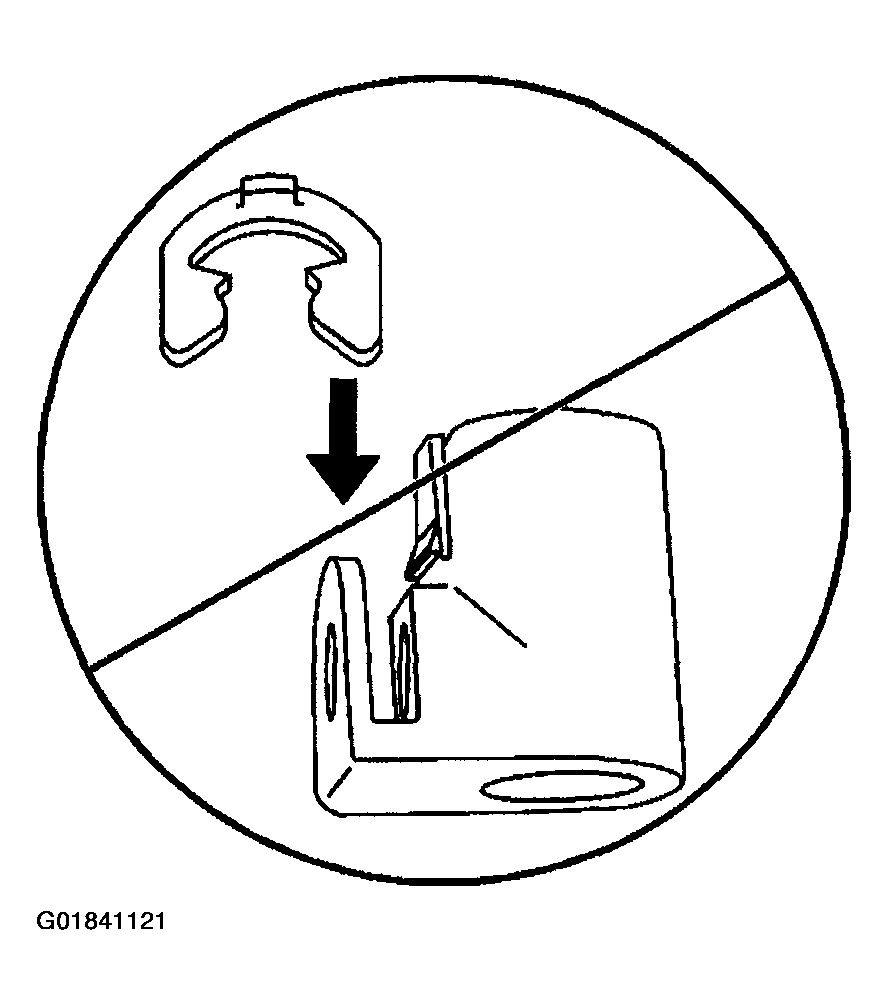

Fig 1: Identifying Cruise Control Connector C-Clip
Courtesy of GENERAL MOTORS CORP.
Do not remove the adjuster screw from the end of the cruise control cable. No adjustment will be needed.

Fig 2: Identifying Cruise Control Cable Adjuster Screw
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control cable from the throttle linkage.
Use a suitable tool to lightly pry off the end of the cruise control cable from the stud on the throttle lever.

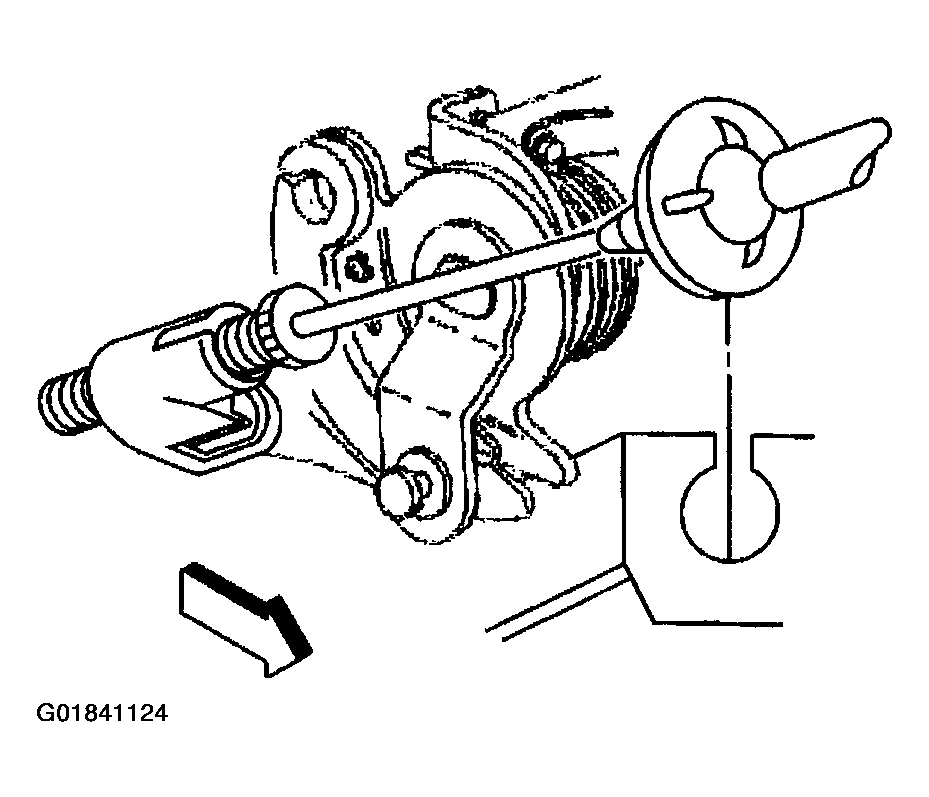

Fig 3: Locating Cruise Control Cable & Throttle Linkage
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable from the round hole in the engine cable bracket.

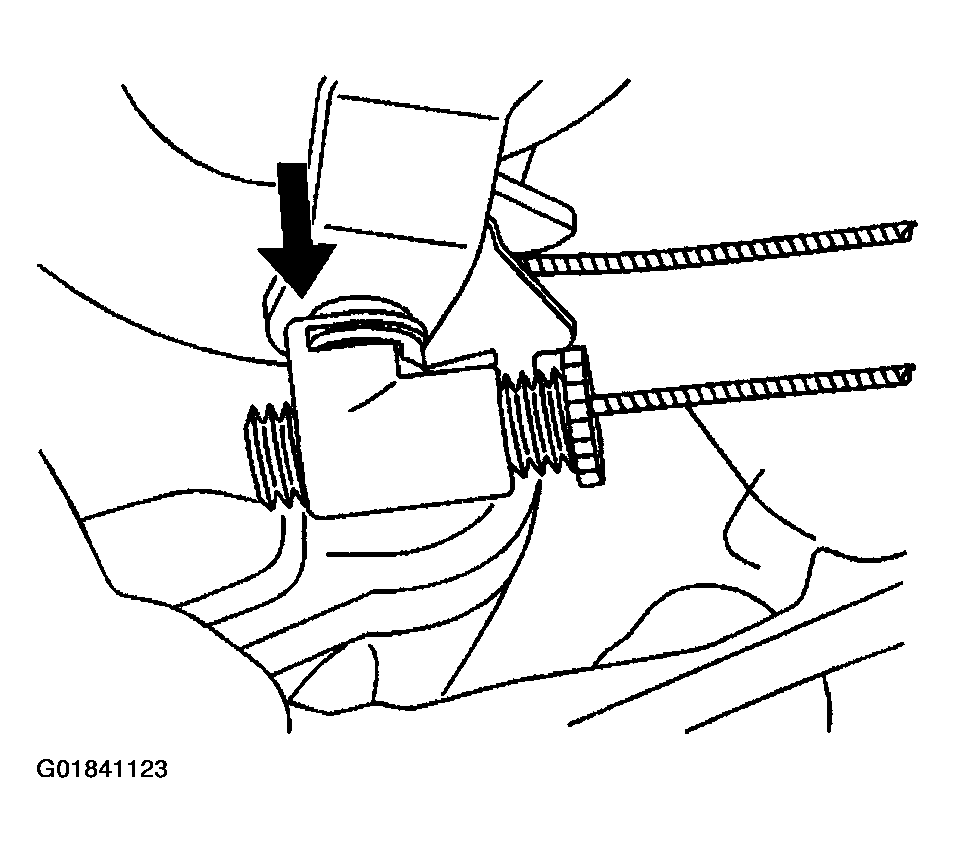

Fig 4: Locating Cruise Control Cable & Engine Cable Bracket
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable locator clip from the rectangular hole in the routing bracket.

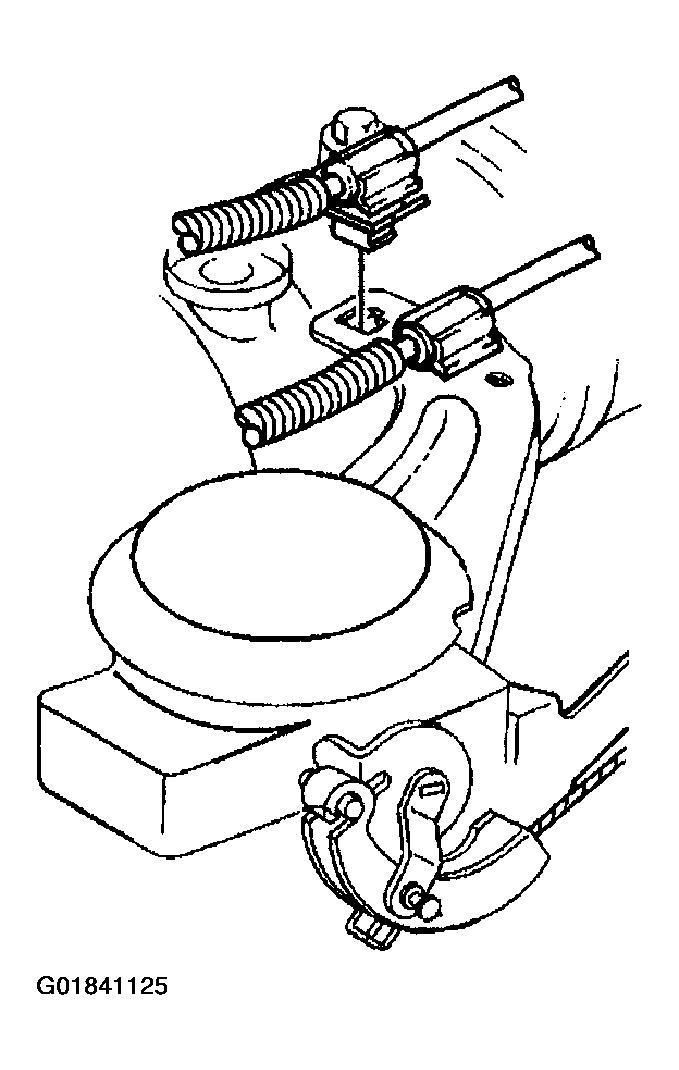

Fig 5: Locating Cruise Control Cable Locator Clip
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control cable from the cruise control module housing.

IMPORTANT: Do not allow the cruise control ribbon (1) to retract into the module assembly.

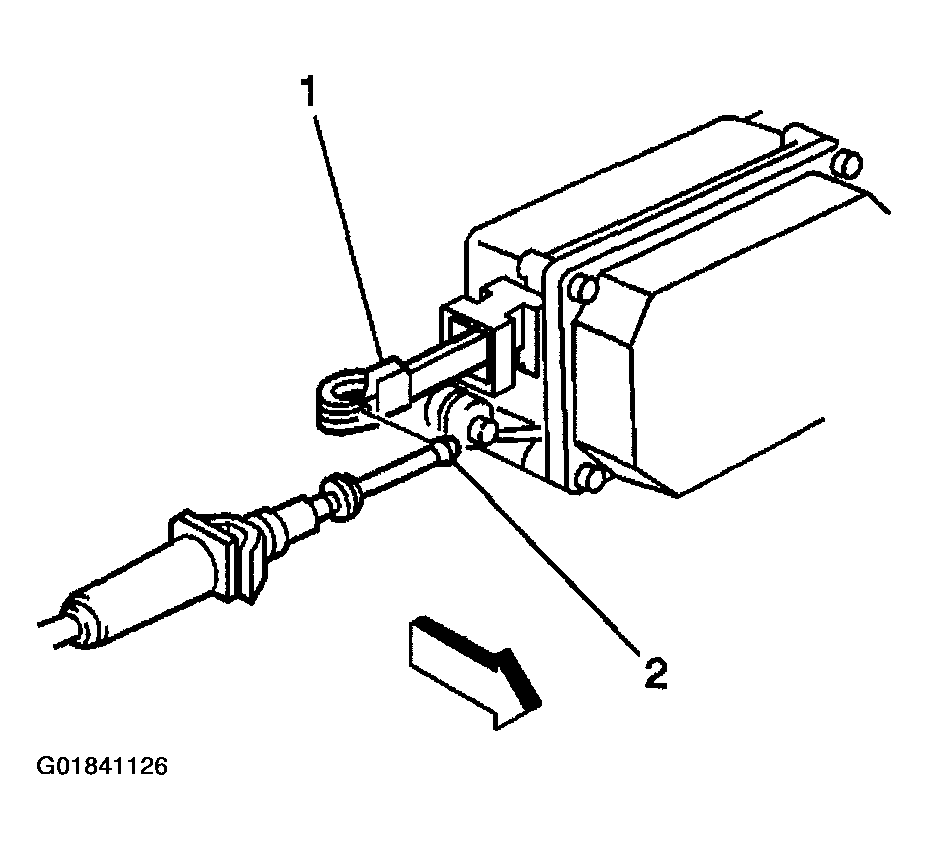

Fig 6: Locating Cruise Control Cable Bead

Courtesy of GENERAL MOTORS CORP.

Disconnect the cruise control cable bead (2) from the end of the ribbon (1).
Remove the cruise control cable from the vehicle.
