Installation Procedure

  1. Install the cruise control cable to the vehicle.
  2. Remove all bends and twists from the cruise control module ribbon and cable, by rotating until removed.
    Fig 1: Identifying Twisted Cruise Control Module Ribbon
    G01841127Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Do not twist the cruise control module ribbon (1).
    • Pull the cruise control cable (2) to verify retention to the ribbon (1).
  3. Attach the cruise control cable bead (2) to the cruise control module ribbon (1).
    Fig 2: Locating Cruise Control Cable Bead
    G01841128Courtesy of GENERAL MOTORS CORP.
  4. Check the orientation of the cruise control ribbon buckle to the cable end fitting.

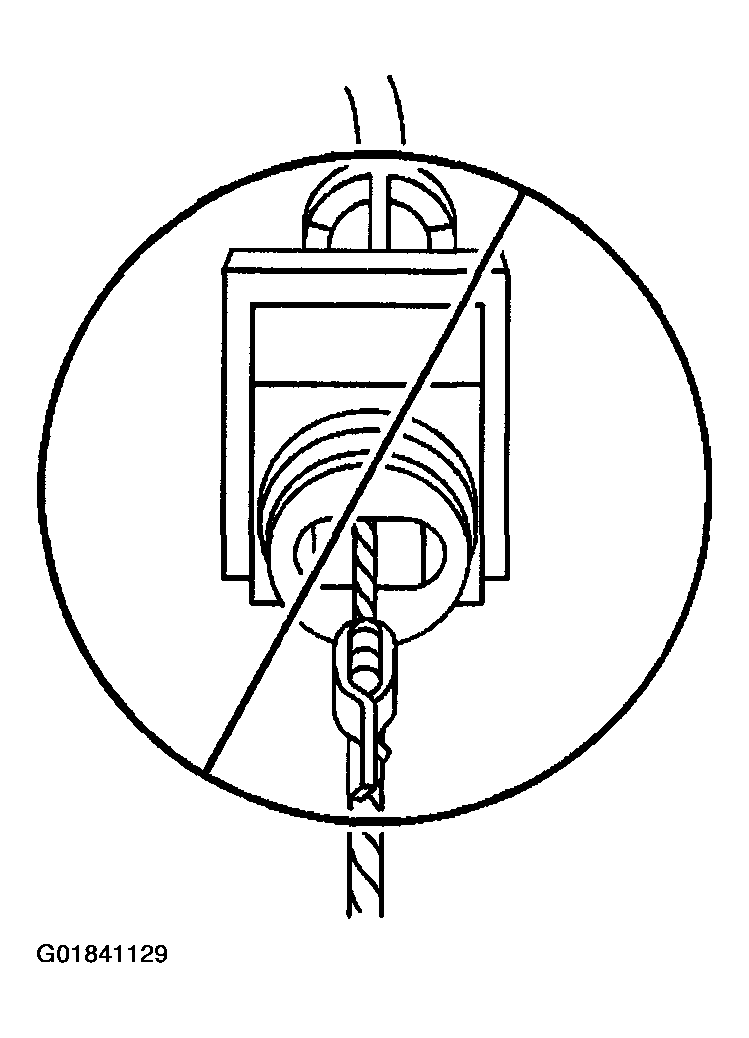

    Fig 3: Locating Cruise Control Ribbon Buckle & Cable End Fitting
    G01841129Courtesy of GENERAL MOTORS CORP.
  5. Slide the cruise control cable conduit over the ribbon.

    1. 5.1

      Install the tangs to the cruise control module housing.

    2. 5.2

      Ensure that the tangs snap securely into place.
    Fig 4: Positioning Cruise Control Cable Conduit
    G01841130Courtesy of GENERAL MOTORS CORP.
  6. Snap the cruise control cable engine-end fitting (2) over the stud (1) on the throttle cam lever.

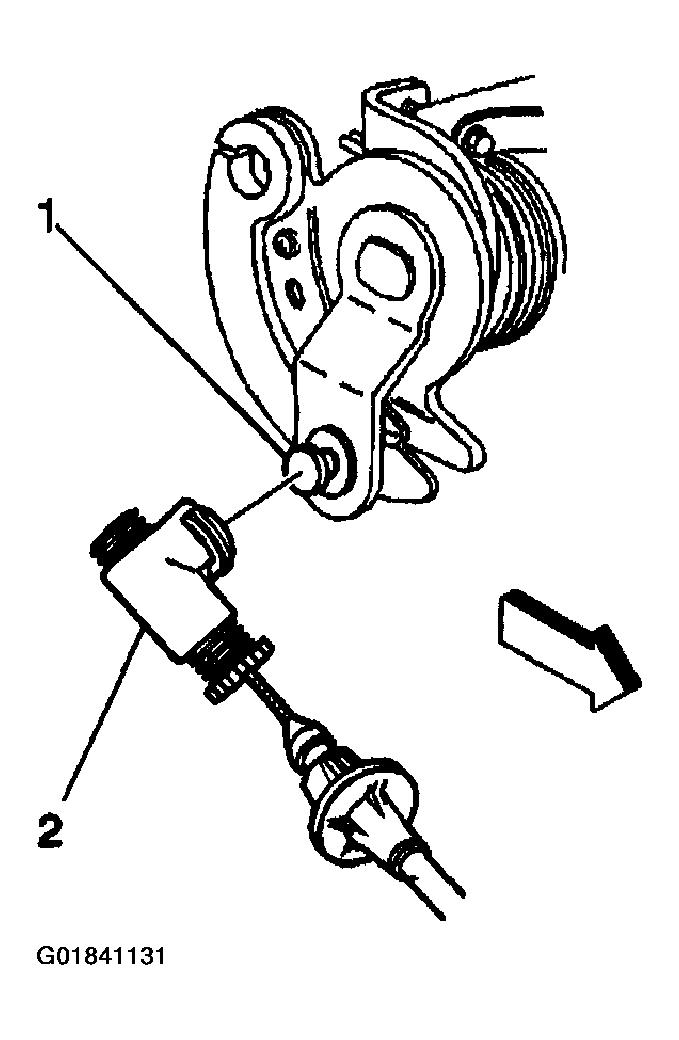

    Fig 5: Snapping Cruise Control Cable Engine-End Fitting & Throttle Cam Lever
    G01841131Courtesy of GENERAL MOTORS CORP.
  7. Connect the cruise control cable conduit fitting to the round hole in the engine cable bracket.

    Ensure that the tabs snap securely into the hole.

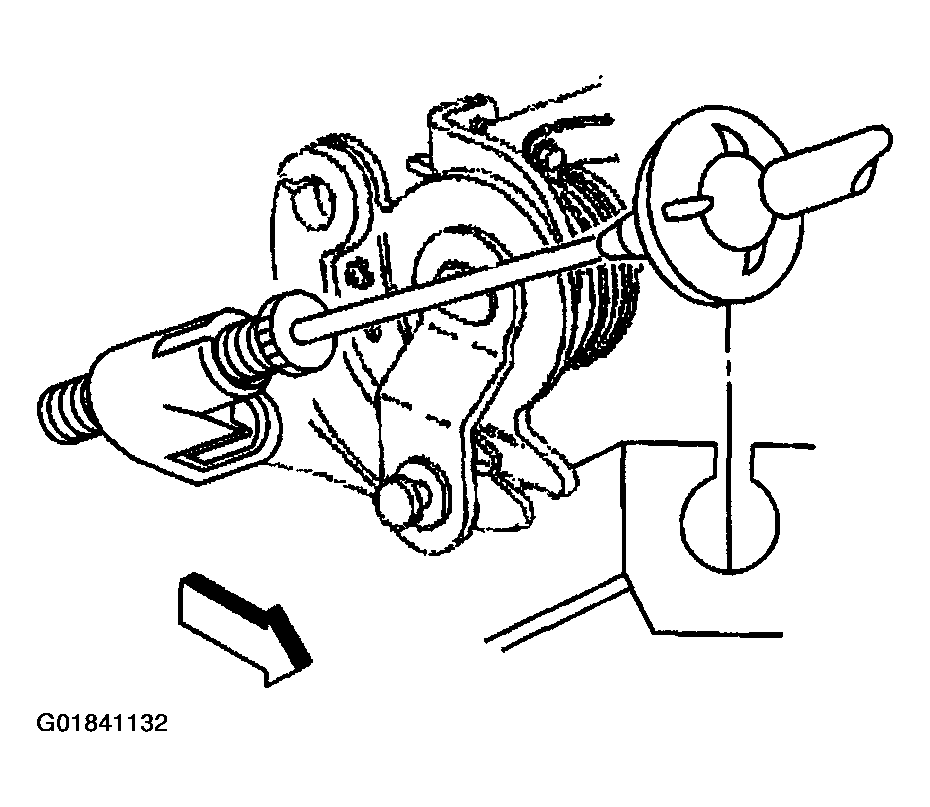

    Fig 6: Locating Cruise Control Cable & Engine Cable Bracket
    G01841132Courtesy of GENERAL MOTORS CORP.
  8. Connect the cruise control cable locator clip to the rectangular hole in the routing bracket.

    1. 8.1

      Route the cruise control cable above the accelerator cable.

    2. 8.2

      Ensure that the clip snaps securely into place.

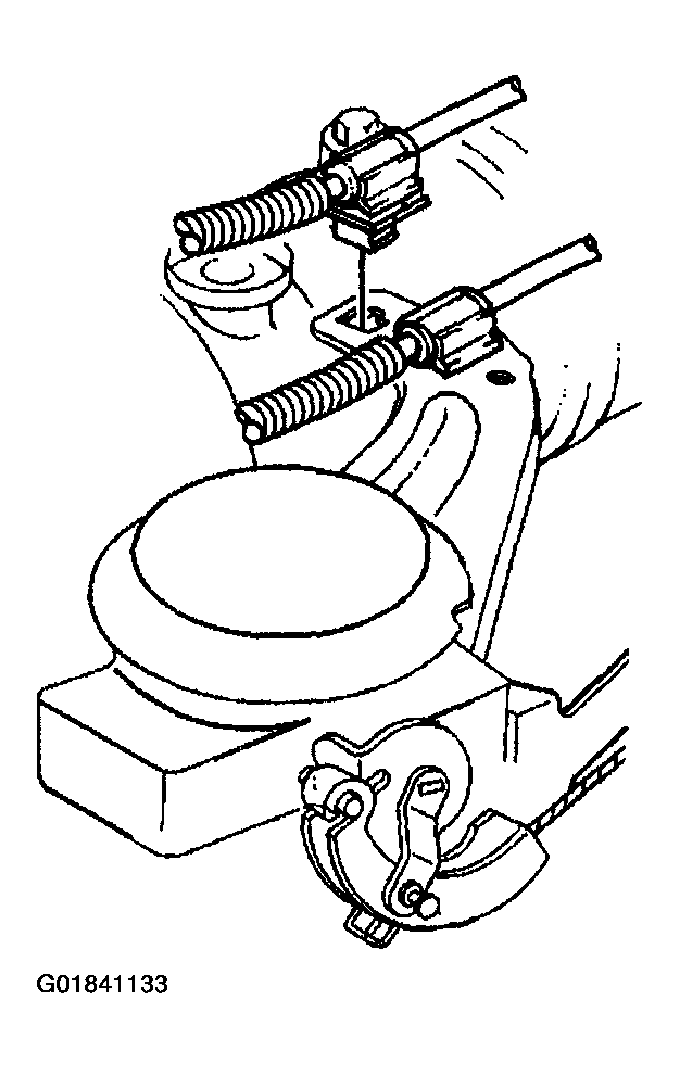

    Fig 7: Locating Cruise Control Cable Locator Clip
    G01841133Courtesy of GENERAL MOTORS CORP.
  9. Connect the electrical connection to the cruise control servo module.

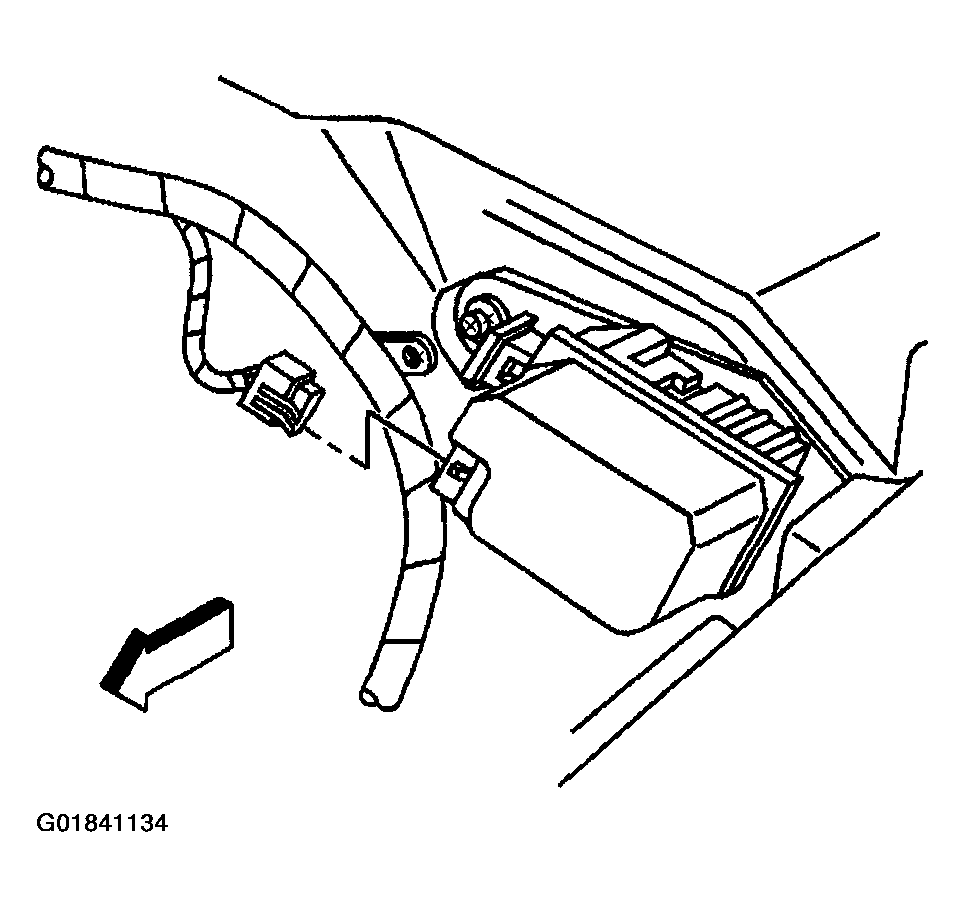

    Fig 8: Locating Cruise Control Servo Module Electrical Connector
    G01841134Courtesy of GENERAL MOTORS CORP.
  10. Test the systems operation.
  11. Perform the Cruise Control System Functional Test. Refer to DIAGNOSTIC SYSTEM CHECK - CRUISE CONTROL .
  12. Close hood.
