Removal Procedure

IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION & OPERATION for the complete operational details.

Disconnect the electrical connector from the cruise control servo module.

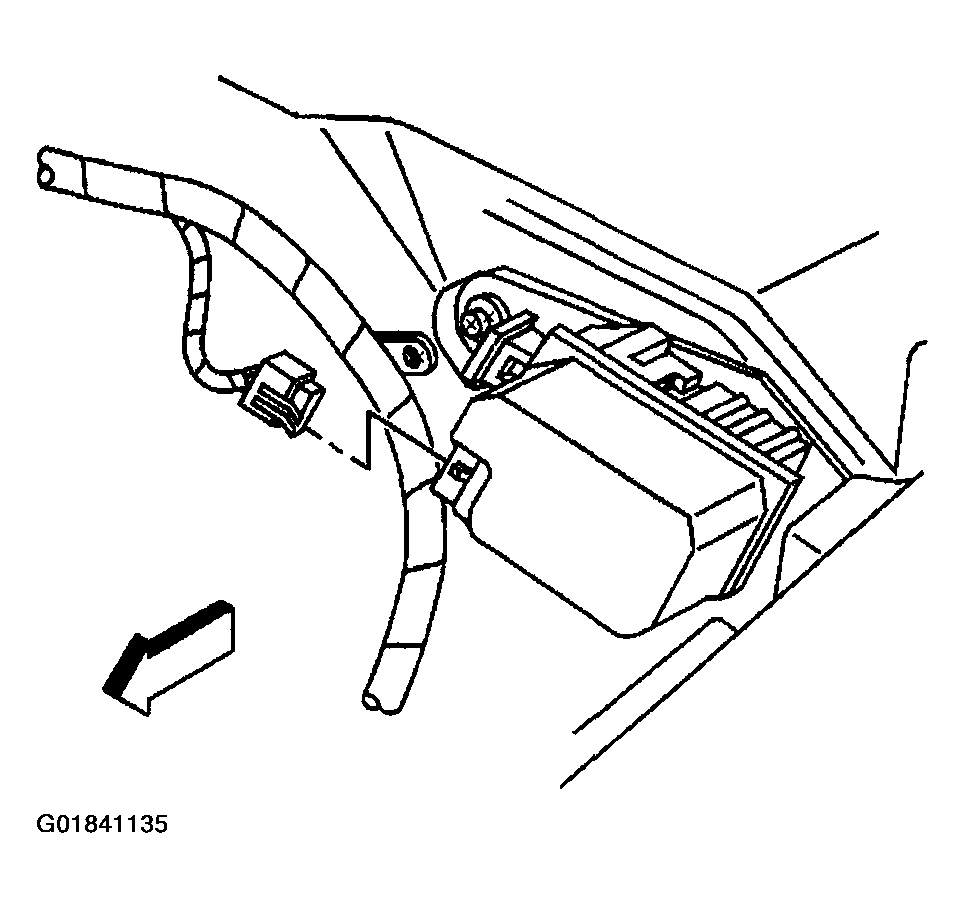

Fig 1: Locating Cruise Control Servo Module Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable engine-end fitting (1) from the slot in the engine throttle bracket.

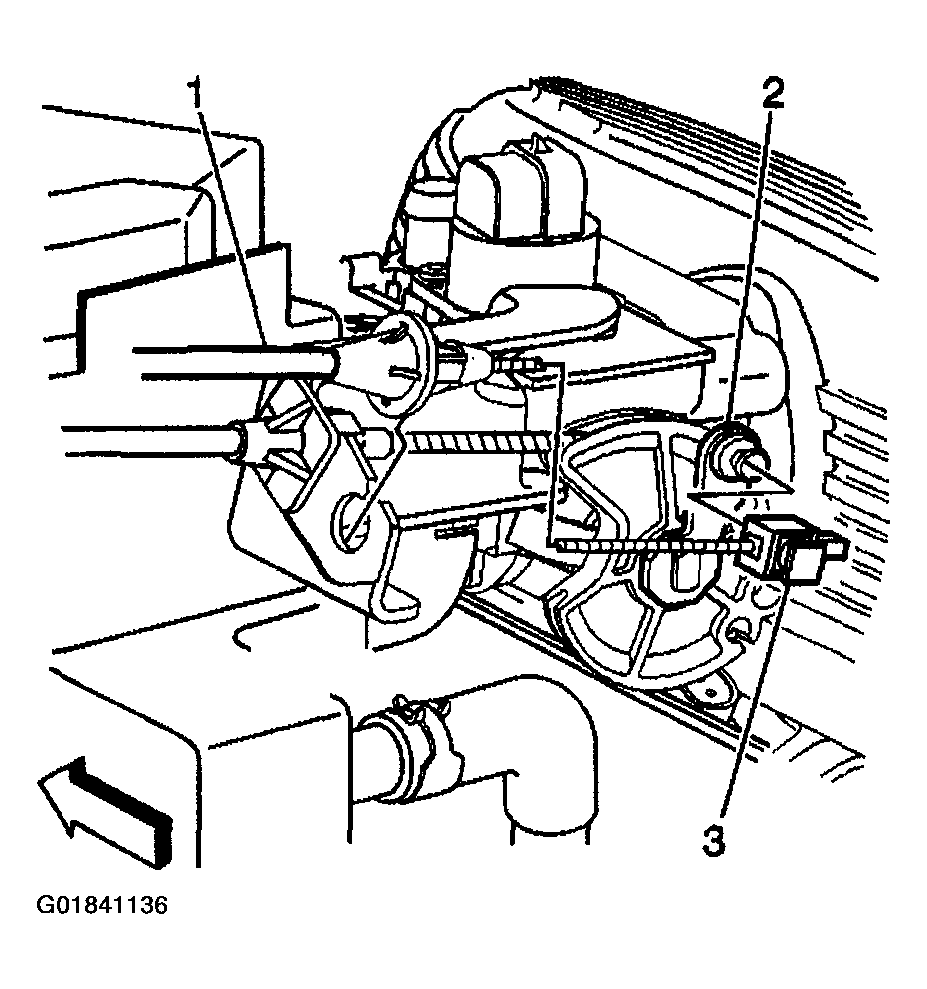

Fig 2: Locating Cruise Control Cable Engine-End Fitting & Engine Throttle Bracket
Courtesy of GENERAL MOTORS CORP.
In order to release the tension on the cruise control adjuster, rotate the cam lever. Disconnect the cruise control cable adjuster (3) from the nail head on the throttle cam lever.
Disconnect the cruise control cable fitting from the cruise control module by carefully prying out the fitting using a flat-bladed tool.

Fig 3: Positioning Cruise Control Cable Conduit
Courtesy of GENERAL MOTORS CORP.
Disconnect the cruise control cable bead from the fitting on the cruise control module ribbon.
Remove the cruise control cable from the vehicle.

Fig 4: Locating Cruise Control Cable Bead & Cruise Control Module Ribbon
Courtesy of GENERAL MOTORS CORP.
