Test Description

The number below refers to the step number on the diagnostic table.

1. 2

   Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.

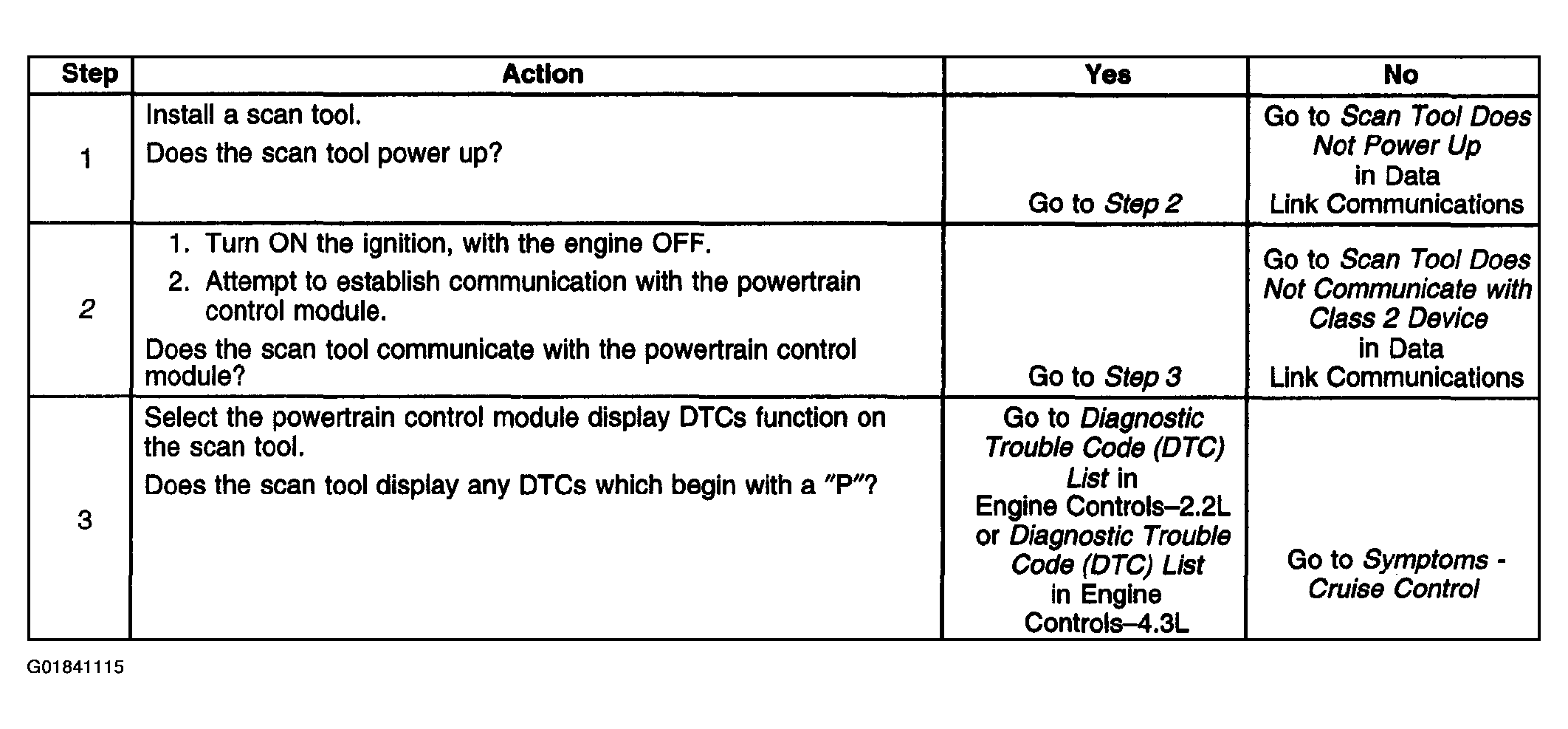

Fig 1: Diagnostic System Check Diagnostic Table - Cruise Control

Courtesy of GENERAL MOTORS CORP.
