Data Link Connector (DLC) Schematics

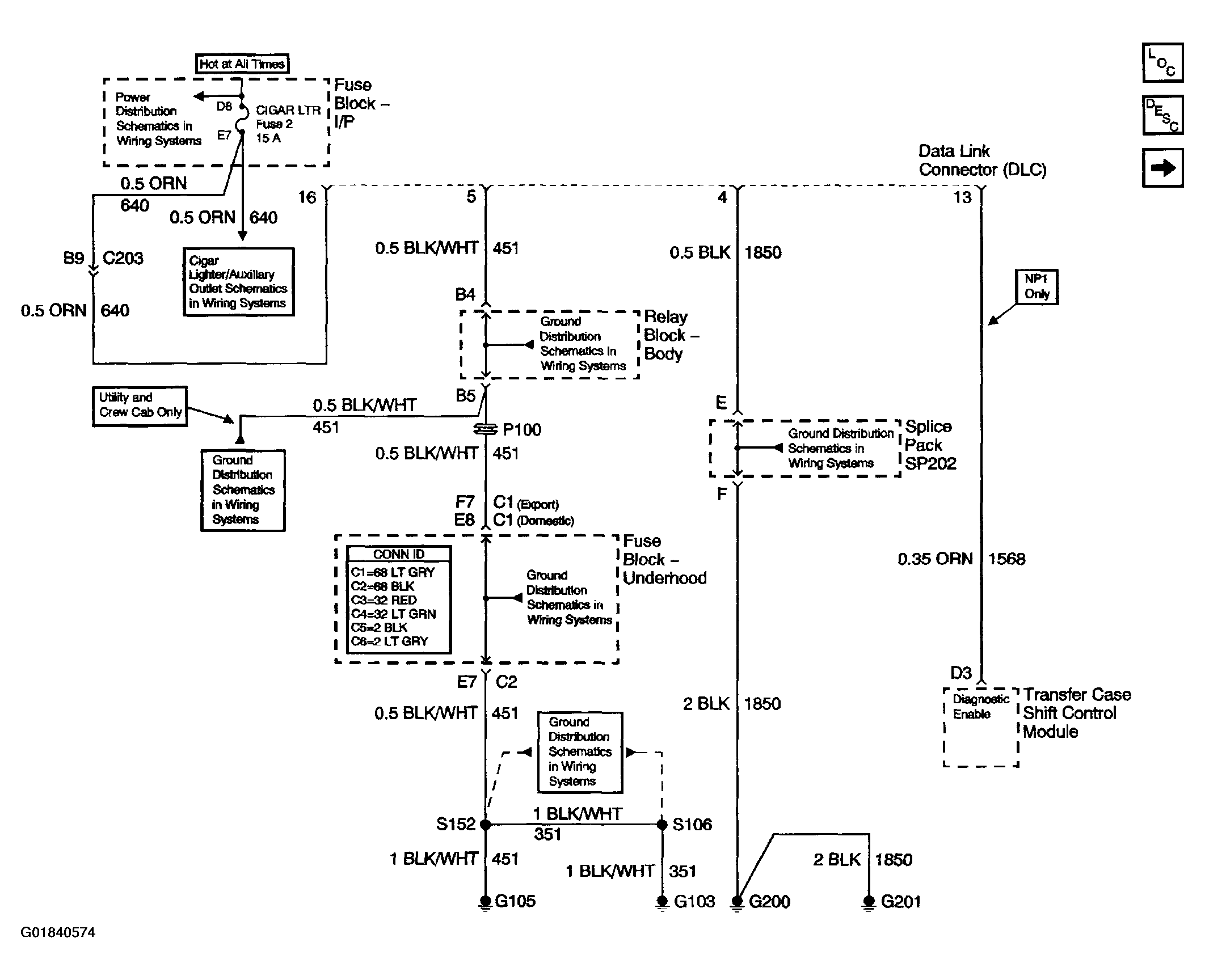

Fig 1: Data Link Connector (DLC) Schematics (Power, Ground & Transfer Case Shift Control Module)
G01840574Courtesy of GENERAL MOTORS CORP.

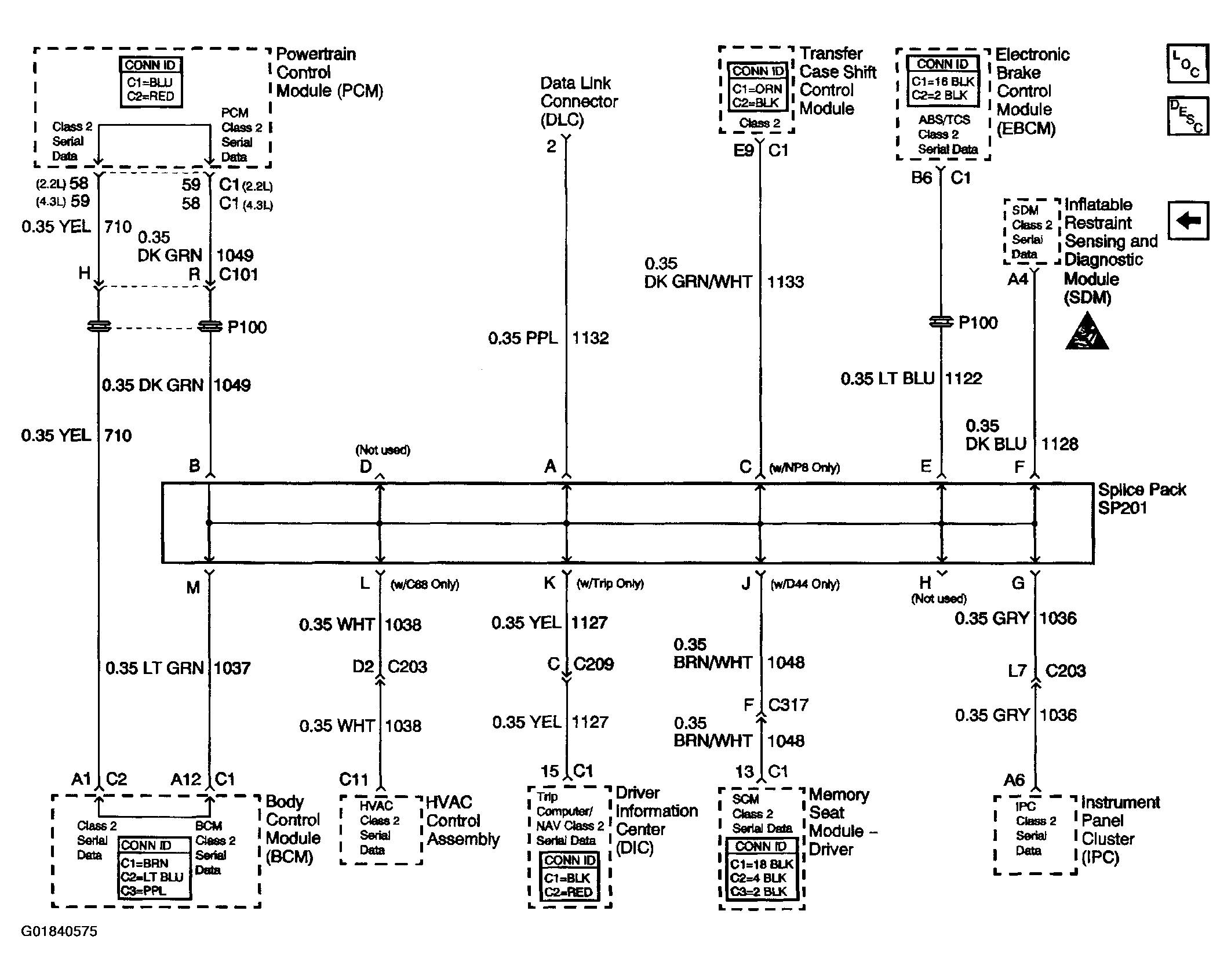

Fig 2: Data Link Connector (DLC) Schematics (SP201)
G01840575Courtesy of GENERAL MOTORS CORP.
