LEMON Manuals: Even more car manuals for everyone
Home >> Chevrolet >> 2002 >> Blazer 4D Utility, 4WD, Part Time >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Data Link Communication System >> Diagnostic Information & Procedures >> Diagnostic Starting Point - Data Link Communications

Diagnostic Starting Point - Data Link Communications

Begin the diagnosis of the Data Link Communications by performing the Diagnostic System Check for the system in which the customer concern is apparent.

The Diagnostic System Check will direct you to the correct procedure within the Data Link Communications section when a communication malfunction is present.

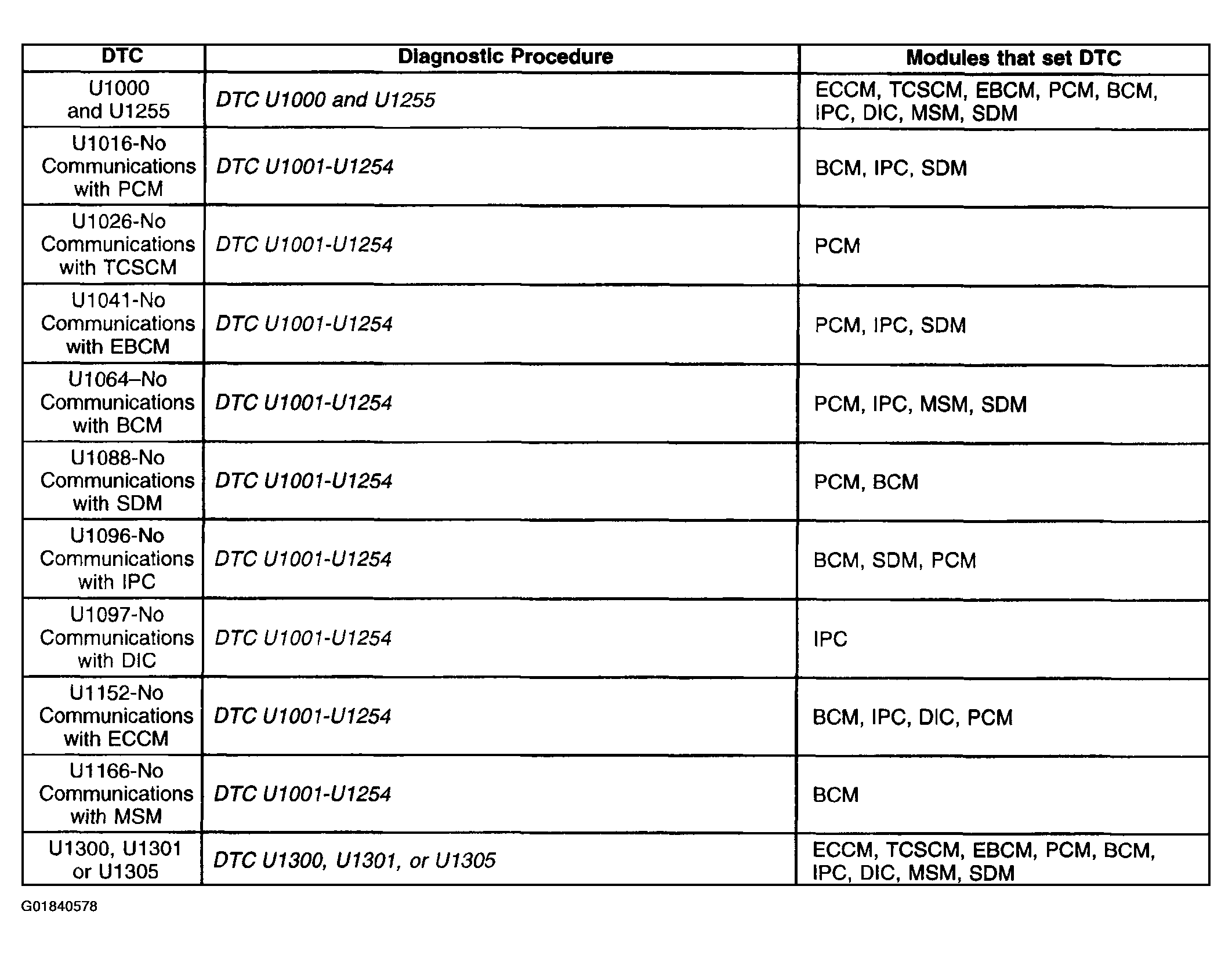

Fig 1: Diagnostic Trouble Code (DTC) List
G01840578Courtesy of GENERAL MOTORS CORP.
