Test Description

The numbers below refer to the step numbers on the diagnostic table. See Fig 1 and Fig 2 .

1. 1

   A module which loses power during an ignition cycle will cause other modules to set Lost Communication DTCs.
2. 2

   A module which loses power during an ignition cycle will cause other modules to set Lost Communication DTCs.
3. 3

   The malfunction is due to an open in the class 2 serial data circuit or an open in the module.
4. 7

   The module which was not communicating may have set Lost Communication DTCs for those modules that it was monitoring.
5. 9

   The modules which can communicate indicate the module which cannot communicate. You must clear DTC from these modules to avoid future misdiagnosis.

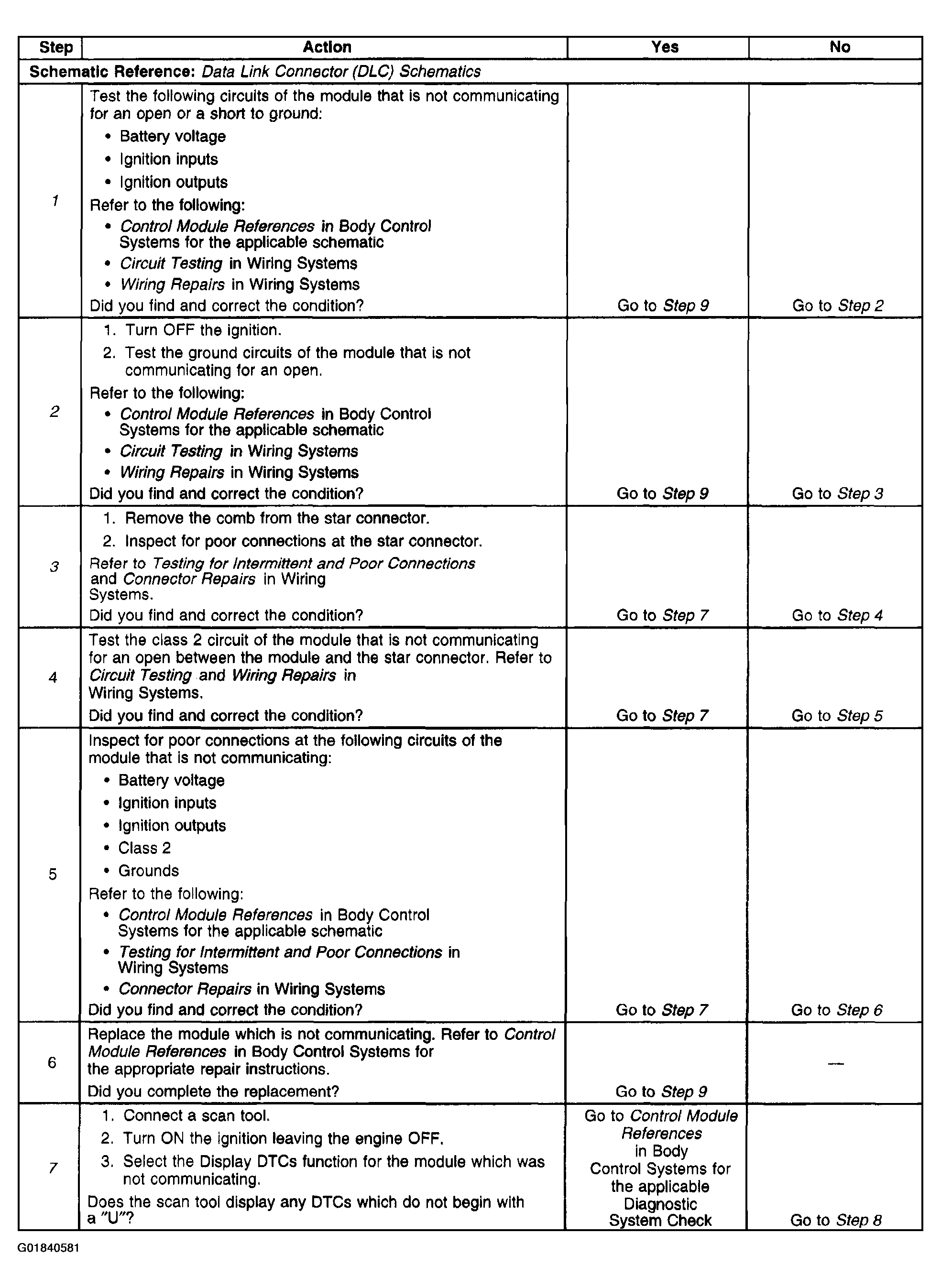

Fig 1: DTC U1001-U1254 Diagnostic Table (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

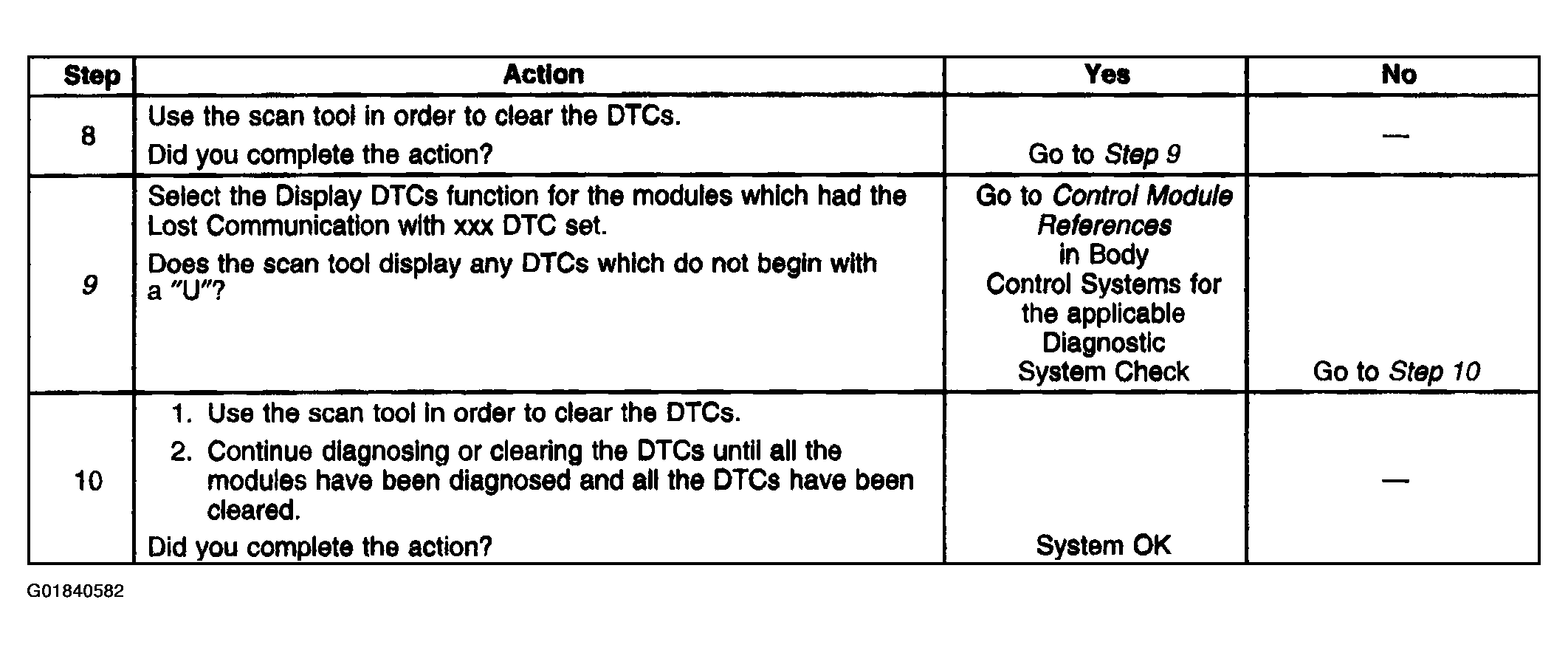

Fig 2: DTC U1001-U1254 Diagnostic Table (Steps 8-10)

Courtesy of GENERAL MOTORS CORP.
