Chevrolet
>>
2002
>>
Blazer 4D Utility, 4WD, Part Time
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control System
>>
Diagnostic Information & Procedures
>>
Diagnostic Starting Point - Body Control System
>>
Scan Tool Data List
Scan Tool Data List

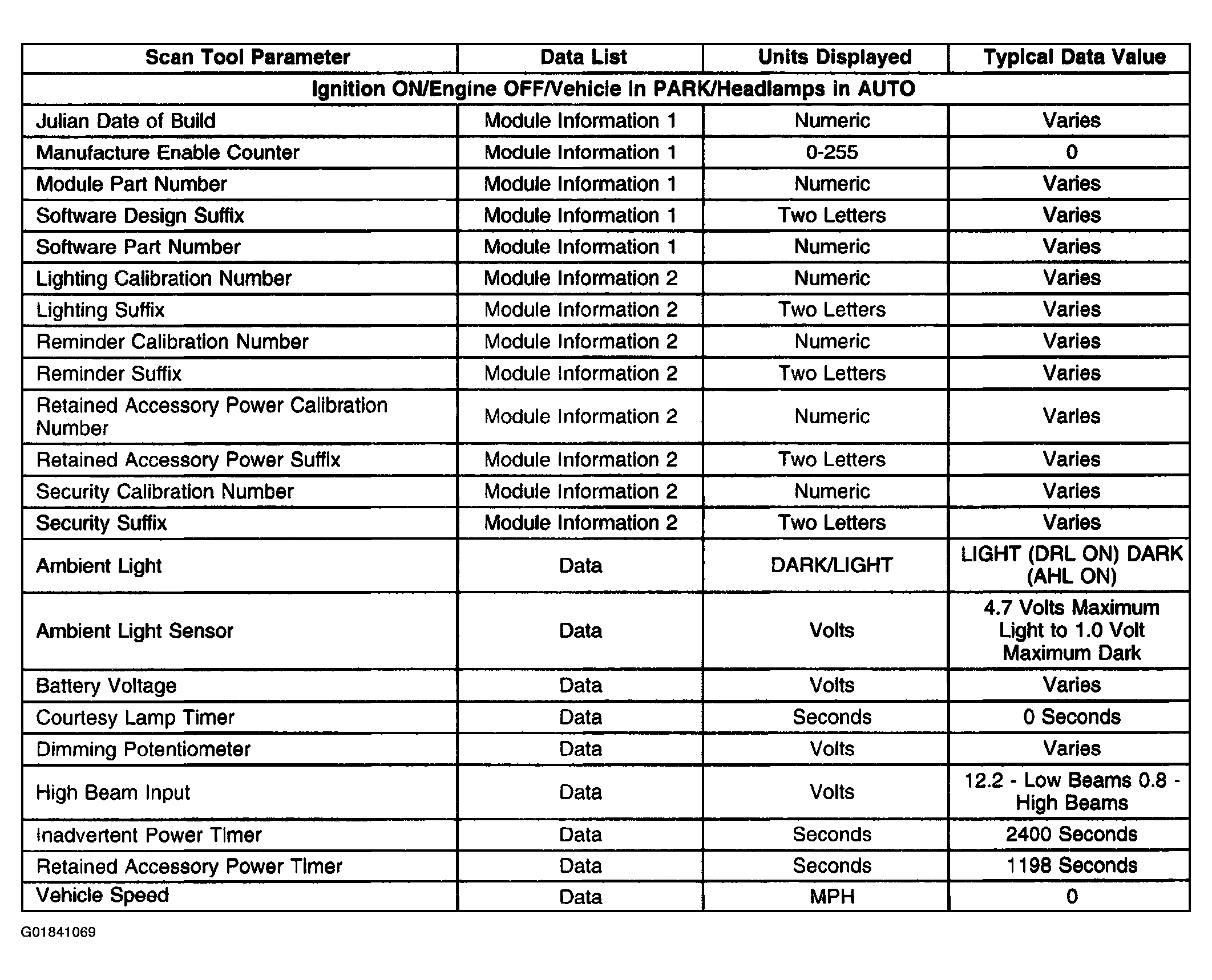

Fig 1: Scan Tool Data List (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

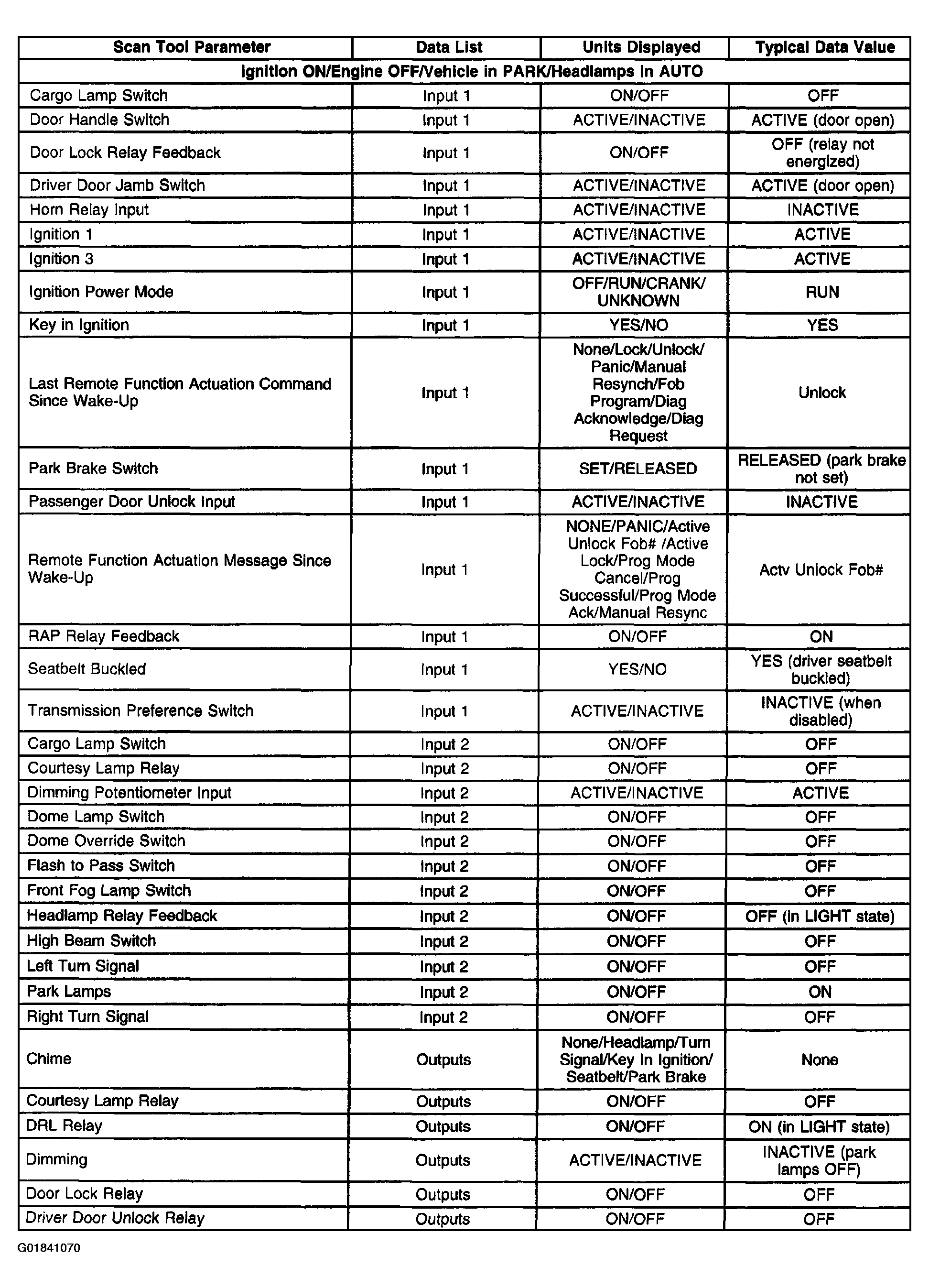

Fig 2: Scan Tool Data List (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

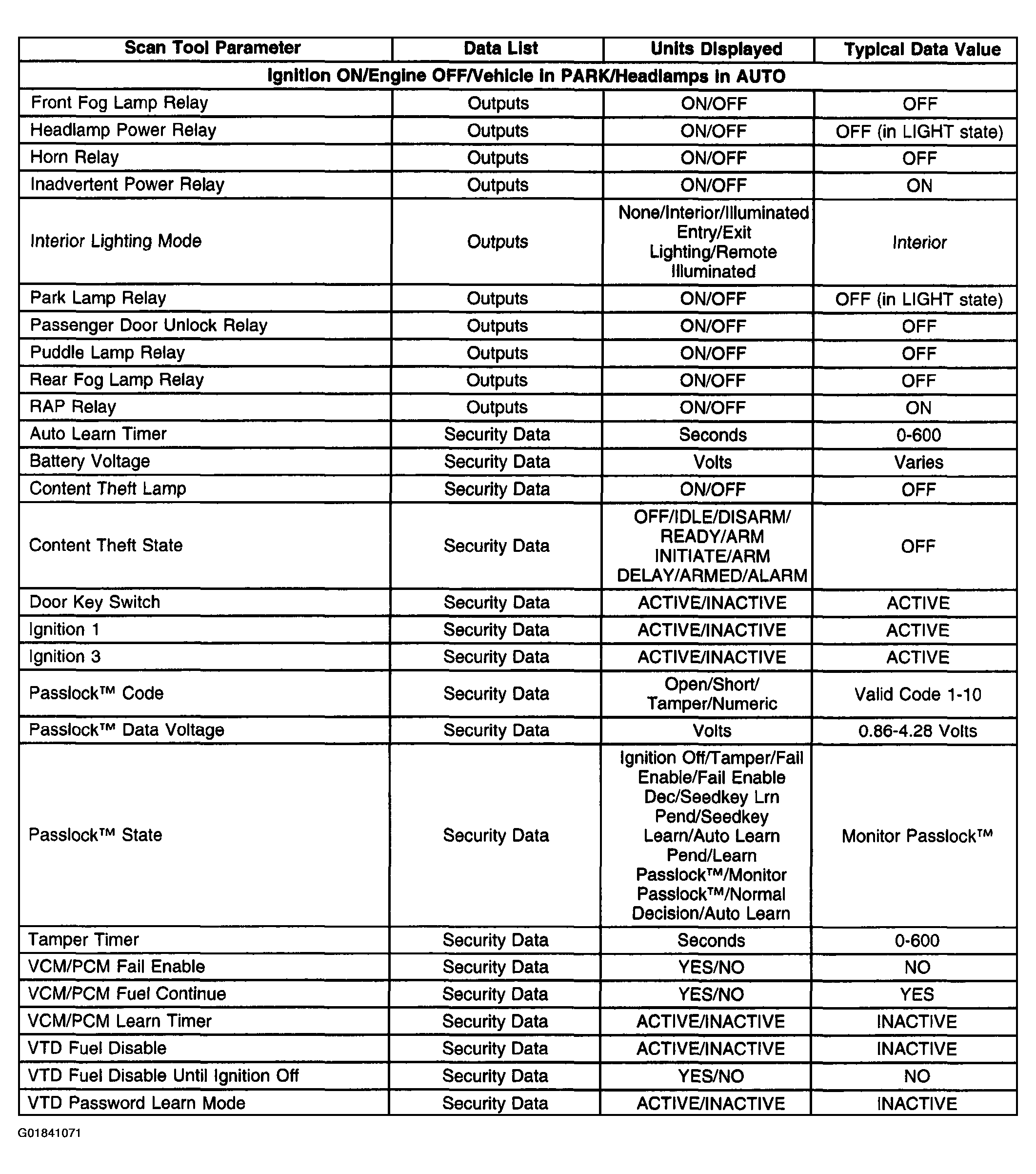

Fig 3: Scan Tool Data List (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
