Schematic and Routing Diagrams

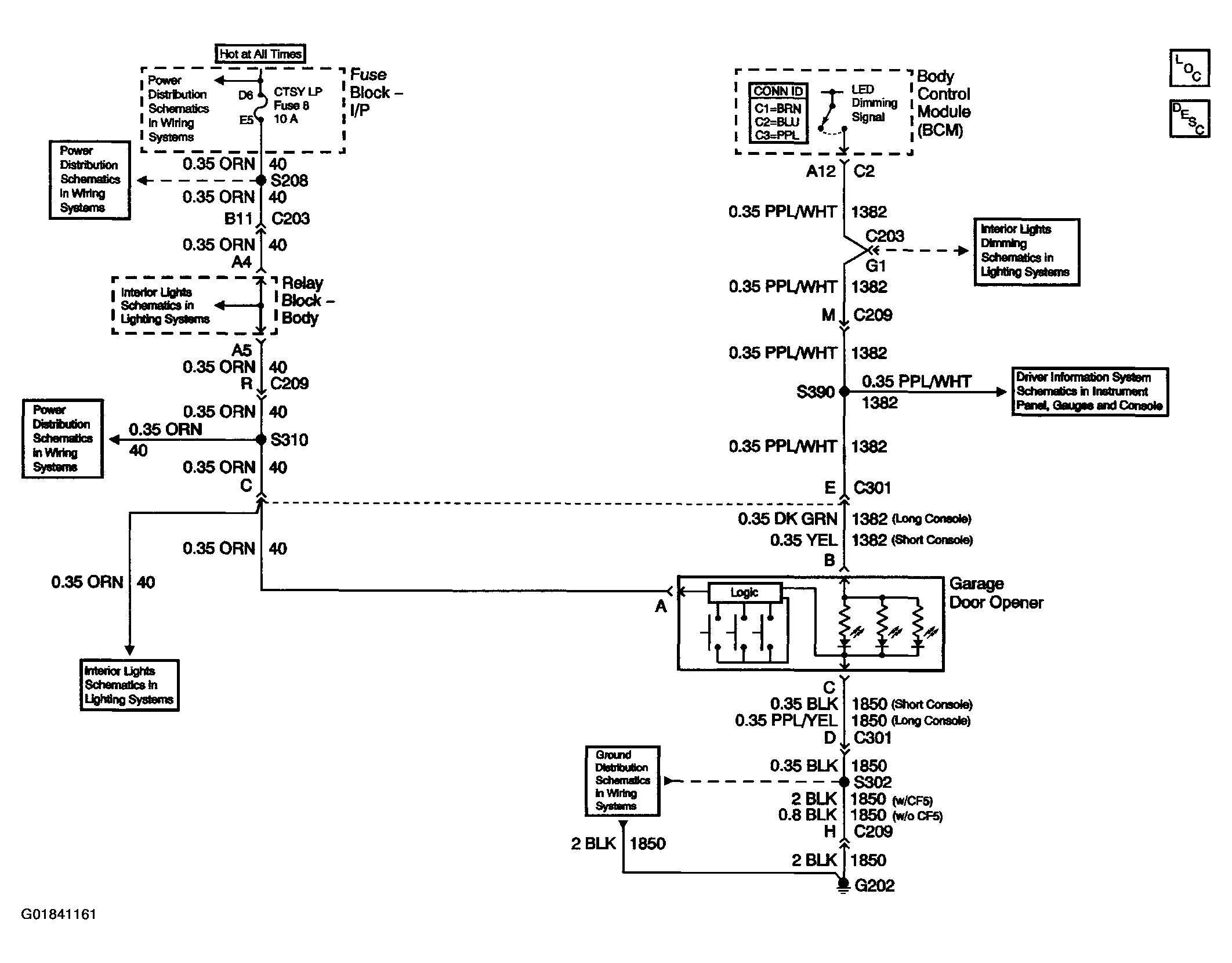

Fig 1: Garage Door Opener Schematics

G01841161

Courtesy of GENERAL MOTORS CORP.
