Truck Zoning

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that corresponds to where they are located in the vehicle. The following table explains the numbering system.

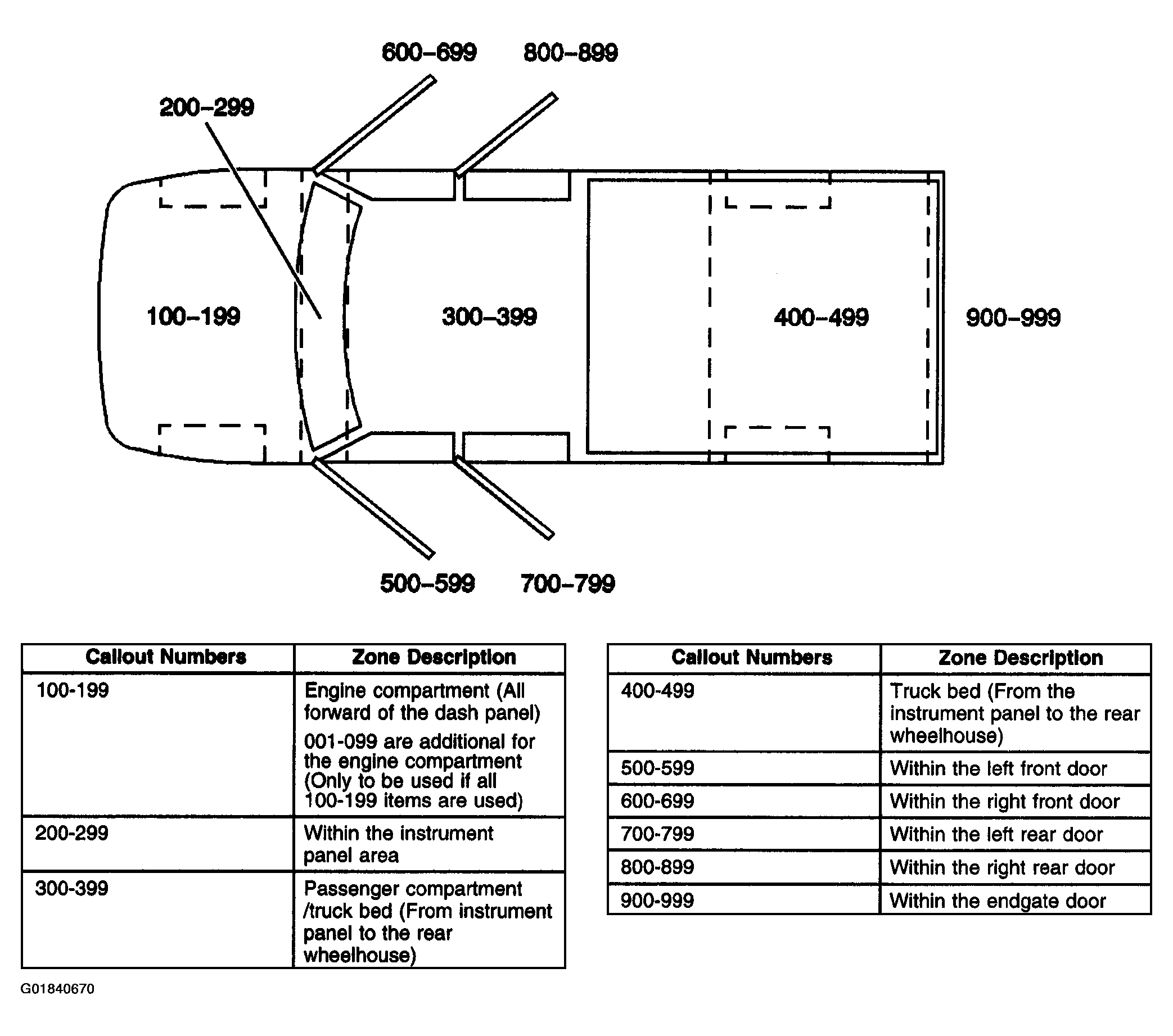

Fig 1: Truck Zone Numbering System
G01840670Courtesy of GENERAL MOTORS CORP.
