Removal Procedure

  1. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY .
  2. Remove the screws from the instrument panel cluster.
  3. Disconnect the electrical connector from the instrument panel cluster.
  4. Remove the instrument panel cluster from the instrument panel.

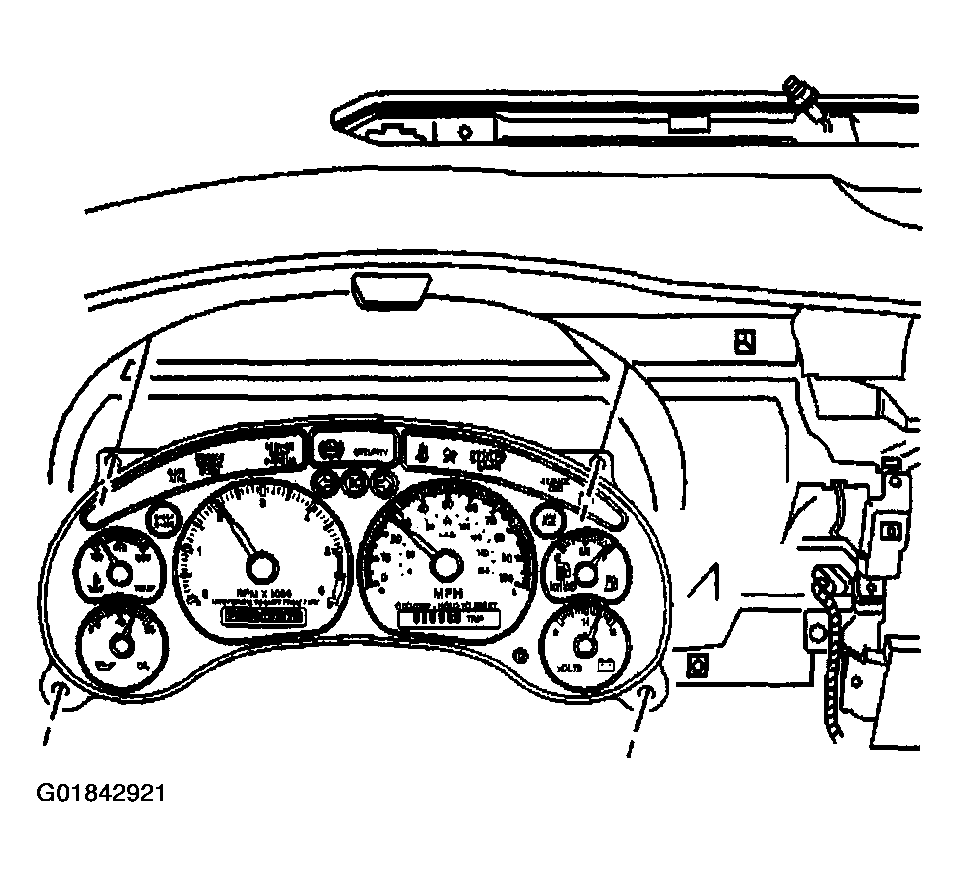

    Fig 1: Locating Instrument Panel Cluster
    G01842921Courtesy of GENERAL MOTORS CORP.
