Exterior Lights Schematics
>>
Park/Turn Signal Lamps, Marker Lamps & Turn Signal Fuses (Front)
Park/Turn Signal Lamps, Marker Lamps & Turn Signal Fuses (Front)

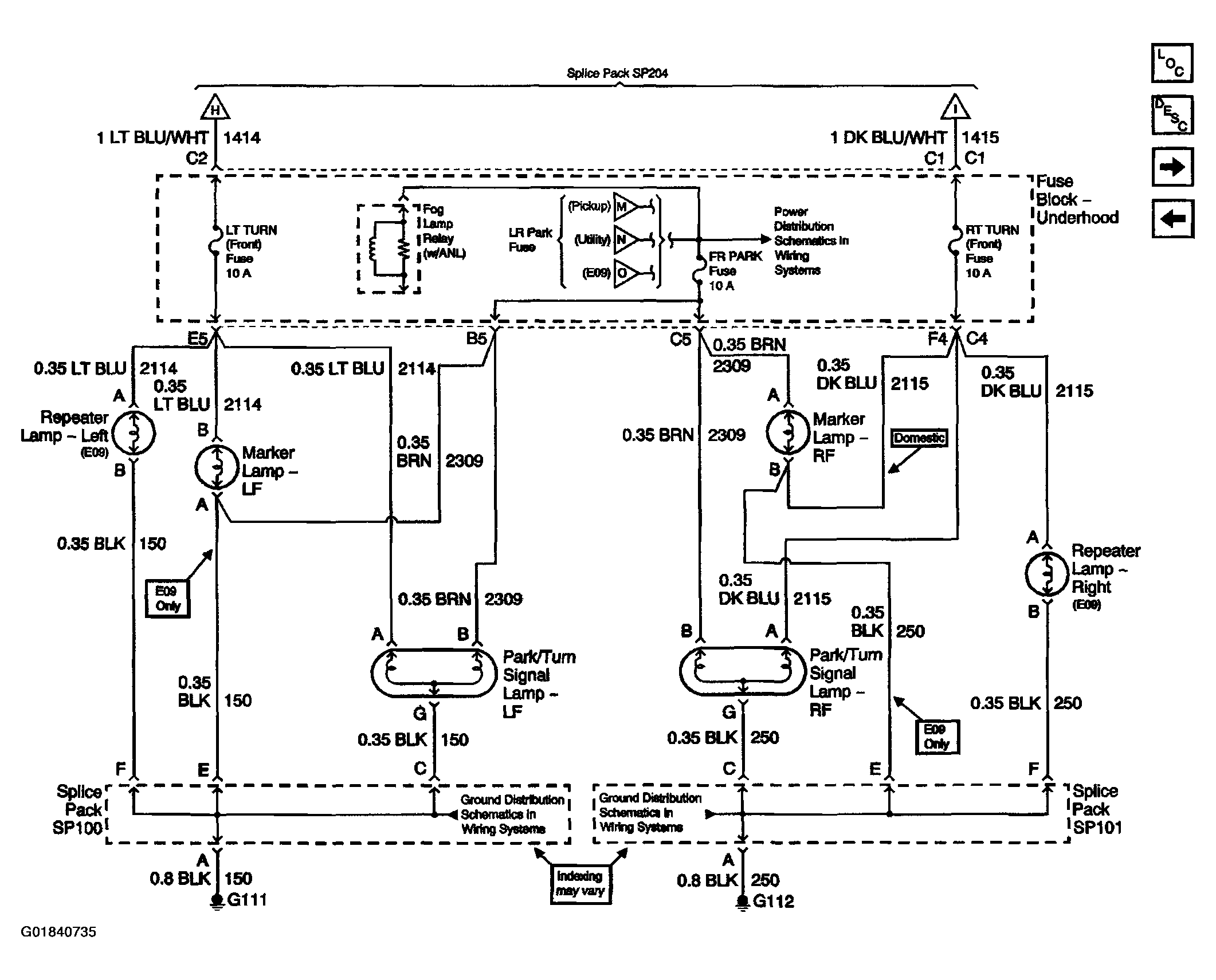

Fig 1: Exterior Lights Schematics - Park/Turn Signal Lamps, Marker Lamps & Turn Signal Fuses (Front)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
