Tail, Marker & License Lamps Inoperative

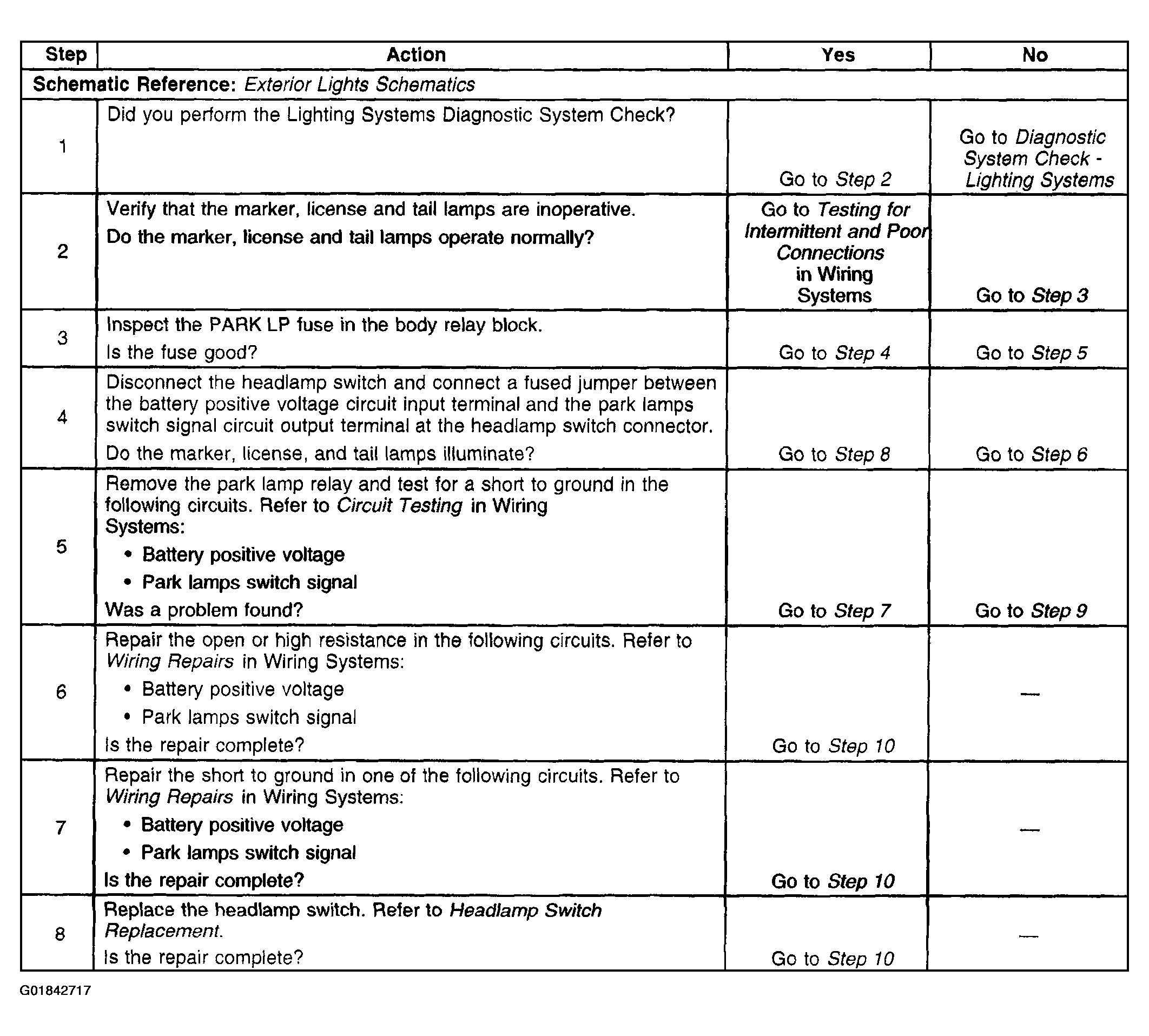

Fig 1: Tail, Marker & License Lamps Inoperative (Steps 1-8)
G01842717Courtesy of GENERAL MOTORS CORP.

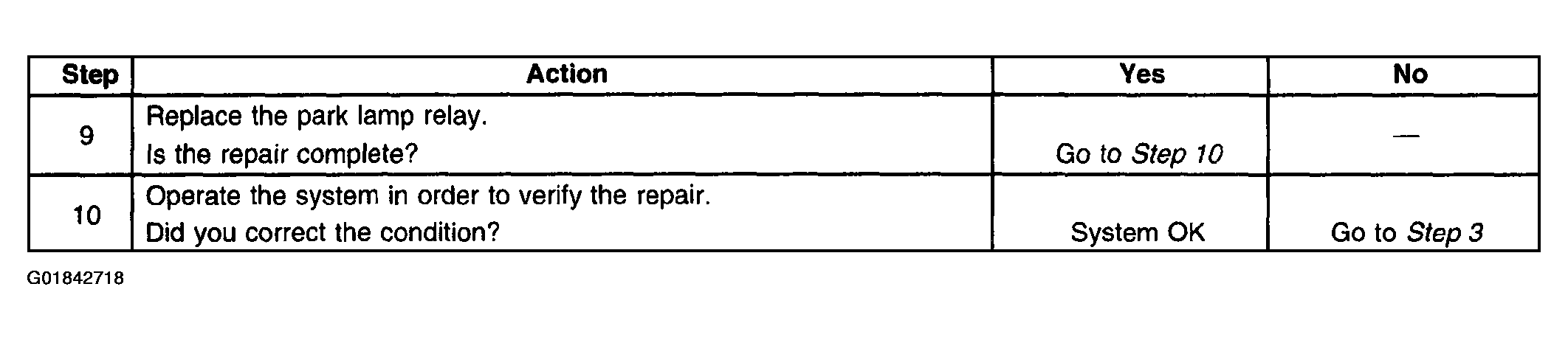

Fig 2: Tail, Marker & License Lamps Inoperative (Steps 9-10)
G01842718Courtesy of GENERAL MOTORS CORP.
