Tail, Marker & License Lamps Always On

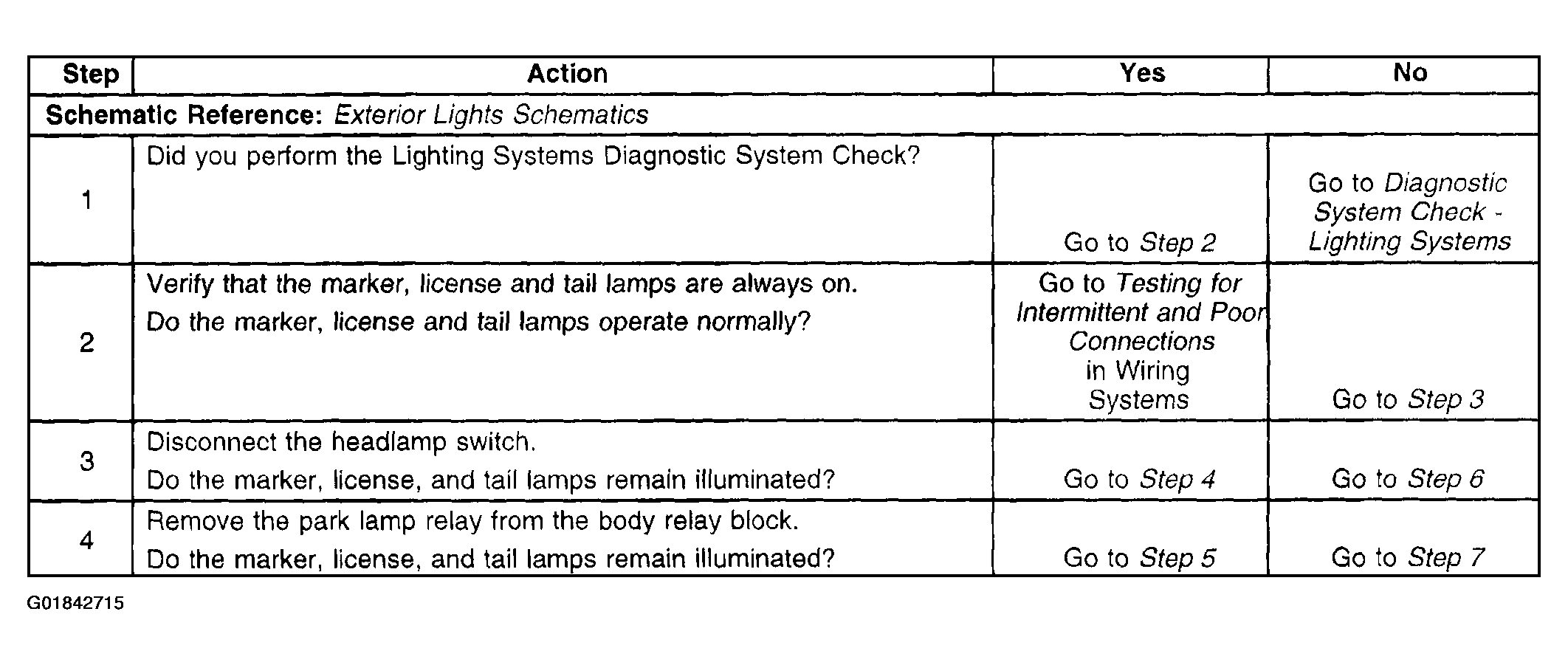

Fig 1: Tail, Marker & License Lamps Always On (Steps 1-4)
G01842715Courtesy of GENERAL MOTORS CORP.

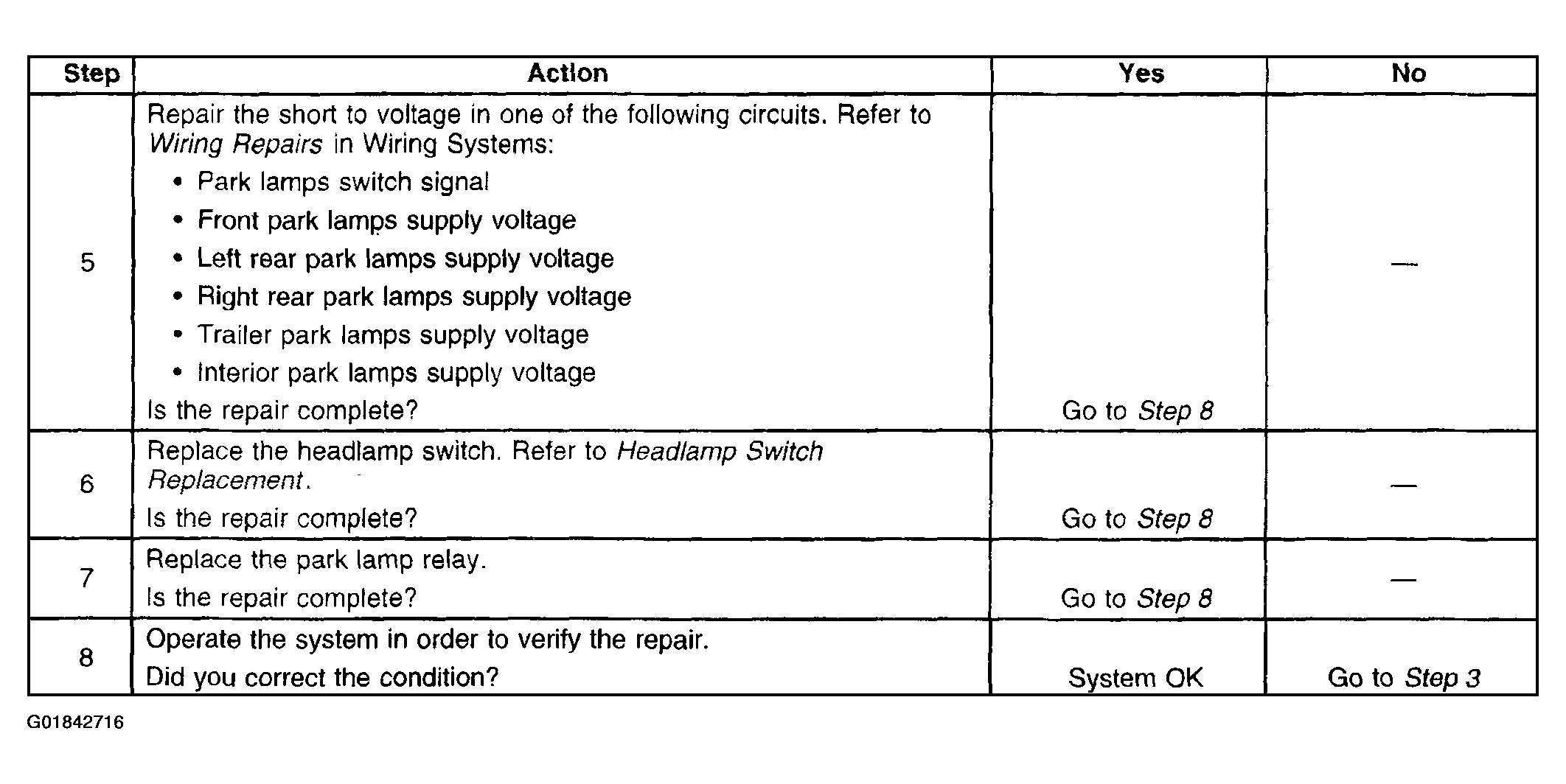

Fig 2: Tail, Marker & License Lamps Always On (Steps 5-8)
G01842716Courtesy of GENERAL MOTORS CORP.
