Fog Lamps Inoperative

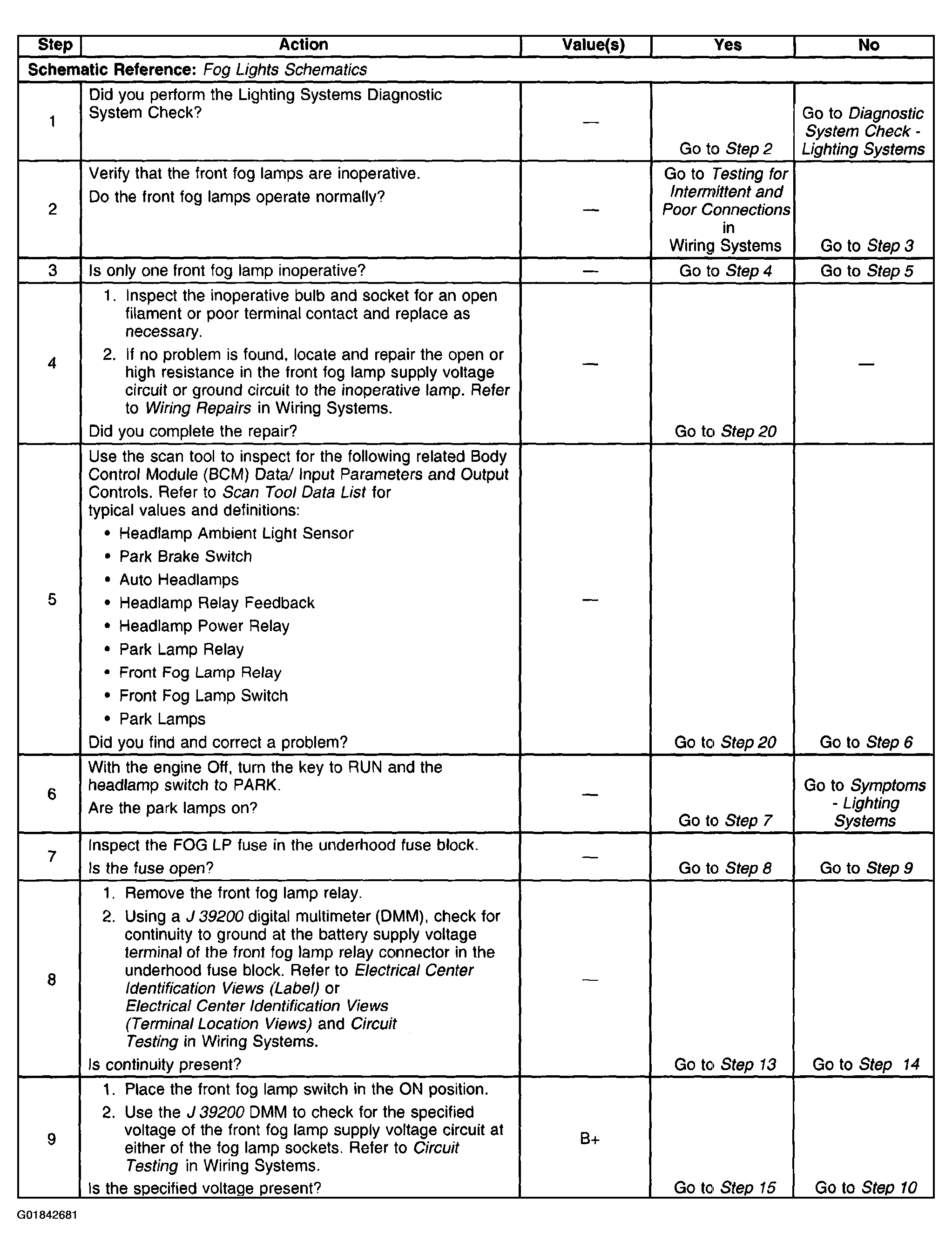

Fig 1: Fog Lamps Inoperative (Steps 1-9)

G01842681

Courtesy of GENERAL MOTORS CORP.

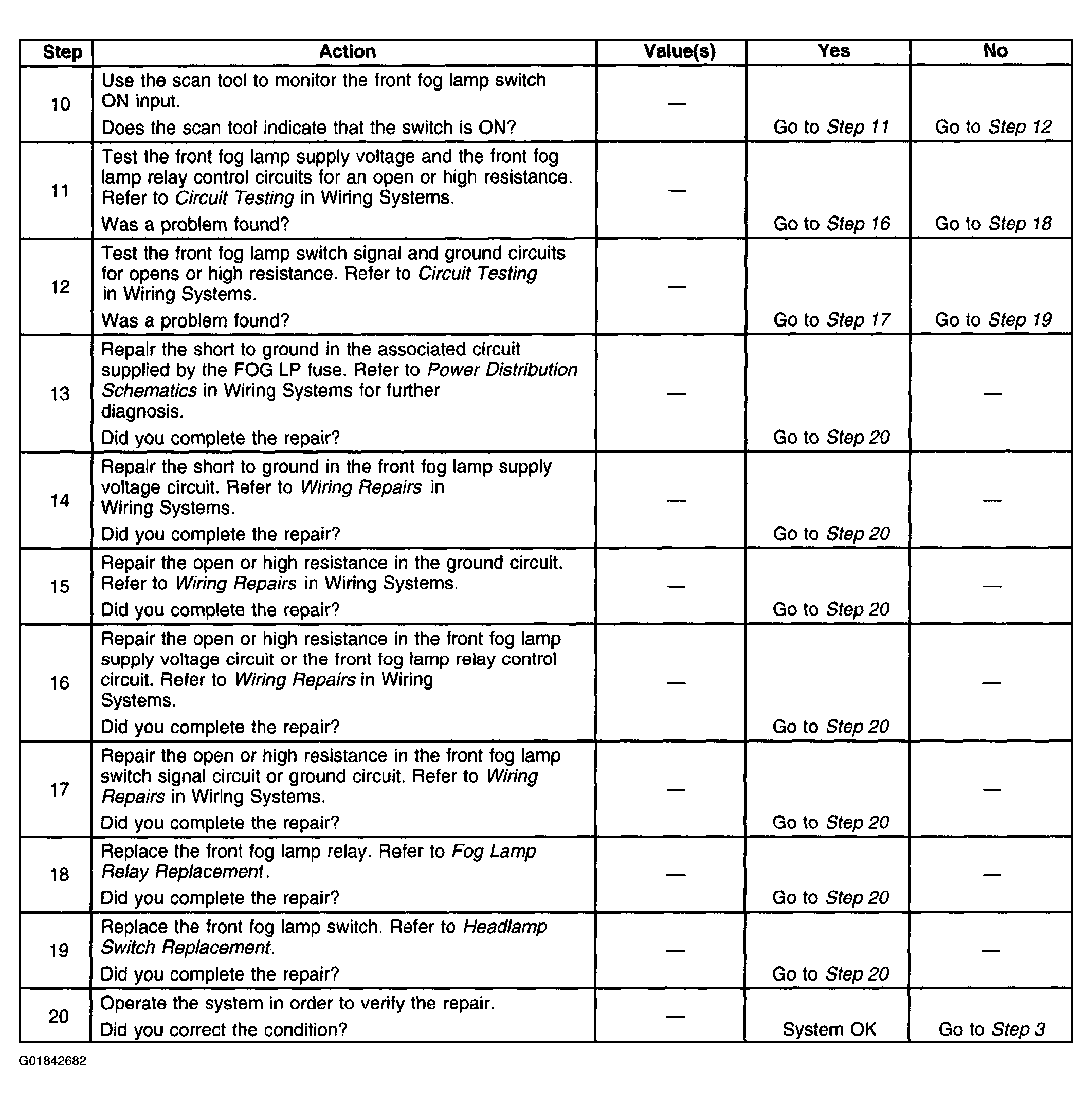

Fig 2: Fog Lamps Inoperative (Steps 10-20)

G01842682

Courtesy of GENERAL MOTORS CORP.
