Turn Signal Cancel Cam & Bearing Thrust Washer - Disassemble - Off Vehicle

Tools Required

• J 23653-SIR  Steering Column Lock Plate Compressor
• J 42137  Steering Column Lock Plate Compressor Adapter

1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

   Important:  Let the inflatable restraint steering wheel module coil assembly hang freely after removal.

2. Remove the inflatable restraint steering wheel d module coil assembly. Refer to Inflatable Restraint Steering Wheel Module Coil - Disassemble - Off Vehicle  .
3. Compress the shaft lock shield assembly (2) using J 23653-SIR and J 42137.

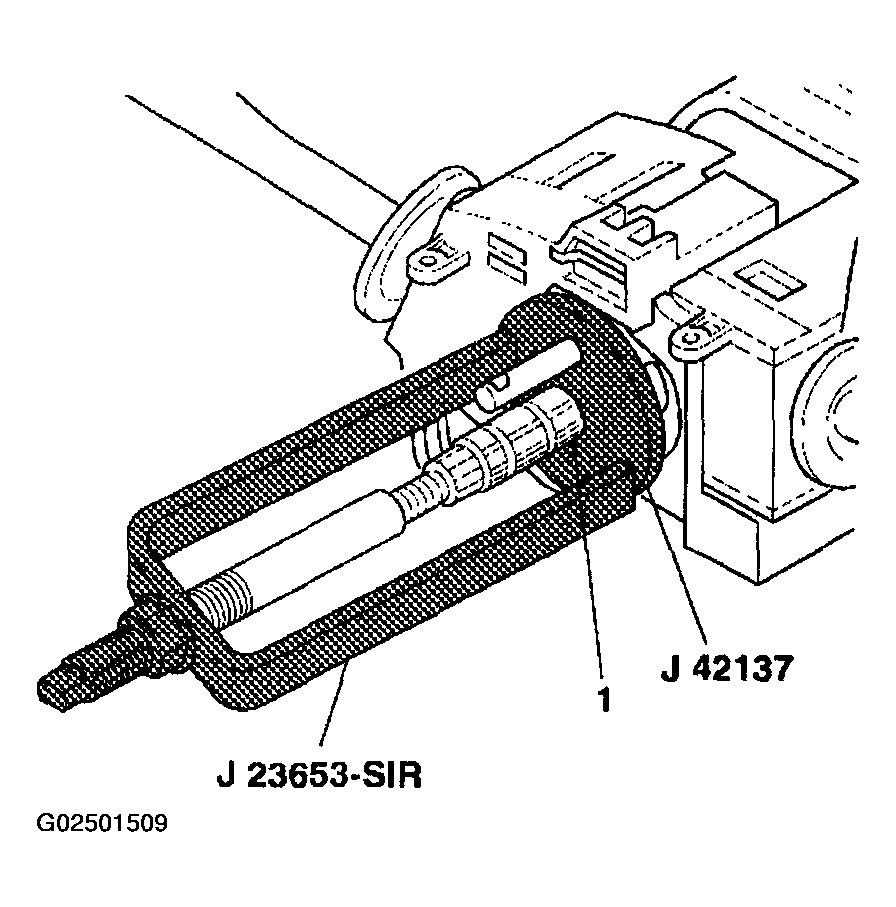

Fig 1: Compressing Shaft Lock Shield Assembly
Courtesy of GENERAL MOTORS CORP.
4. Remove the bearing retainer (1) from the steering shaft assembly.
5. Discard the bearing retainer.
6. Remove J 23653-SIR  and J 42137  from the steering shaft assembly.
7. Remove the following parts from the steering shaft assembly:
   1. The shaft lock shield assembly (4).
   2. The turn signal cancel cam assembly (3).
   3. The upper bearing spring (2).
   4. The thrust washer (1).

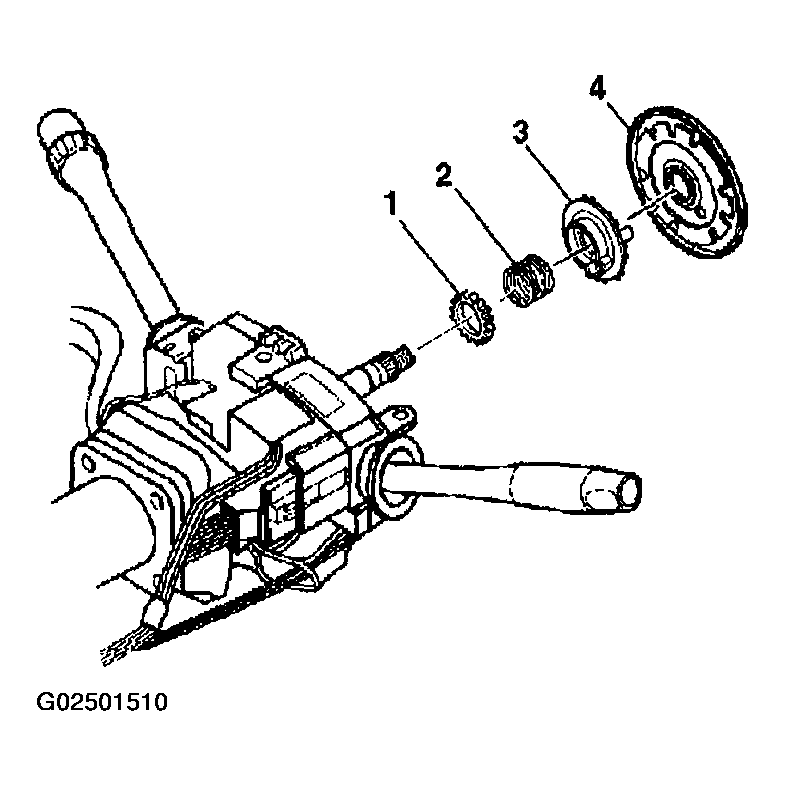

   Fig 2: Identifying Shaft Lock Shield Assembly, Turn Signal Cancel Cam Assembly, Upper Bearing Spring & Thrust Washer

   Courtesy of GENERAL MOTORS CORP.
