Turn Signal & Multifunction Switch Assembly - Assemble - Off Vehicle

  1. Install the turn signal and multifunction switch assembly.

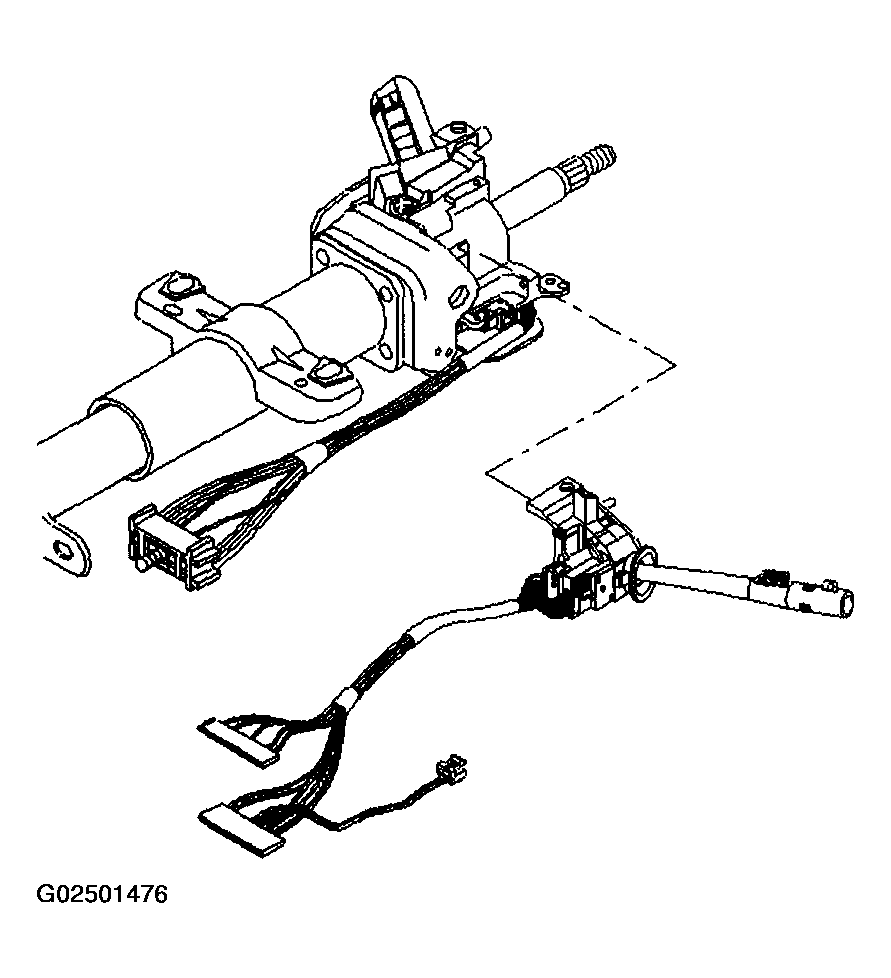

    Fig 1: Identifying Turn Signal & Multifunction Switch Assembly
    G02501476Courtesy of GENERAL MOTORS CORP.
  2. Install the 2 pan head tapping screws. Tighten the screws to 7 N.m (62 lb in).
  3. Slide the 2 connectors (2) onto the bulk head connector (1).
  4. Install the wire harness strap (2) into the steering column tilt head assembly (1).
  5. Install the wire harness straps (3) onto the wire harness assembly (4).
  6. Install the wire harness assembly (4) into the wire harness strap (5).
  7. Install the upper and lower trim covers.
  8. Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
