Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Use 3M Weatherstrip adhesive or an equivalent in order to install the weatherstrip to the right door.

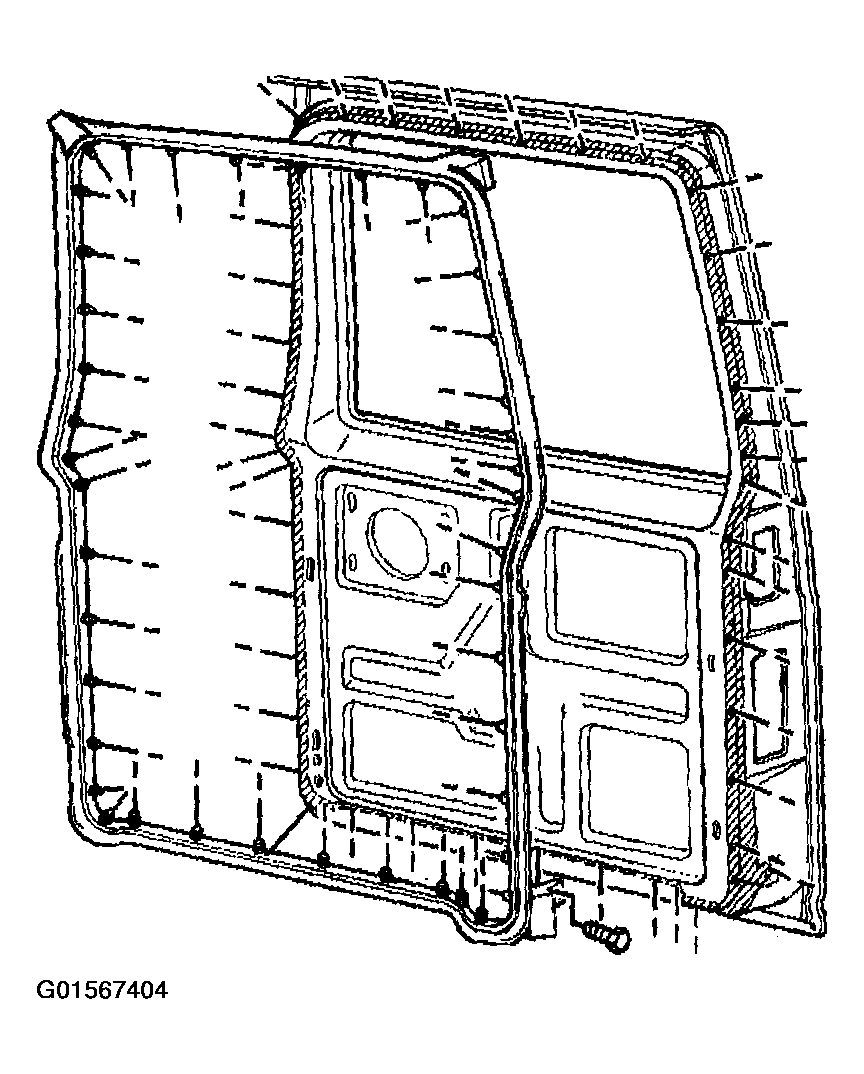

Fig 1: Installing Rear Right Door Weatherstrip (Cargo Doors)
Courtesy of GENERAL MOTORS CORP.
Use 3M Weatherstrip adhesive or an equivalent in order to install the weatherstrip (3) to the left door.
Install the plastic retainers (2) into place. Push the retainers into place until the retainers are fully seated.

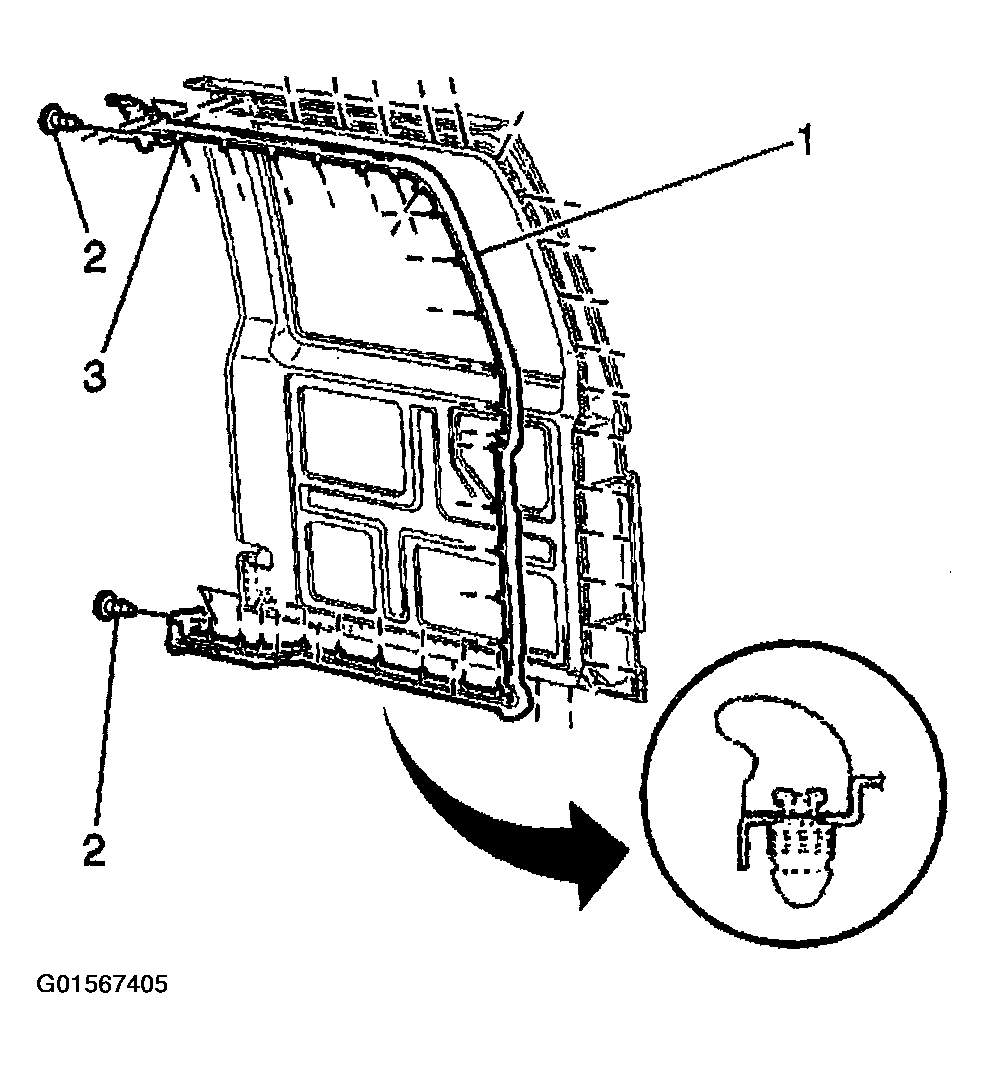

Fig 2: Installing Rear Left Door Weatherstrip (Cargo Doors)
Courtesy of GENERAL MOTORS CORP.
