Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the trim panel screws.

    Tighten

    Tighten the trim panel screws to 2 N.m (18 lb in).

  3. Install the window garnish molding. Refer to WINDOW GARNISH MOLDING REPLACEMENT .

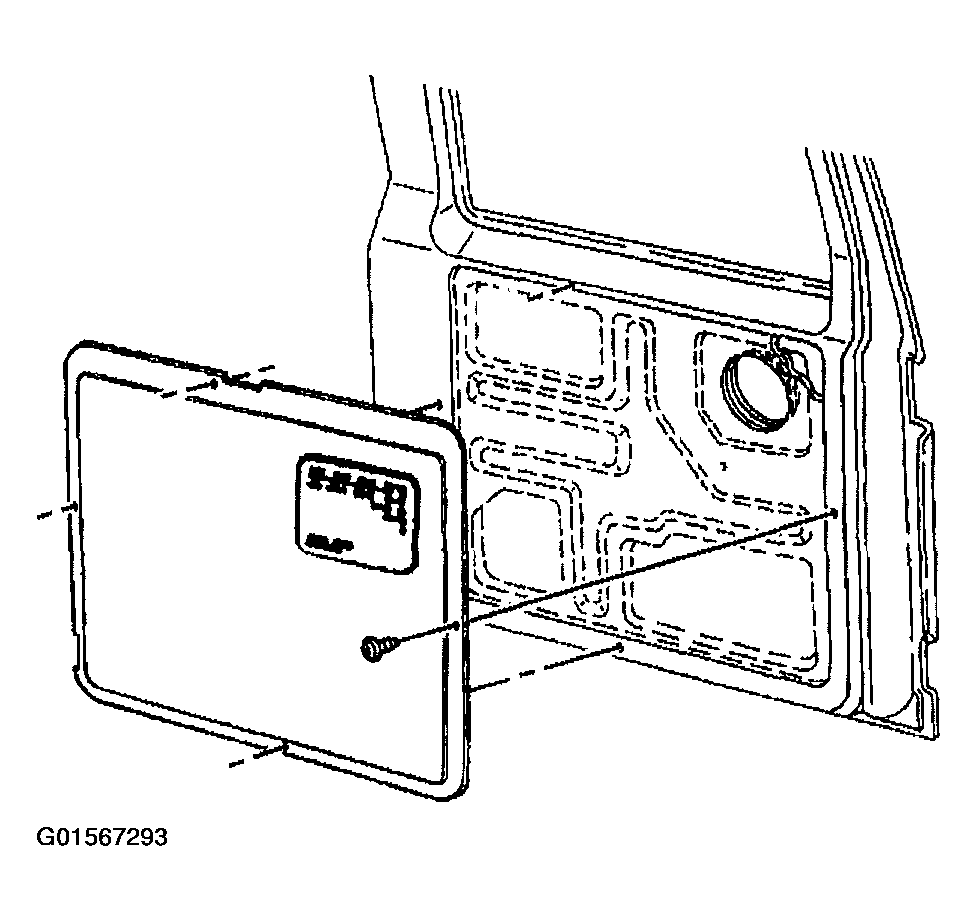

    Fig 1: Installing Trim Panel Screws
    G01567293Courtesy of GENERAL MOTORS CORP.
